Application Materials:

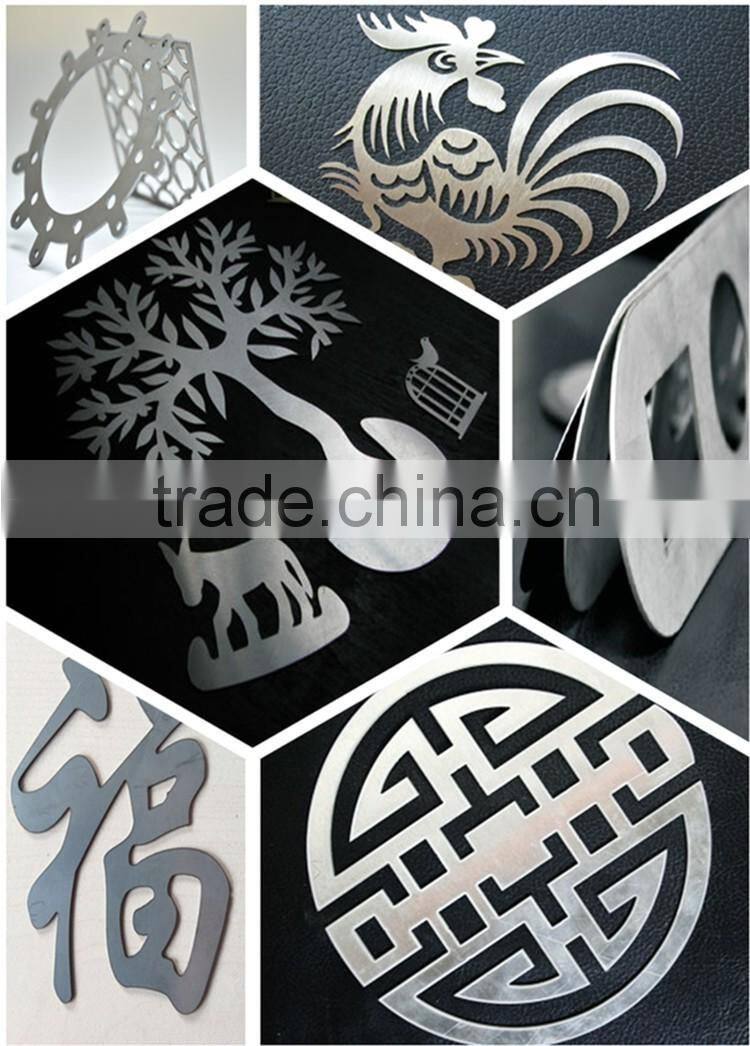

Stainless Steel,Mild Steel,Carbon Steel,Alloy Steel,Spring steel,Iron Plate, Galvanized Iron,aluminum plate and tube,etc (It is first choice for cutting all kinds of metal sheets and metal pipes)
Cutting speed and thickness:
Material | Thickness(mm) | Speed(mm/s) |
Stainless Steel | 0.5 | >200 |
1 | 90~120 | |
2 | 16~20 | |
Carbon Steel | 1 | 120~150 |
2 | 35~45 | |
3 | 15~18 |

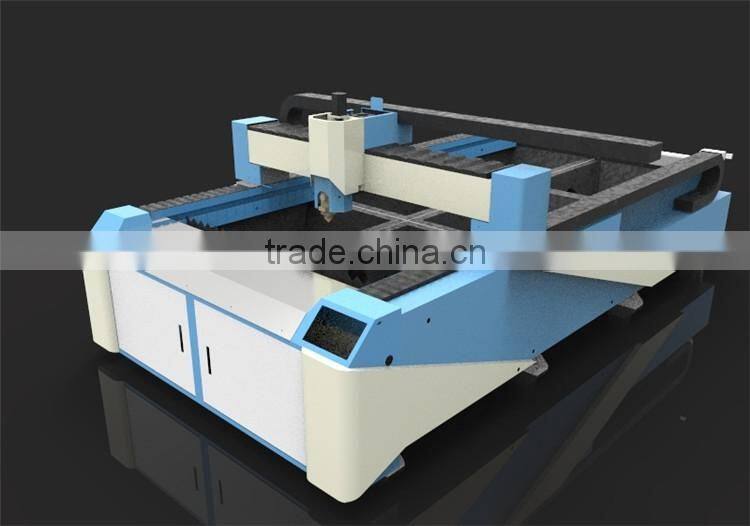

New design 200w 500w metal fiber laser cutting machine is mainly for cutting thin metal, such as, stainless steel, carbon steel, steel tube, etc. As we know fiber laser is stable, so it is a good choice for cutting metal. Also the fiber laser machine price is reasonable and cost-effective. Thus, is very popular nowadays.
# Working area: 1300*2500mm
# Laser power Fiber 200w MAX laser
# Shunxin laser cutting head
# Cooling system: water chiller
# air compressor
# Red point, auto focus, follow-up system
# X axis Y axis HIWIN linear square rail from Taiwan
# TBI Ball screw from Taiwan
# YASKAWA Servo motor and drivers from Japan
# Imported Lenses and mirror
# controller: cypcut
# software: cypcut
# supports format: DXF,DXP, NC, G, etc
# 380V/ 50HZ
Technicial Parameters
No. | paprameter | FB-1325E |
1 | Max working area | 1300X2500mm |
2 | X axis | 1350mm |
3 | Y axis | 2550mm |
4 | Z axis | 150mm |
5 | XY reposition accuracy | -0.02--+0.01mm |
6 | Table height | 750mm |
7 | Max speed | 1500mm/s |
8 | Machine weight | 1800 KG |
9 | Control system | CYPCUT |
10 | Power supply | 3P 380V 50HZ |
11 | Machine size | 3700X1900X1600mm |
12 | Driver motor | Yaskawa servo motor and driver |
13 | rail | Taiwan HIWIN XYZ20 |
14 | Water chiller power | 1.1KW |
15 | Air compressor | 5.5KW |
16 | generator | 200W Chuangxin |
17 | Laser beam | 1080nm |
18 | Total cost power | 11.3KW |
19 | Ocupation area | 3700X1900mm |
20 | laser head | Shunxin laser head |
Series Model:
1. 1325 fiber laser (cutting area:2500X1300mm)
2. 1530 fiber laser (cutting area:3000X1500mm)

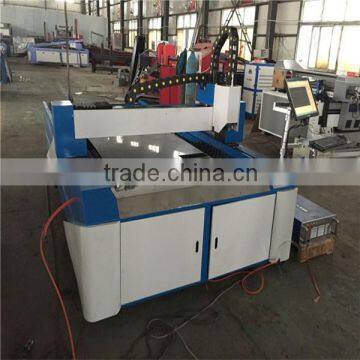

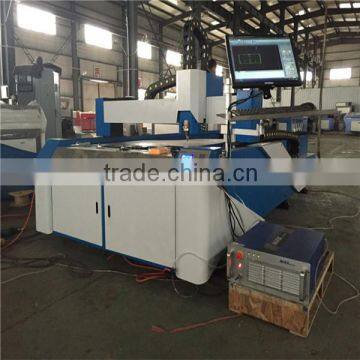

Machine parts pictures
The metal laser cutting machine laser head is from Shunxin brand, the controller and software is cypcut.
The generator is from MAX, China good brand, and motor is Yaskawa servo motor and driver imported from Japan.
Maintenance of lens
1 Use Tool: Long fiber cotton, ethanol,
2 Cleaning methods
1). Ethanol is sprayed onto the cotton.
2). Left thumb and index finger gently pinch the side edge of the lens (Note that the fingers can not touch the surface of the lens to avoid any scratch )
3). Facing the lens directly, right hand Grab cotton stick, gently wipe from the bottom or from left to right in a single direction Lens, can not wipe back and forth, to avoid secondary pollution lens), confirm back and front side to be cleaned,can not stay the under cleaners, cotton, foreign materials and contaminants)

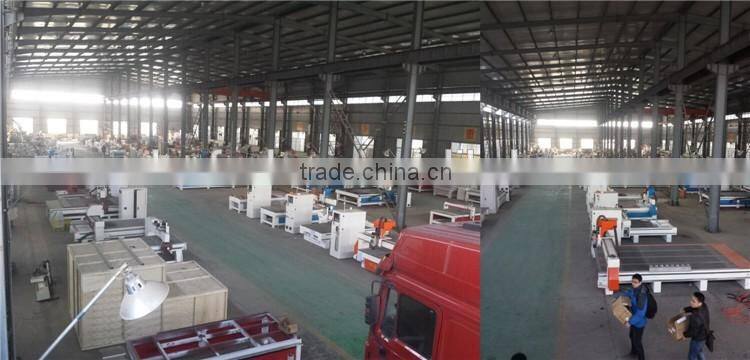

PHILICAM GROUP RUOFEN is a professional CNC machine manufacturer, which owns more than 30,000 square meters warehouse for cnc router, cnc laser machine.We have a professional sale team and engineer team with more than 10 years experience. The high quality machines and good service has earned us good reputation in world market.
Our main products are One heads CNC router, 3 heads CNC router, ATC, auto feeding loading and unloading CNC router, PTP, and fiber laser cutting machine, 200w,300w,500w,750w, 100w,etc; and also laser marking machine. PHILICAM Group-Ruofen is always your best choice!
Customers in our factory:
# Warranty: 12 months.
# Prats for replacement are available for free (no human damage)
# In case any problem, we supply visiting service for 1st time.(only for neighbouring country)
# Service response time: within 2 hours
# 24hr technology online support (Facebook, skype, team viewer, wechat, qq)
# 24hrservice email ID: service(@)
# 24hr service phone NO. : 86-0531-82367598
# with CD explanation, support technician online
Q: What’s the package ?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation ?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine ?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong ?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Any question, please feel free to contact me
E-mail : sales(@)
Whatsapp:+8613645319835
Skype: ruofenlaser
