Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Engraving Machine > Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale

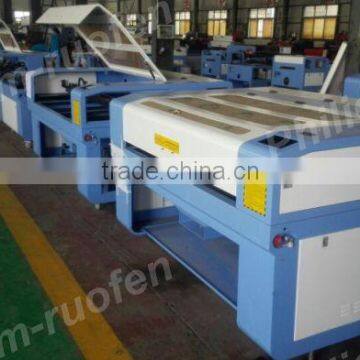

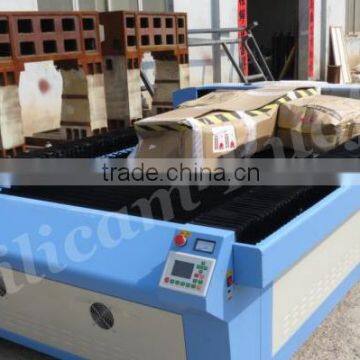

Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale

Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale photo-1
Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale photo-2
Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale photo-3
Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale photo-4
Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale photo-5
Philicam 1300*2500mm Acrylic Wood 100W Co2 Laser Cutter for Sale photo-6
US$ 3,600 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
1300mm*2500mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type CO2
Engraving Area 1300mm*2500mm
Engraving Speed 1-8000mm/min
CNC or Not Yes
Cooling Mode Water Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Stone, Wood
Graphic Format Supported AI, BMP, DST, DXF, PLT
Place of Origin Shandong, China
Brand Name PHILICAM
Model Number FLDJ1325-80W
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

Philicam  1300*2500mm acrylic wood 100W co2 laser cutter for sale

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale



Detailed Information of laser co2 cutter

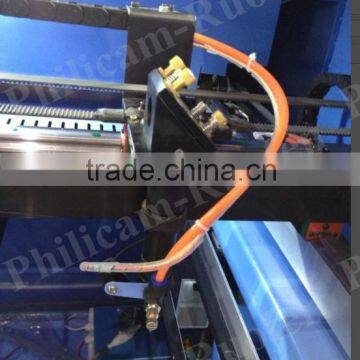

1.Co2 glass laser tube

2. 80w Reci Laser tube(Optional:100w / 130w / 150w)

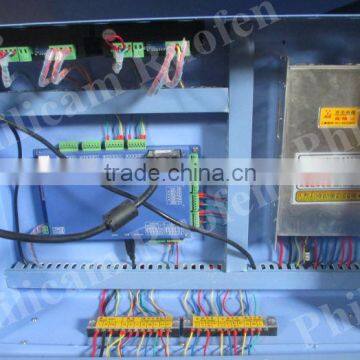

3.Ruida controler

3. Open the control equipment (Leashine drivers / 6525 Leetro control system)

4. Hiwin linear rail guide / Lens and mirror

5. Auxiliary equipment (air pump / water pump / dust collector)

6. Optional (up-down table / water chiller / rotary )

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale





Technical parameters of laser co2 cutter



NO.

Model

FLDJ-1325

1

Laser medium

CO2

2

Working area

1300*2500mm

3

Working table

Knife table

4

Laser power

80W

5

Power Supply

220V/50Hz, 110V/60Hz

6

Min line width

≤0.15mm

7

Positon accuracy

0.01mm

8

Repetition accuracy

0.02mm

9

Cutting speed

150mm/s

10

Guide rail

Hiwin from Taiwan

11

Transmission method

Belt Transmission

12

Drive system

Leadshine driving system and stepper motor

13

Cooling system

Water-cooling

14

Control system

DSP off-line

15

Control software

Coreldraw, Photoshop, AutoCAD, Tajima

16

Graphic format support

PLT, DXF, BMP, JPG ,AI ,ect

17

Working environment

0-45°C,

18

Operating Humidity

5-95%

19

Net weight

950kg

20

Gross weight

1100kg

Applications of laser co2 cutter

Cloth, leather, wool, acrylic, wood,, plastic, rubber, ceramic, crystal, jade, bamboo products, marble, epoxy resins, and other non metal products.

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale



How to choose a laser machine?



Ø   Machine quality.If you plan to choose a so cheap machine,maybe the quality is bad.And you have to order another machine after you use it for a period.This situarion will have a bad effect on your producing.So the quality is most important foctors to choose a laser machine.



 Ø   Future more, the after-sales service is very important,too.Good after-sales service represent the image of a company.After you  use the machine and find some promblems of the machine, a good after-sale service can solve it effectively and protect the right of customers'.



  Ø  The third istechnical support. Because of time diffrent,there is a big problem to comunicate with the sellers. When you need help, maybe it is the sleeping time for your sellers. So effective contact and the good service is also important to you. Other sellers maybe can not do this, but our company can provid 24th service a day.



 Ø  The last is company. A company with good reputation usually can produce good quality machine. As our company, we specialized in CNC laser machine more than 10 years, the professional engineer teams, the advanced equipment and the good after-sale service have earned us good reputation in world market.

Philicam 1300*2500mm acrylic wood 100W co2 laser cutter for sale



We will provide precision machine and high quality service. If you have any need ,please contact me!!
