Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > 72pcs 125*125mm Monocrystalline pv 10kw Solar Panel System

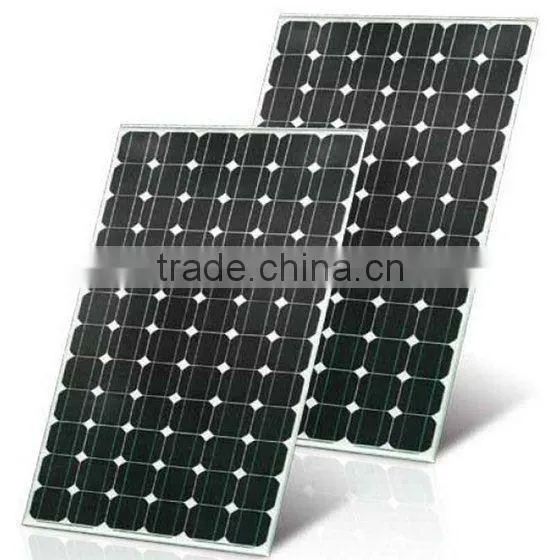

72pcs 125*125mm Monocrystalline pv 10kw Solar Panel System
US$ 0.695 - 0.9
MOQ: 10000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
GH190M72
Material:
Monocrystalline Silicon
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
220w Polycrystalline PV Solar Panel in Renew Energy IndustryUS$ 0.65 - 1.15MOQ: 100 Pieces -
6v 3w Solar Panels for Mobile,light Etc.US$ 0.45 - 0.65MOQ: 100 Pieces
-
190w Single and Multi Solar Cell and Panels (high Efficiency and Poly)US$ 0.7 - 0.9MOQ: 100 Pieces
-
Popular 2013 Hot Sale Solar Panel KitUS$ 100 - 130MOQ: 1 Piece
-
2W-310W Polycrystalline and Monocrystalline Solar Panel With TUV/CE/IECUS$ 240 - 250MOQ: 1 Piece
Place of Origin
Zhejiang, China
Model Number
GH190M72
Material
Monocrystalline Silicon
Size
125*125MM
Number of Cells
72PCS
Max. Power
190W
Specifications
10kw solar panel system1.SOLAR FROM 1W TO 300WATT
2.MONO AND POLY CTRYSTAL SALICON
3.WITH CE TUV IEC CERTIFICATE
72pcs 125*125mm monocrystalline pv 10kw solar panel system
| Specification | GH175M72 | GH180M72 | GH185M72 | GH190M72 | GH195M72 |
| Rating power at STC(Wp) | 175w | 180w | 185w | 190w | 195w |
| Open circuit voltage(Voc) | 44.6v | 44.8v | 45v | 45.2v | 45.4v |
| Short Circuit Current(Isc) | 5.23a | 5.29a | 5.43a | 5.62a | 5.69a |
| Rated voltage(Vm) | 35.8v | 36v | 36.4v | 36.5v | 36.6v |
| Rated circuit(Im) | 4.89a | 5a | 5.09a | 5.20a | 5.33a |
| Tolerance of the rating power | ±3% | ||||
| All technical data at STC: AM1.5; 1000W/m2; 25°C | |||||
| Temperature coefficient of Isc | +0.08%/K | ||||
| Temperature coefficient of Voc | -0.35%/K | ||||
| Temperature coefficient of Pm | -0.50%/K | ||||
| NOCT | 50°C | ||||
| Maximum System Voltage | DC 1000V | ||||
| Cell | Monocrystalline silicon solar cell 125*125mm | ||||
| No. of cell | 6*12 | ||||
| Max series fuse rating | 15a | ||||
| Wind resistance | 2400Pa | ||||
| Weight | 15.5kg | ||||
| Dimension | 1580*808*35mm | ||||
