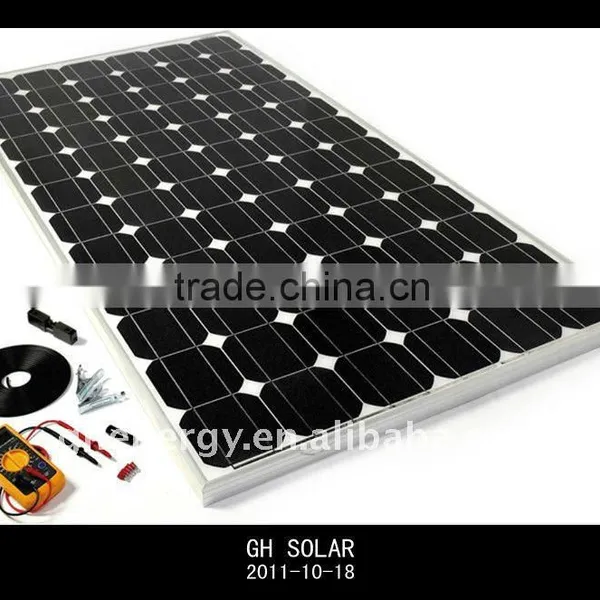

2W-310W Polycrystalline and Monocrystalline Solar Panel With TUV/CE/IEC

2W-310W Polycrystalline and Monocrystalline Solar Panel With TUV/CE/IEC thumbnail-1
2W-310W Polycrystalline and Monocrystalline Solar Panel With TUV/CE/IEC photo-1
US$ 240 - 250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH
Model Number:
GH028 190W
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GH
Model Number GH028 190W
Material Monocrystalline Silicon
Size 156*156MM
Number of Cells 54PCS
Max. Power 190W

Specifications

SOLAR PANEL KITS
1.SOLAR FROM 1W TO 300WATT
2.MONO AND POLY CTRYSTAL SALICON
4.WITH CE TUV IEC CERTIFICATE
3.BEST PRICE

2W-310W Polycrystalline and Monocrystalline solar panel with TUV/CE/IEC



pv solar panels,solar panel systems,solar panels cost,solar panel efficiency,, residential solar panels,pv solar panels,solar panel systems, solar panels cost,solar panel effici ency

MODEL  WP(W)   ARRANGEMENT MODEL    SIZE(L*W*H)   Vmp(V)   Imp(A)   Voc(V)   Isc(A)
GH034   280W   156*156P/M  6*12PCS   1956*992*50MM   37.20        7.55        45.20     8.44
GH033   260W   156*156P/M  6*12PCS   1956*992*50MM   36.60        7.14        44.10     8.10
GH032   240W   156*156P/M  6*10PCS   1650*992*50MM   31.00        7.75        37.20     8.54
GH031   220W   156*156P/M  6*10PCS   1650*992*50MM   30.60        7.25        36.60     8.31
GH030   200W   156*156P/M  6*9PCS     1476*992*45MM   28.00        7.24        33.20     8.14
GH029   180W   156*156P/M  6*8PCS     1650*836*50MM   24.80        7.26        30.75     8.15

GH018   150W   156*156P/M  4*9PCS     1476*680*35MM   18.00        8.35        22.20     8.85
GH017   140W   156*156P/M  4*9PCS     1476*680*35MM   18.00        7.80        22.20     8.67
GH016   130W   156*156P/M  4*9PCS     1476*680*35MM   17.20        7.56        22.20     8.50
GH015   120W   156*156P/M  4*9PCS     1476*680*35MM   17.20        7.05        21.60     8.40
GH014   110W   156*120P/M  4*9PCS     1150*680*35MM   17.20        6.40        21.60     7.20
GH013   140W   156*120P/M  4*9PCS     1150*680*35MM   17.20        5.90        21.60     7.00



1)Certifications: CE, IEC, TUV
2)Power range: 2WP to 310WP per panel
3)Monocrystalline and Polycrystalline

We have our own solar panel sub-factory and specialized in manufacture solar panel for years, we are Gold Supplier and Trustpass Supplier in the . We can produce solar panels from the size 2 watts to 310 watts per piece, no matter mono crystalline or poly crystalline. Our solar panels have passed CE, IEC  and TUV certificates.


relevant index:



1) Power range: from 2WP to 310WP

2) Mono crystalline or Poly crystalline

3) Packing method: carton,wooden case, pallet.

4) Quality: first grade and good efficiency of cell, glass used Low-carbon toughened glass

5) Warranty: 5 years product warranty and 25 years 80% of peak power.

6) Standard test conditions: AM1.5 100mW/cm2 25oC

7) Tolerance: +/-5%, solar cell's efficiency can get to above 16%

8) Approvals: CE, IEC61215/61730,TUV

9) Regarding to measure, we can according to your demands to produce

10) Certification: CE, IEC,TUV  certificates

11) System voltage: 1000V



the efficiency is above 17% , warranty is the power 90% in 10 years , 80% in 25 years . a grade solar cell to produce .

  POLYCRYSTALLINE SOLAR PANEL  230W



      DimensionS : 1668*996*46mm

     No. of cells and connections  60  (6*10)

     Weight:

     Parameter

     Maximum operating voltage:   30V

     Maximum operating current:   7.70A

     Open circuit voltage:               36 V

     Short circuit current:              8.54 A

     Working temperature:             -40°C----85°C





Features
1.Product name:Solar panel/module
2.Tempered glass laminated with aluminum frame
3.Life time:20-30 years
4.Temperature co-efficiency:A=+1,46mA,  B=-79mV,Rp/p=0.43
5.Power specification at 1kw/m2
6.Output cable:Multi contact connectors
7.Diodes:Three 10A,1KV schottky by pass diodes included
8.Construction:
a.Fromt high-transmission 32mm tempered glass
b.Back:TPT
c.Encapsulant:EVA
9.Frame:Aluminum alloy
