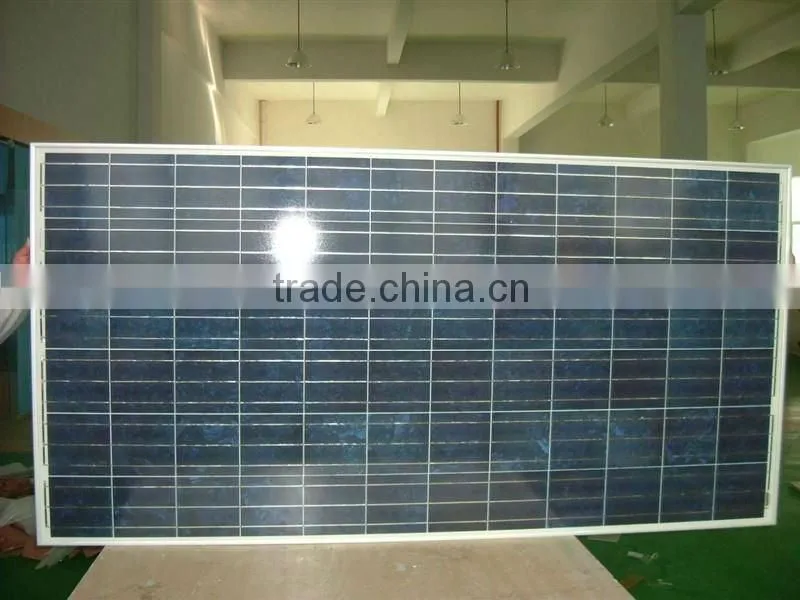

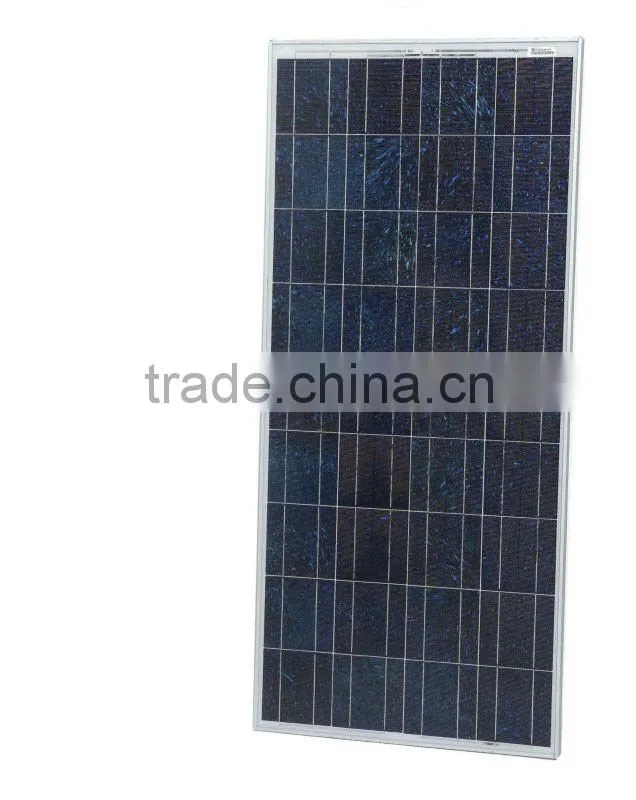

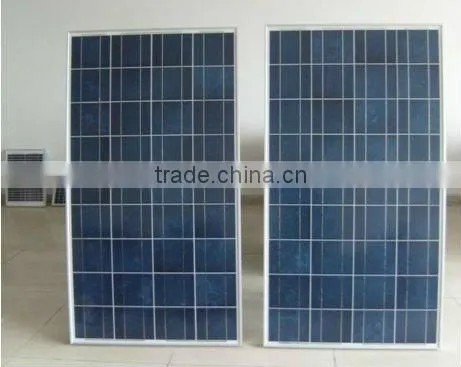

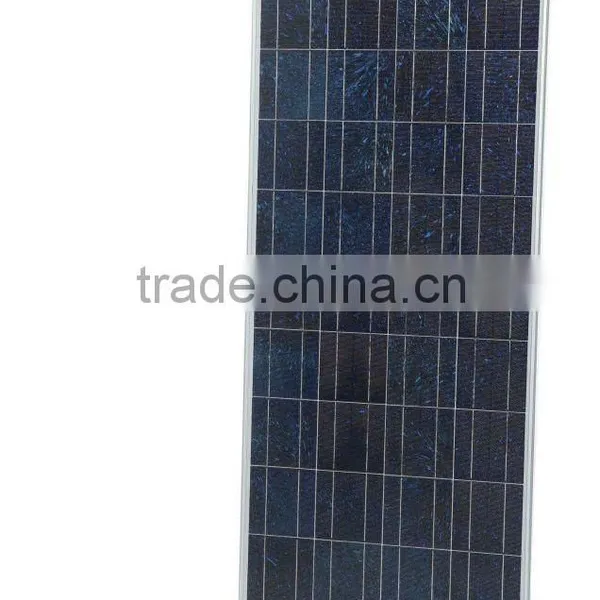

120watt Solar Panel in Polycrystalline Silicon Cells
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH
Model Number:
GH120P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
85w Solar Panel / Inverter, Charger,systemUS$ 0.8 - 1.15MOQ: 100 Pieces -
225watts Solar Panels for Solar/Wind Turbine SystemUS$ 0.7 - 1.15MOQ: 100 Pieces
-
CE/IEC/TUV Certificate Non-anti-dumping Photovoltaic Solar Panel With Frame and MC4 ConnectorUS$ 100 - 110MOQ: 1 Piece
-
72pcs 125*125mm Monocrystalline pv 10kw Solar Panel SystemUS$ 0.695 - 0.9MOQ: 10000 Watts
-
220w Polycrystalline PV Solar Panel in Renew Energy IndustryUS$ 0.65 - 1.15MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
GH
Model Number
GH120P
Material
Polycrystalline Silicon
Size
1485*660*40mm
Number of Cells
36
Max. Power
120w
Specifications
pv solar panel 120w1.High Efficency Solar Panel (25Years Warranty)
2.OEM Order is Welcomed
120watt solar panel in polycrystalline silicon cells
120 Watt Solar Panel
- Description: 120w solar panel, 36 poly crystalline solar cells, 3.2mm low-iron toughened glass, EVA, TPT water-proof, anodized aluminum frames
- Size(mm): 1485*660*40
- Cnt Size(mm): 1495*670*90 (Two in one container)
- GW/NW: 12.5kg/12kg
- MOQ: 1000 pcs
- Q'ty/20': 400pcs; Q'ty/40': 920 pcs
- Loading port: Ningbo
- FOB Ningbo: please contact us for latest price.
- Payment terms: T/T, L/C, etc
Specifications
120W Solar Panel Specifications (Test condition: 1000W/m2, AM1.5, 25°C)
| Max Power(Watt) | 120w |
| Tolerance | +-3% |
| Size(mm) | 1485*660*40 |
| Weight(kg) | 12 |
| Number of Cells | 36* Poly crystalline cells |
| Size of Cells(mm) | 156*156 |
| Max Power Voltage(V) | 17.2 |
| Max Power Currency(A) | 6.98 |
| Open Circuit Voltage(V) | 21.6 |
| Short Circuit Currency(A) | 7.92 |
| Max System Voltage(V) | 1000 |
| Wind Bearing | 60m/s (200kg/sq.m) |
| NOCT (Nominal operating cell temperature) | 47°C(+2°C) |
