Specifications
Solar panel:1. TUV,IEC,CE,UL,cUL,MCS,ISO,Kiers
2. Whole value chain(capacity:800MW)
3. Warranty:25 years 80%,10 years 90%
MODEL WP(W) ARRANGEMENT MODEL SIZE(L*W*H) Vmp(V) Imp(A) Voc(V) Isc(A)
GH028 255W 125*125M 8*12PCS 1580*1060*45MM 48.60 5.25 59.10 5.51
GH027 240W 125*125M 8*12PCS 1580*1060*45MM 48.00 5.01 59.00 5.40
GH026 230W 125*125M 8*12PCS 1580*1060*45MM 48.00 5.00 58.60 5.35
GH025 220W 125*125M 8*12PCS 1580*1060*45MM 47.50 4.65 58.00 5.25
GH024 195W 125*125M 6*12PCS 1580*808*40MM 37.20 5.25 44.20 5.52
GH023 190W 125*125M 6*12PCS 1580*808*40MM 37.00 5.15 44.20 5.45
GH022 185W 125*125M 6*12PCS 1580*808*40MM 36.60 5.10 43.20 5.40
GH021 180W 125*125M 6*12PCS 1580*808*40MM 36.60 5.00 43.20 5.35
GH020 175W 125*125M 6*12PCS 1580*808*40MM 36.20 4.85 43.20 5.25
GH019 170W 125*125M 6*12PCS 1580*808*40MM 36.60 4.75 43.00 5.10
GH012 95W 125*125M 4*9PCS 1200*550*35MM 18.00 5.27 22.60 5.55
GH011 90W 125*125M 4*9PCS 1200*550*35MM 18.00 5.10 21.60 5.45
GH010 85W 125*125M 4*9PCS 1200*550*35MM 17.20 5.00 22.60 5.35
GH009 80W 125*125M 4*9PCS 1200*550*35MM 17.20 4.80 21.60 5.25
GH008 75W 125*125M 4*9PCS 1200*550*35MM 17.20 4.41 21.60 5.10
GH007 70W 125*125M 4*9PCS 1200*550*35MM 16.80 4.20 21.60 4.90
solar panels price usd
1)Certificate:ISO,CE ,TUV
2) Reasonable Price
3) High Quality
4) Top after-sales service and OEM accepte
solar panels price usd

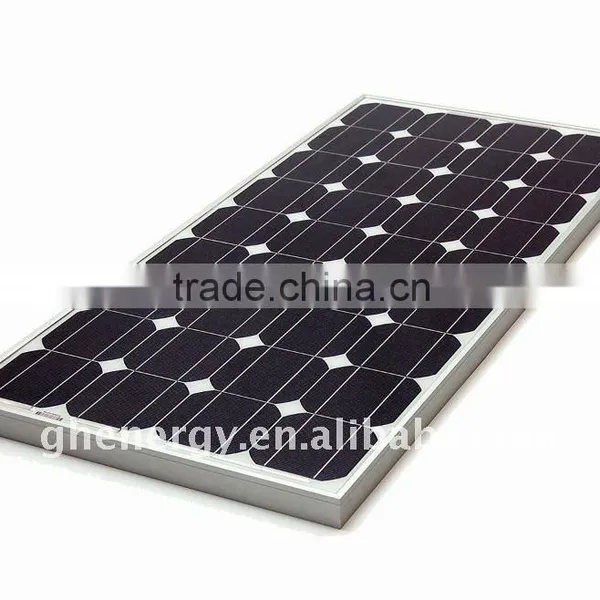

GANGHANG Solar GH029M is a set of highly efficient solar modules with 72 crystalline silicon cells.Our products are widely applied to the off-grid system.GANGHANG Solar constantly meets customers' demands for high quality products,with its world-class quality and continuous technological innovation.
Features
1)greenclean energy
2)sustainable development
3) no pollution
4)easy to achieve
Parameters
Pmax |
180W |
|
Vmax |
24.80V |
|
Imax |
7.26A |
|
Voc |
30.75V |
|
Isc |
8.15A |
|
Operating Temperature |
-40°C~+85°C |
|
Vsmax |
1000V/600V |
|
T.C. |
Pmax |
-0.45%/°C |
Voc |
-0.35%/°C |
|
Isc |
0.060%/°C |
|
Noct |
45°C |
|
Unique Features
1)Meterials and Workmanship Warranty: 6 years;Power Quality: 25 years
2)Industry-leading Power Tolerance:±5W(±6%);
3)All products have passed 5400Pa Mechanical Testing,satisfying the environmental requirements around the clock.The structural design is outstanding and solid,with better snow load capacity.
Applications
1)Communication System in remote areas;
2)Remote Sensing System in transportation, environmental security, and other remote areas;
3)Applications in rural or remote areas;
4)Applications in other off-grid system;
