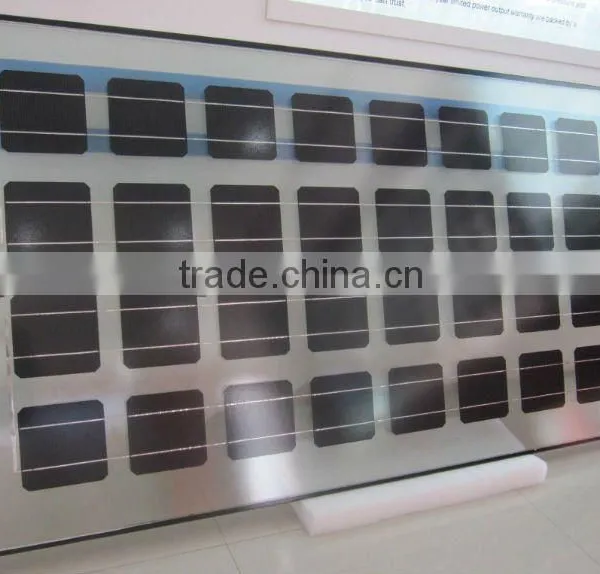

High Power Bipv Solar Panel

High Power Bipv Solar Panel photo-1
US$ 0.78 - 1.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH solar
Model Number:
GH- 7236
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GH solar
Model Number GH- 7236
Material Monocrystalline Silicon
Size 1476*680*35mm
Number of Cells 36
Max. Power 130W

Specifications

high power bipv solar panel
We are mainly engaged in the designing, producing, sales of solar module and system.

high power bipv solar panel

1)BIPV solar panel with 5 years warranty
2) bipv mono panel with UL,IEC Pending
3) bipv mono solar panel with high efficiency

BIPV solar panel  will last for at least 25 years
bipv mono panel  with 5 years warranty on material and workmanship
bipv mono solar panel guaranteed their output at 90% after 10 years and 80% after 25 years


Mono-crystalline silicon Panel >>100W


Maximum Power(W) 120W
Open circuit Voltage(Voc) 29.76V
Short circuit Current(lsc) 5.41A
Maximum Power Voltage(Vmp) 24.96V
Maximum Power Current(Imp) 4.81A
Solar cell 125*125 Mono
 Test condition of luminous  1000W per m2
 Test  temperature  25 degree
Caple/Connector Type Pass the TUV certificate
Frame structure(Material,Comers) Aluminium
Back side TPT
Cell Efficiency(%) 16.5
Maxiumum system voltage 1000V
Weight(kg) 9.5
FF(%) 70-76
Junction Box Made in china
Power Tolerance(%) ±3
Front glass thickness(mm) 3.2
Temp-coefficient lsc(%) 0.04
Temp-coefficient Voclsc(%) -0.38
Temp-coefficient Pmlsc(%) -0.47
Temp-coefficient Imlsc(%) -0.04
Temp-coefficient Vmlsc(%) -0.38
Surface maximum load capacity 2400Pa
Aiiloable hail load 23m/s,7.53g
Bypass diode rating(A) 12


high power bipv solar panelhigh power bipv solar panelhigh power bipv solar panel

 high power bipv solar panelhigh power bipv solar panel
