Specifications
On/off-grid solar system 1000WWe are mainly engaged in the designing, producing, sales of solar module and system.
We could design for customers required of other specification
Manufacturer of solar systems.
Deep Expertise.
25W-magawatt solar power sytsems
Solar System 1000W:
The following is a part of our data
If you want to get more information please ask me feel free, hope we could give you
best support in near future.
Parameters:

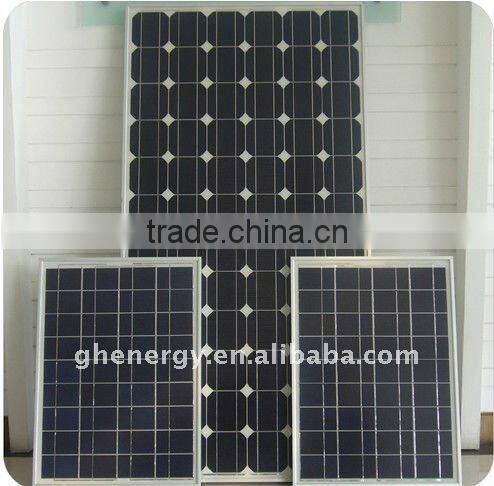

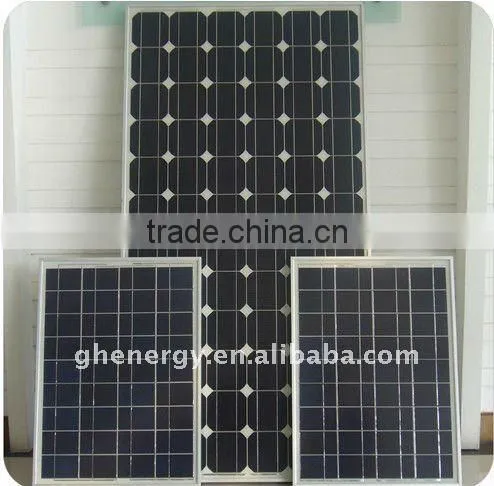

Solar Cell Module:
Maximum power:1000W(170W×6pcs)
Converting rate: ≥16% mono-crystalline silicon solar cell, 125×125 standard squareness
Open circuit voltage: 44.5V
Maximum voltage: 35.9V
Electrical data:
Short circuit current: 30.72A
Maximum current: 28.44A
Type and Size:
Type A
4928×1580mm (1array*6 solar modules)
Solar cell module Sizes: 808mm×1580mm×35mm
Type B
Installation angle: 0°~60°with horizontal adjustable
Rechargeable Battery Pack:
Rated capacity: 600AH
Rated voltage: 24V
Combined mode:150AH/12V, 2pcs as a group in serial and 2 groups in parallel
Battery type: lead-acid, maintenance-free battery
Discharge rate: ≤50%
Adaptive temperature: 30~60
weight: 500Kg
lifetime: 5-8 years
as the model CSS-SHS03 MANUAL
A: Note
1, Please read carefully before using.
2, For providing lighting, please ensure the batteries with enough power.
3, Charging in time when the lights dim.
4, The battery should be recharged regularly, it must charge 10 hours at least every three months.
5, Please switch to "0" position when unused.
6, The power may be reduced when the temperature of working environment low than 0 °C (32F) below and high than 40 °C (104F).
7, The attached electrical appliance should be waterproof.
B: The charging method:
1, Charging fully to the rechargeable battery of solar generator system before using.
2, Please put solar panel on the sunny place without keeping out when charging through solar panel,
3, AC charging, put the charger into the "Input" and AC power;the indicator will be red when charging and it will turn green automatically when full.
4, It may heat during charging,it is normal.
C:Maintain
1, Bucharest with a clean cotton scrub parts ethanol.
2, Don’t use sharp or hard of volatile chemicals to clean, it would damage the parts.
3, For avoiding electric shock, non-professional do not open.
D.Specifications:
1.The solar panel: 3W - 9V
2.Rechargeable Battery: 6V7A lead-acid rechargeable battery
3.Inverter: Maximum current output: USB Output 1A, DC output 3A Input interface: DC interface
1, the input voltage is 9V. Output Interface: 4, including: 1 USB output voltage: 5V,current: 1A;
3 DC output voltage:6V, current 1A. Switch: 1 power switch. Indicator: 2 red charging indicator light and green working indicator light. Size; 20 * 18 * 22cm
Charge/discharge Controller, Input&output
Charge/Discharge controller:
model:CX40
size: 40A ( 12/24V adaptive )
manufacturer: Phocos
DC output:12V, 4 outlets for DC 12 V /11W fluorescent light
24V ,for DC electrical equipments
AC output-A 50/60Hz
Standard electricity wave Inverted output
Rated output power 500W for group-adaptive loads, e.g. lights, TV, electrical heaters etc
AC output-B 50/60Hz
Pure electricity wave inverted output
Rated output power 300W for geist electrical machines loads,e.g.fridges,fans,water pumps.
