10kw Solar Power System for Home
US$ 0.78 - 2.25
MOQ: 100 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH soler energy
Model Number:
GH-6688
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Panel Pakistan LahoreUS$ 0.5 - 3MOQ: 100 Pieces -
China Solar Panels Cost,solar Home SystemUS$ 0.7 - 1.2MOQ: 1000 Watts
-
Home Solar System FreeshippingUS$ 0.7 - 1.2MOQ: 1000 Watts
-
Home Solar System Freeshipping Solar SystemUS$ 0.6 - 1.2MOQ: 1 Watt
-
Solar System for Home 1kw 2kw 3kw 4kw 5kwUS$ 0.78 - 1.98MOQ: 100 Watts
Place of Origin
Zhejiang, China
Brand Name
GH soler energy
Model Number
GH-6688
Specification
Normal
Application
Industrial
Output Voltage (V)
220
Load Power (W)
130
Solar Power (W)
18%
Work Time (h)
12
Specifications
solar system,solar system for home,solar system for houseOur products bear TUV, UL, MCS, CE membersh
solar system,solar system for home
Good quality&high efficiency
warranty:solar panel(15-25 years)
Certificate:CE,ROHS,TUV,ISO
1500W solar system
1. System configuration |
||||||
| solar panel: 1500 W | ||||||
| batteries: 48 V/400Ah | ||||||
| controller: 48V/20A | ||||||
| inverter: 48V/3000W | ||||||
| 2. Power of the load: 2680 W | ||||||
| Installinstallation manual can be afford | ||||||
| Designed for 2 continuous rainy/cloudy days | ||||||
| 3. Detailing information of the load | ||||||
| Electricity appliance | Specification | Power | Qty | Working time per day(h) | power consumption per day(W*H) | |
| Lamp | CFL light | 11W | 6 | 4 | 264WH | |
| PC | normal | 140W | 1 | 5 | 700WH | |
| Printer | ink jet | 30W | 1 | 1 | 30WH | |
| Washing machine | 300W | 1 | 0.5 | 150WH | ||
| microwave oven | 1200W | 1 | 0.1 | 120WH | ||
| colour TV | 25inch | 140W | 1 | 6 | 840WH | |
| air conditioner | 800W | 1 | 3 | 2400WH | ||
| Total | 2676W | 4504WH | ||||
| 4. Configuration list of the system | ||||||
| Part name | Weight(KG) | Model | Specification | Qty | Remark | |

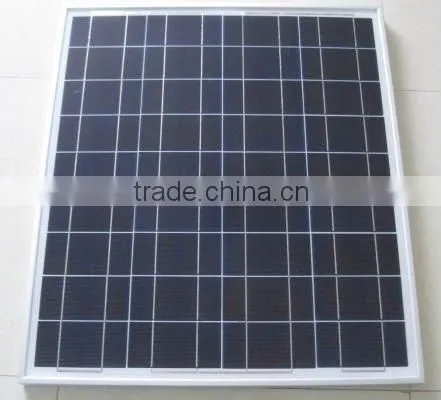

| Solar panel | 150 | NZX-120W18V | Size:1480x680x35mm Rated power:120W Solar cell: Mono/Poly |
12pcs | ||
| batteries | 220 | NP12-200 | Rated Voltage: 12 V Rated Capacity: 200Ah |
8pcs | ||
| controller | 15 | CQ48-20 | Rated Voltage: DC48V Rated current: 20 A |
1 pc | Multi-function: over charge/ discharge protection, short circuit protection, over current protection, solar panel and batteries incorrect connect protection, charging temperature compensation, lightning protection | |
| inverter | 50 | GS48-3000 | Rated voltage: 48V Output power: 3000W Output voltage: AC220V, Frequency: 50Hz±0.1Hz Invertion efficiency: 80%~92% |
1 pc | ||

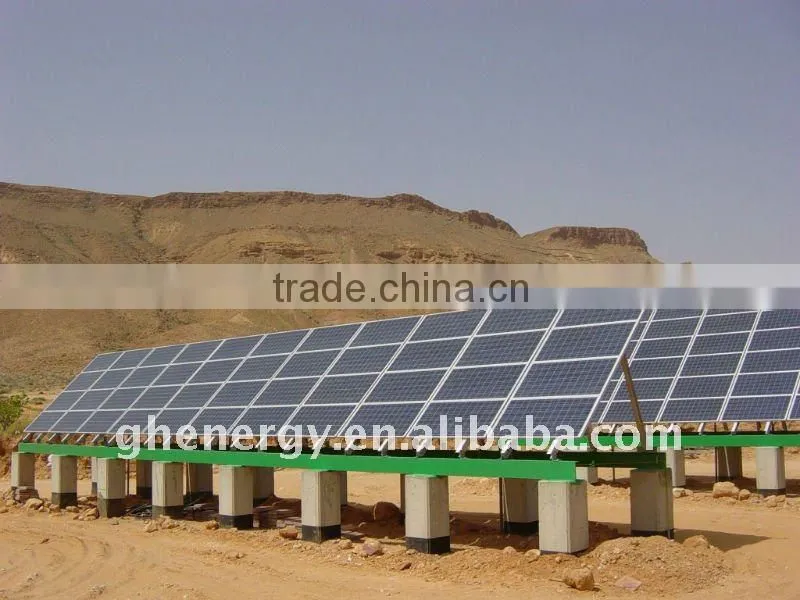

| Solar panel bracket | 300 | Self-made | Made by 4x40(mm) painted angle iron, design the size and structure according to real installation site. | 1 set | To fasten the solar panel array | |
| Battery shelf | Made by 4x40(mm) painted angle iron, design the size and structure according to real installation site. | 1 set | For batteries placement | |||
| Control cabinet | Painted metal cabinet, design the size and structure according to real installation site | 1 set | To assembly the controller, inverter, etc | |||
| Lightning protection system | 100 | 1 set | ||||
| Cable | 20 | Use different multi-core copper wire according to real installation | to connect all equipments | |||
| Auxiliary material | 15 | |||||
| 5. Construction workmanship procedure: | ||||||
| Assembly the solar panel with the bracket→ circuit converge→ assembly batteries, controller, inverter& control carbinet→ wiring connect→ work up wiring&cable, and fix it→ assembly lightning protection system→ system power on test and commissioning | ||||||
| 6. Selection of the installation site | ||||||
| a. There should not have shelter material surround the installation site, to ensure the full sunshine condition exposure on the solar panels. | ||||||
| b. Drainage of the installation site must be smooth. | ||||||
| c. If there's river or other water source near to the installation site, the lowest point of foundation must be higher than historical maximum water level in the last 50years. | ||||||
d. Installation location cannot have power cable or optical cable laying underground. | ||||||
