Specifications
500w solar system for home chargerWe are mainly engaged in the designing, producing, sales of solar module and
1.High Efficiency Cell
2.Well controlling charging and discharging
3.Flexible designs for clients
4.get energy from sun
| Solar power generation system/solar cell system GS-SP-500W |
| Location | Egypt | Load | 300W | Working hours | See the table below |
| Days without sunlight | 1 day | System Voltage | 24V | Reference Peak Sunlight | 6.24H |
| Number | Appliance | Power(W) | Quantity | Electricity Consumption time(h) | Electricity Consumption/Day (WH) |
| 1 | Refrigerator | 300 | 1 | 24 | 2000 wh |
| Configuration List | |||||
| Number | Name | Unit | Quantity | Model | Notes |
| 1 | Solar Module | WP | 4 | 125W/35V | 4 monocrystalline components |
| 2 | Fixed bracket for solar panel | WP | 1 | Guide Aluminum Structure | |
| 3 | Battery | set | 2 | 12V/150Ah | 3 years’ warranty for colloidal battery |
| 4 | Controller | set | 1 | 24V/20A | Intelligent LED |
| 5 | Inverter | set | 1 | 24V/800W | Pure Sine Wave Output |
| 6 | Box | set | 1 | Processed with Q235 plastic-coating | |
| 7 | DC Lightening Protection Device | set | 1 | 20KA | |
| 8 | DC Air switch | set | 1 | 24V/36A | |
| 9 | AC Lightening Protection Device | set | 1 | 220A/20KA | |
| 10 | Residual Current Device | set | 1 | 2P | |
| 11 | Three-pin plug | set | 1 | ||
| 12 | Other | set | |||
| load | 300W(Approx) | Construction Type | off-grid | Overcast and rainy days | 1days |
| Territory of Use | Egypt | Working Hours | Continuous 24 Hrs | System Voltage | 24V system voltage |
1.Easy installation. The innovative ES rails and U-NUT modules have greatly Simplified the installation of PV modules. The System can be installed with a single Hexagon Key and standard tool kit. The Solar Terrace system is aided by a very high level of preassembly. The U-NUT module and unque rail extension method allow greatly reduced installation times.
2.Great Flexibility. No matter it’s a few solar panel residential installation or it’s a Mega Watt Solar Power Plant, With the Enrichsun Solar Terrace, framed photovoltaic modules can be easily deployed. The Enrichsun Solar Terrace system has mounting accessories designed for almost every type of installations.
3.Excellent Compatibility. Designed as a universal racking system, framed modules from all the popular manufactures can be used.
4.Excellent Adaptability. The angle of the rails has been designed to maximum the harveast of solar power according to your local latitude.
5.Engineered To High Standards. The Enrichsun Solar Terrace is made to the highest standards, safe and strong its designed to Comply with international machinery load standard.
6.Maximum Lifespan. All components are made of quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
7.Guaranteed Durability. Enrichsun provides a guaranteed of 10 years on the durability of all Components used.

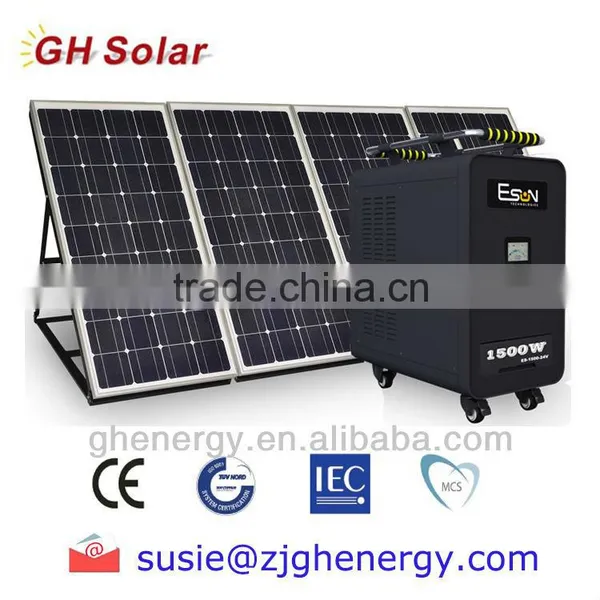

There are some image as follwoing for the 500w solar panel for your inference:
