Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > JIHPUMP OEM Peristaltic Pump Used for Dishwasher With Quick Install Panel of Flow Rate 930ml/min
JIHPUMP OEM Peristaltic Pump Used for Dishwasher With Quick Install Panel of Flow Rate 930ml/min
US$ 78 - 78
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JIHPUMP
Model Number:
203KA
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wash Machine JIHPUMP OEM Peristaltic Pump Quick Install Panel Type of Flow Rate Less Than 5900ml/minUS$ 50 - 100MOQ: 10 Pieces -
JIHPUMP Peristaltic Pump for Dispensing Printing Ink With Quick Install Panel of Flow Rate 930ml/minUS$ 78 - 78MOQ: 1 Piece
-
Kitchen Equipment Usage Peristaltic Pump With Quick Install Panel of Flow Rate 930ml/minUS$ 78 - 78MOQ: 1 Piece
-
JIHPUMP Peristaltic Pump for Analyzer Sampling With Quick Install Panel of Flow Rate 930ml/minUS$ 78 - 78MOQ: 1 Piece
-
JIHPUMP OEM Peristaltic Pump Quick-install Panel Colorful Type of Flow Rate Less Than 88ml/minUS$ 41 - 41MOQ: 1 Piece
Place of Origin
Chongqing, China
Brand Name
JIHPUMP
Model Number
203KA
Theory
Rotary Pump
Structure
Other, Peristaltic pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Electricity
Pressure
Low Pressure
Application
Metering
Application
| Detergent transfer:washing machine,dishwasher etc. | Analysis instrument:analytical inspection apparatus |
| Printing equipment:ink transfer | Food machinery:beverage dispenser etc. |
| Kitchen fittings:warewashing equipment | Laundry Equipment |
Feature
1. JIHPUMP new upgrade version,max flow up to 930ml/min,multi-tech improved design
2. Adapted to hose 15# or 24#,fully fixed on pump head through connector to ensure flow reproducibility
3. Optimized on 203K basis,no blind side,surface smooth and easy to clean
4. Pump housing and roller from high functional materials,structure and performance excellent,high reliability
Parameter
| Pump model |
203KA/ZLX (DC planetary motor) |
203KA/ZL (DC motor) |
203KA/WTT (DC brushless planetary motor) |
203KA/BT (stepper motor) |
|||
| Rotate speed | 150r,267r,300rpm | 120r,135r,166rpm | 150~290rpm | 0.1~300rpm | |||
| Appearance | |
|
|
|
|||
| Tube no. | 15#, 24# | ||||||
| Flow rate | ≤918ml/min | ≤505ml/min | 221~838ml/min | ≤931ml/min | |||
| Motor power | 6-16W | 6-16W | 48W | 30-50W | |||
| Motor type | DC planetary gear motor | DC gear motor | DC brushless governing-speed motor | Type 57 stepper motor | |||
| Driver | DC speed-governing panel (pwm) | 150~290rpm | Any JIHPUMP controller | ||||
| Voltage | 24V(optional 12V) | 24V (optional 12V) | 12V (optional 24V) | 6~36V | |||
| Weight | 552g | 808g | 673g | 837g | |||
| Flow rate(ml/min,medium:water) | |||||||
| Motor type | DC planetary gear motor | DC gear motor | DC brushless motor | Stepper motor | |||
| Motor rotate speed | 267rpm | 300rpm | 120rpm | 135rpm | 166rpm | 150~290rpm | 0~300rpm |
| 15#(4.8×2.4) | 394 | 483 | 208 | 229 | 292 | 221-428 | 0~498 |
| 24#(6.4×2.4) | 750 | 918 | 362 | 410 | 505 | 433-838 | 0~931 |

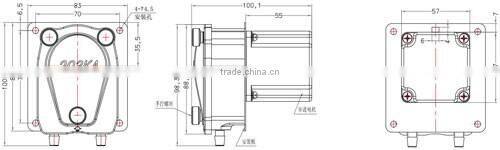

Dimension
203KA/BT
203KA-ZL
203KA-ZLX
203KA/WTT
