6*6 Monocrystalline A Grade Solar Cell 3x6 Polycrystalline Cells B Grade
US$ 0.35 - 0.57
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GH solar
Model Number:
GH- 9269
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.6W Poly Mono Solar CellUS$ 0.6 - 0.72MOQ: 100 Watts -
Monocrystalline Solar Cell 4wUS$ 0.42 - 0.57MOQ: 100 Watts
-
SOLAR CELL 2.71w Mono Crystalline Silicon & Solar PanelsUS$ 0.3 - 0.8MOQ: 1000 Pieces
-
Monocrystalline Solar Cell 156*156 (200mm)US$ 0.32 - 0.48MOQ: 100 Watts
-
Mono Solar Cells Used for Solar PanelsUS$ 0.35 - 0.57MOQ: 100 Watts
Place of Origin
Zhejiang, China
Brand Name
GH solar
Model Number
GH- 9269
Material
Monocrystalline Silicon
Size
6x6
Specifications
6*6 monocrystalline A grade solar cell 3x6 polycrystalline cells B gradeOur products bear TUV, UL, MCS, CE, membership etc.
6*6 monocrystalline A grade solar cell 3x6 polycrystalline cells B grade
We are engaged in designing, producing solar panel and system, hope can give you best support in near future.
The following is a part of our products data
If you want to get more information please ask me feel free, my Skyp: jackhuang1232, hope we could give you best support in near future.

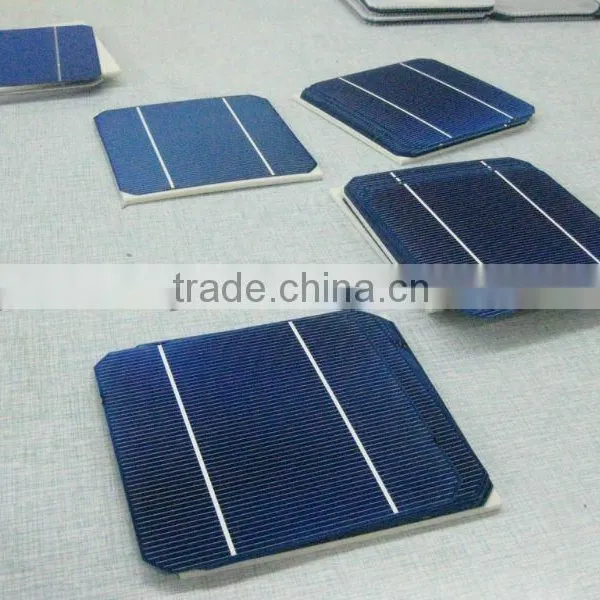

A typical sample of cells is as shown on the picture.
Weight: about 6.5g
Dimensions: 3 1/4 inches x 6 inches, or 80 mm by 150 mm
Average Voltage (Volts): 0.5 V (up to 0.6 v in sunny conditions)
Average Current (Amps): 3.6 Amps
Average Power (Watts): 1.8 W
Untabbed 3x6 solar cells, B grade, polycrystalline. These cells are of the second sorting from our 3x6 stock, they have small chips, dis colourisation and silver paste spots. The cells output very close or the same as the same as the A Grade cells.| 1.GHC-125M*165: | |||||
| Format: 125mm*125mm±0.5mm,diagonal:165mm Thickness: 200um±20um | |||||
| Efficiency(%) | Pmax(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) |
| 18.50 | 2.86 | 0.529 | 5.410 | 0.638 | 5.673 |
| 18.25 | 2.82 | 0.527 | 5.350 | 0.636 | 5.648 |
| 18.00 | 2.78 | 0.525 | 5.295 | 0.634 | 5.621 |
| 17.75 | 2.74 | 0.522 | 5.245 | 0.629 | 5.539 |
| 17.50 | 2.71 | 0.521 | 5.212 | 0.627 | 5.569 |
| 17.25 | 2.68 | 0.518 | 5.169 | 0.626 | 5.536 |
| 17.00 | 2.64 | 0.515 | 5.129 | 0.624 | 5.525 |
| 16.75 | 2.60 | 0.511 | 5.085 | 0.622 | 5.511 |
| 16.50 | 2.56 | 0.519 | 5.030 | 0.621 | 5.494 |
| 16.25 | 2.53 | 0.506 | 4.988 | 0.620 | 5.542 |
| 16.00 | 2.48 | 0.500 | 4.966 | 0.618 | 5.515 |
| 15.25 | 2.36 | 0.500 | 4.720 | 0.614 | 5.497 |
