SOLAR CELL 2.71w Mono Crystalline Silicon & Solar Panels

SOLAR CELL 2.71w Mono Crystalline Silicon & Solar Panels thumbnail-1
SOLAR CELL 2.71w Mono Crystalline Silicon & Solar Panels photo-1
US$ 0.3 - 0.8 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ganghang
Model Number:
GH-C-08M
Contact Supplier Request Quote Chat Now
Zhejiang Ganghang Solar Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Ganghang
Model Number GH-C-08M
Material Monocrystalline Silicon
Size 125*125 mm
Number of Cells 1
Max. Power 2.71W

Specifications

1.SOLAR CELL: CE,TUV etc.
2.125*125 or 156*156 with 2bb/3bb
3.made of solar panel with high efficiency up to 18%

The more information of  the SOLAR CELL as below:

  • Main products: solar cell, solar panel, solar power system etc.
  • MOQ: 100pcs
  • Warranty: 6month-1year for solar cells, 5years product warranty,10years 90% and 20years 85% for solar panels, 1year for solar systems
  • OEM order: welcomed
  • Certificate: CE,TUV, UL etc.
  • Package: carton, wooden case or as your spec.
  • Delivery term: about 30days by sea
  • Widely used for electricity, home, industry, communication, navigation, irrigation, PV house and remote power requirements etc.

Parameter:

1.GHC-125M*165:
Format: 125mm*125mm±0.5mm,diagonal:165mm, Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
18.50 2.86 0.529 5.410 0.638 5.673
18.25 2.82 0.527 5.350 0.636 5.648
18.00 2.78 0.525 5.295 0.634 5.621
17.75 2.74 0.522 5.245 0.629 5.539
17.50 2.71 0.521 5.212 0.627 5.569
17.25 2.68 0.518 5.169 0.626 5.536
17.00 2.64 0.515 5.129 0.624 5.525
16.75 2.60 0.511 5.085 0.622 5.511
16.50 2.56 0.519 5.030 0.621 5.494
16.25 2.53 0.506 4.988 0.620 5.542
16.00 2.48 0.500 4.966 0.618 5.515
15.25 2.36 0.500 4.720 0.614 5.497

2.GHC-125M*150:
Format: 125mm*125mm±0.5mm,diagonal:150mm,  Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
18.50 2.73 0.532 5.132 0.634 5.382
18.25 2.70 0.530 5.094 0.632 5.365
18.00 2.66 0.528 5.038 0.630 5.348
17.75 2.62 0.525 4.990 0.628 5.330
17.50 2.59 0.523 4.952 0.627 5.318
17.25 2.57 0.520 4.945 0.626 5.301
17.00 2.53 0.517 4.899 0.625 5.282
16.75 2.49 0.514 4.856 0.623 5.277
16.50 2.46 0.510 4.821 0.622 5.275
16.25 2.42 0.508 4.770 0.620 5.251
16.00 2.38 0.505 4.724 0.618 5.245
15.25 2.25 0.500 4.550 0.610 5.104
3.GHC-156M:
Format: 156mm*156mm±0.5mm, Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
18.50 4.398 0.525 8.337 0.625 9.142
18.25 4.338 0.523 8.294 0.623 9.080
18.00 4.279 0.520 8.229 0.621 9.011
17.75 4.222 0.516 8.178 0.619 8.942
17.50 4.163 0.512 8.131 0.617 8.869
17.25 4.104 0.508 8.077 0.615 8.803
17.00 4.044 0.503 8.038 0.613 8.763
16.75 3.990 0.501 7.973 0.612 8.698
16.50 3.935 0.499 7.889 0.611 8.620
16.25 3.877 0.497 7.800 0.611 8.545
16.00 3.818 0.494 7.725 0.610 8.494
15.75 3.760 0.492 7.647 0.610 8.444
15.50 3.700 0.489 7.565 0.610 8.398
15.25 3.641 0.486 7.490 0.609 8.362
15.00 3.581 0.483 7.419 0.608 8.338
4.GHC-156P:
Format: 156mm*156mm±0.5mm,  Thickness: 200um±20um
Efficiency(%) Pmax(W) Vmp(V) Imp(A) Voc(V) Isc(A)
17.00 4.13 0.532 7.800 0.635 8.531
16.75 4.05 0.532 7.610 0.631 8.498
16.50 3.99 0.529 7.545 0.629 8.359
16.25 3.94 0.526 7.490 0.626 8.117
16.00 3.89 0.523 7.438 0.624 7.982
15.75 3.83 0.519 7.379 0.620 7.916
15.50 3.77 0.515 7.323 0.616 7.868
15.25 3.72 0.512 7.253 0.613 7.813
15.00 3.66 0.509 7.189 0.610 7.764
14.75 3.60 0.505 7.139 0.606 7.726
14.50 3.54 0.500 7.088 0.603 7.685
14.25 3.48 0.495 7.029 0.600 7.637
14.00 3.42 0.488 7.015 0.596 7.631

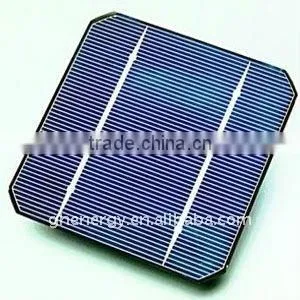

There are some image as follwoing for the SOLAR CELL for your inference:

SOLAR CELL 2.71w mono crystalline silicon & solar panels

SOLAR CELL 2.71w mono crystalline silicon & solar panels

Of course, we can making all kinds of solar cells as your request, sincere welcome to visit our company.
