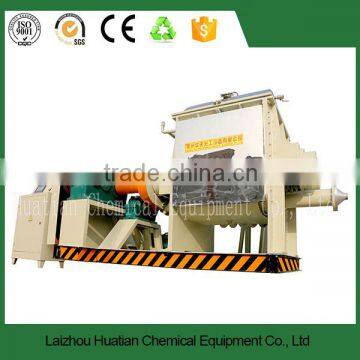

National Patent Multi-function High Visc Kneader

National Patent Multi-function High Visc Kneader photo-1
National Patent Multi-function High Visc Kneader photo-2
National Patent Multi-function High Visc Kneader photo-3
National Patent Multi-function High Visc Kneader photo-4
National Patent Multi-function High Visc Kneader photo-5
National Patent Multi-function High Visc Kneader photo-6
US$ 4,000 - 29,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Paddle
Product Type:
Paint
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Paddle
Product Type Paint
Application Viscous Fluid
Additional Capabilities Other, Blend extrusion
Place of Origin Shandong, China
Brand Name HT
Model Number HT-NHJ
Max. Loading Capacity 2000L
Voltage 220V/380V
Power(W) 0.75KW~110KW
Dimension(L*W*H) 3500*3200*2800mm
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Huatian” HT-NHJ series of Kneader are available with numerous models and with multiple functions. They have very wide applications and are particularly suitable for mixing,kneading,smashing,stirring,vulcanizing and re-polymerizing of chewing gum,fire retardant,"space sand"(also called kinetic sand or toy sand),butyl rubber,plastics,silicon rubber,dyestuff,pigments,printing ink,food gum,high viscosity sealant ,high elastic-plastic materials. They have features of mixing uniformity,no dead angle and high kneading efficiency etc.

This series of equipment have passed CE certification with national patents obtained.

Technical Data:



Model
HT-NHJ5
HT-NHL10
HT-NHJ50
HT-NHJ100
HT-NHJ300
HT-NHJ500
HT-NHJ1000
HT-NHJ1500
HT-NHJ2000
Volume(L)
5
10
50
100
300
500
1000
1500
2000
Agitating Speed(kw)
33、23
33、23
45、23
35、22
37、21
37、21
35、25
30、16
30、16
Main Motor Power(kw)
0.75
1.1
2.2-3
3-7.5
11-30
15-37
22-90
22-90
30-110
Heating Method
Steam:Pressure
(Mpa)
                                                             0.3
Electrical Heating:Power(kw)
1
1
4
4
9
16.2
27
32.4
Vacuum Degree(Mpa)
                                                                     -0.094(Vacuum Type)
Pressure(Mpa)
0.45(Pressure  Type)
0.35(Pressure Type)
Outer Size(mm)
650*400*705
750*450*900
1170*1100*480
1645*775*1540
1800*800*1400
3450*1300*1600
3600*1420*1800
3900*1600*2100
Weight(kg)
~300
~400
~560
~1250
~1600
~3000
~4500
~5800
~6500

Main Features

1) Simple structure, easy to install

2)The use of advanced pneumatic components, electrical components and parts of the operation of the parts.

3) use a connector to connect to the conveyor belt, it can be directly with the filling machine.

Certificates
Packing & Delivery
Packaging
Size
3500*3200*2800mm
Weight
7000kg



Packaging Details
Usually Package By Three Plywood,Suitable And Convenient For Shipment
