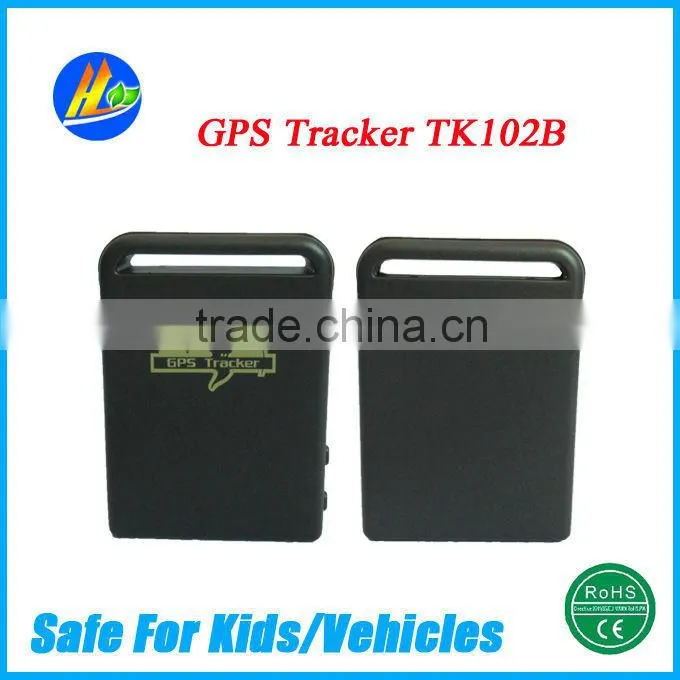

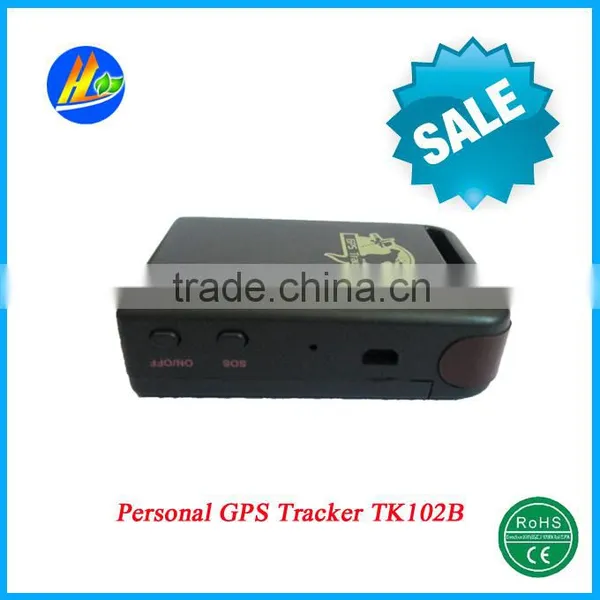

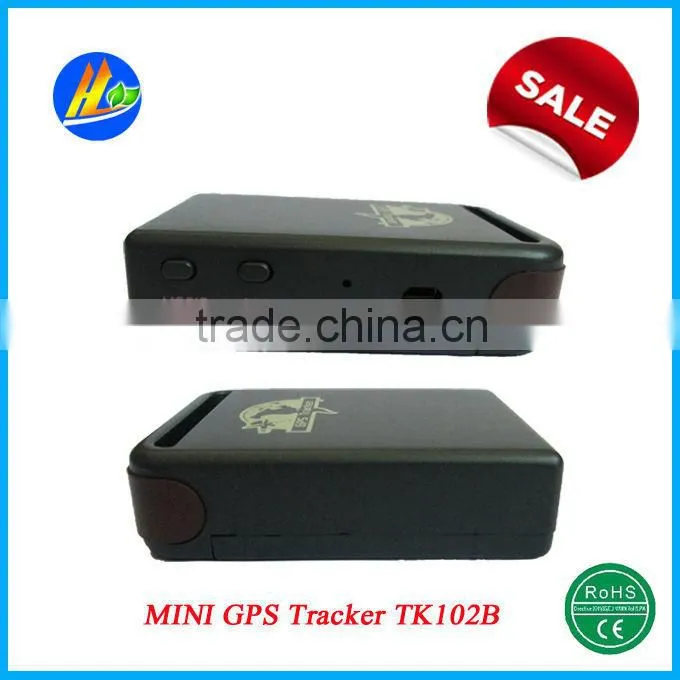

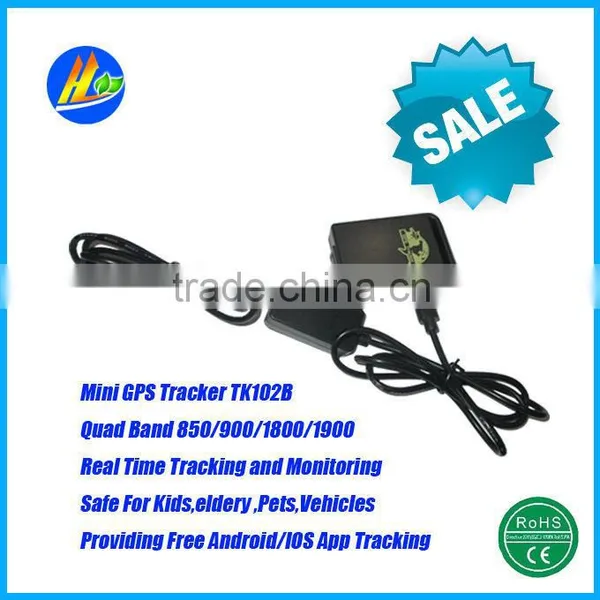

with movement alarm & TF card for cars or human Personal GPS Tracker TK102B
Content |
Specs. |
Dim. |
64mm x 46mm x 17mm(1.8”*2.5”*0.65”) |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS chip |
UBLOX chip |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
Time To First Fix |
Cold status 45s Warm status 35s Hot status 1s |
Car charger |
12—24V input 5V output |
Wall charger |
110-220V input 5V output |
Battery |
Chargeable changeable 3.7V 800mAh Li-ion battery |
Standby |
12 hours |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +55°C |
Humidity |
5%--95% non-condensing |
1.Report Real-time polling: When an authorized number dials up the unit, it will hang up and report a real-time Geo-info.
2.Get location in real street/address name
3.Auto Track: Report a Geo-info at 30s intervals to the authorized numbers for 5 times
4.Voice Surveillance
5.Modes switch between “track” and “monitor”
6.Geo-fenceSet up: a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
7.Movement alert
8.Overspeed alert
9.SOS: Press the SOS for 3 seconds, it will send “help me!+ Geo-info” to all the authorized numbers every 3 minutes. It will stop sending such a SMS when any authorized number reply SMS “help me!” to the tracker.
10.Low battery alert: It begins to alert when it is 3.7V and sends you SMS in 3m interval.
11.Modes switch between “SMS” and “GPRS”.

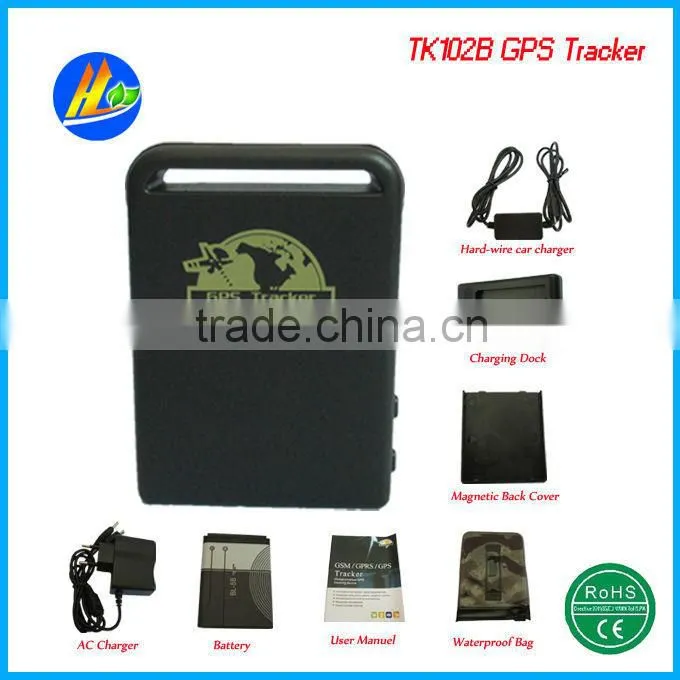

1x GPS tracker TK102B
1x Charging dock
1x AC charger (Australian plug/ Europe Plug / American Plug for your choice )
1x Waterproof bag
1x Magnetic Back Cover
1x Rechargeable Li-ion Batteries 850mAh
1x User Manual ( English version )
1x Quick Reference Guide

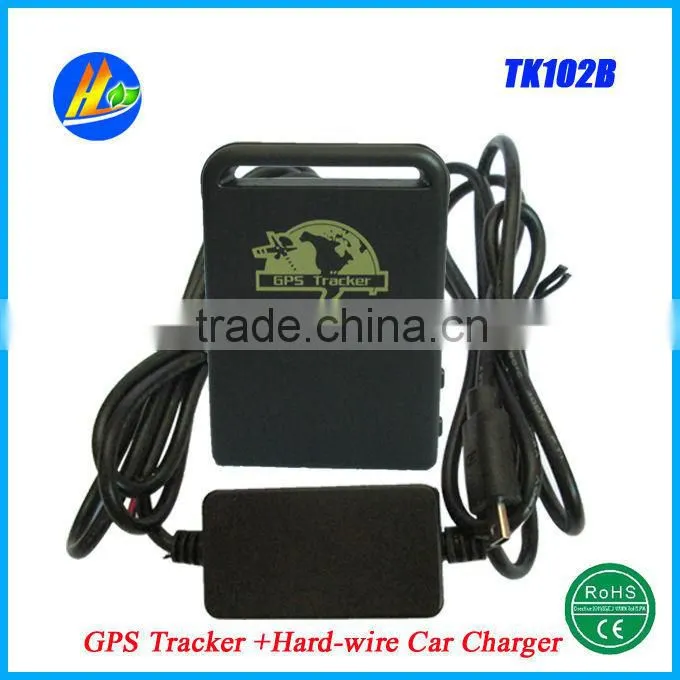

1x Hard wired Car charger .
How long does it take to recharge the battery for this unit?
First use requires 8 - 12 hours charging time, while subsequent usage only needs 3-5 hours of recharging time.
The unit does not pick up a GSM signal and the SMS functions aren't working, what's wrong?
A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work)
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Please check that the local cell network matches the product's GSM standard.
