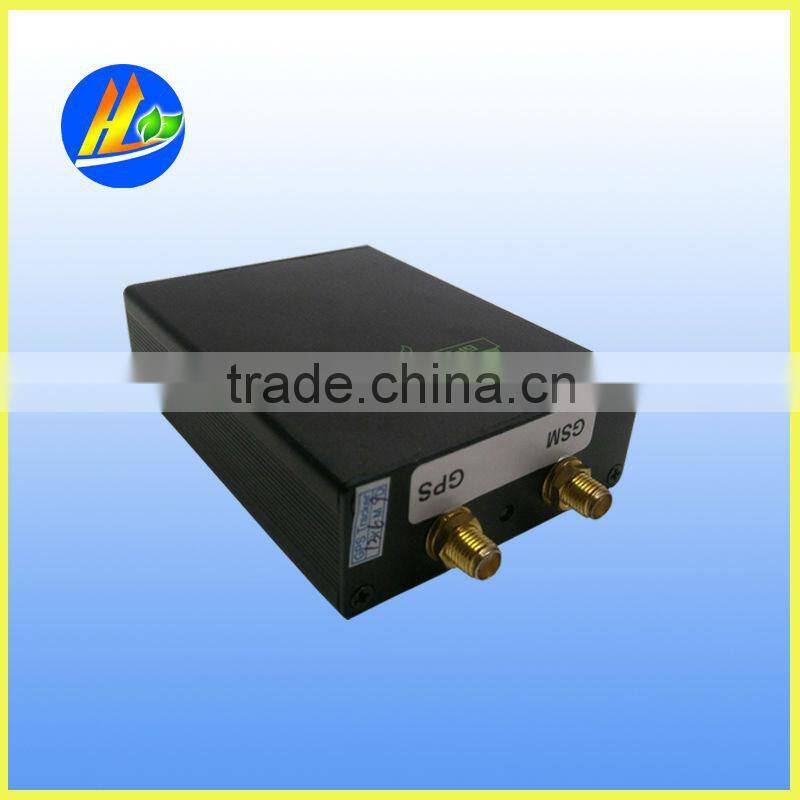

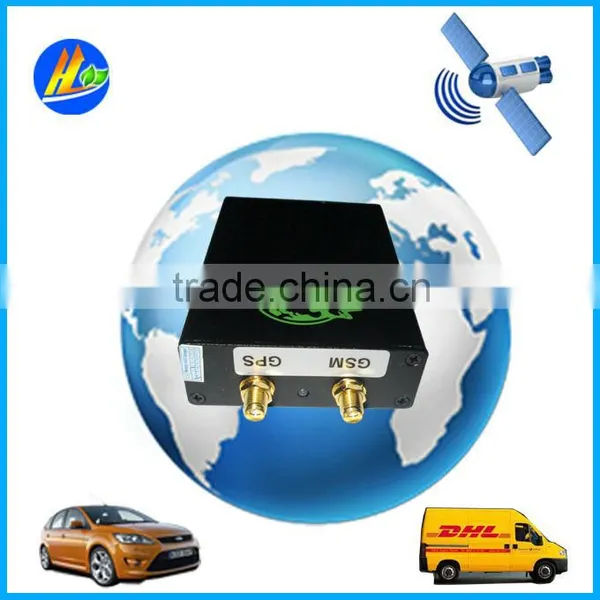

Long Battery Powered GPS Tracking Chip Easy Install Car Gps Tracker

Shenzhen Hangleo Technology Co., Ltd.
Long Battery Powered GPS Tracking Chip Easy Install Car Gps Tracker thumbnail-1
Long Battery Powered GPS Tracking Chip Easy Install Car Gps Tracker photo-1
US$ 35 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, none
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, none
Place of Origin Guangdong, China
Brand Name hangleo
Model Number TK106
Warranty 1 Years

               Long battery powered GPS tracking chip easy install car gps tracker





Specifications :
ItemsSpecification
Work voltageDC 9V to 36V
Operation Temp.-20°C to +70°C
Storage Temp.-40°C to +85°C
 Relative Humidity5% to 90%
Indicator LEDTwo colors indicator: Red(GSM), Green(GPS)
Host dimensions85*66*27mm
Host weight120g
Backup battery 800Mah
GSM ModuleSIMCOM
GPS ModuleU-blox
GPS sensitivityAcquisition sensitivity-148dbm, receiving sensitivity -159dbm
FrequencyGSM/GPRS 850/900/1800/1900MHz
GPS performanceReceive Channels:50channels;cold start:32S;warm start:32S
Hot start:1S;GPS sensitivity:-160dbm;GPS accuracy:<10m
I/OInput : ACC , SOS , Output :  stop engine output ;





Functions
TrackingTracking in real time ,speed and mileage statistics,Geo-fencen setup etc.
Positioning

24-hour satellite positioning; SMS location tracking;  signal real time location tracking;

 GPRS location tracking via time interval .


Control  remotelyStop engine remotely via platform or sms
SMS setting

you could use SMS to setup gps devices ,or use usb cable to configure them direclty

without sending sms .

Cut power line alarmthermostability backup battery ,will be triggered while the power line is removed
Dual mode positioningWhen GPS signal is poor ,the device will switch to base station location
alarm

Over-speed alarm; SOS ; Main power on/off alarm ; ACC on/off alarm; geofence alarm ,

movement alarm etc.

Authorized wiretapping (Voice Monitoring)

The vehicle can be wiretapped as authorized(inside microphone);

SMS set authorized TEL number;

Platform send command to listen

APP TrackingSupport to track the cars/Motorcycle via android / IOS mobile phone
USB CABLE usageconnect with PC USB,setup parameter like apn ip port etc ;upgrade firmware



Long battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps tracker


Free web platform providing :




Long battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps tracker

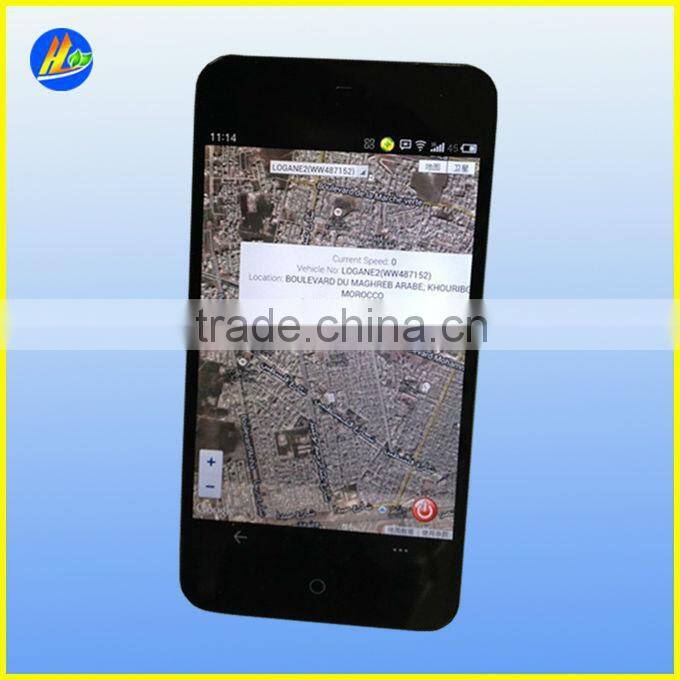

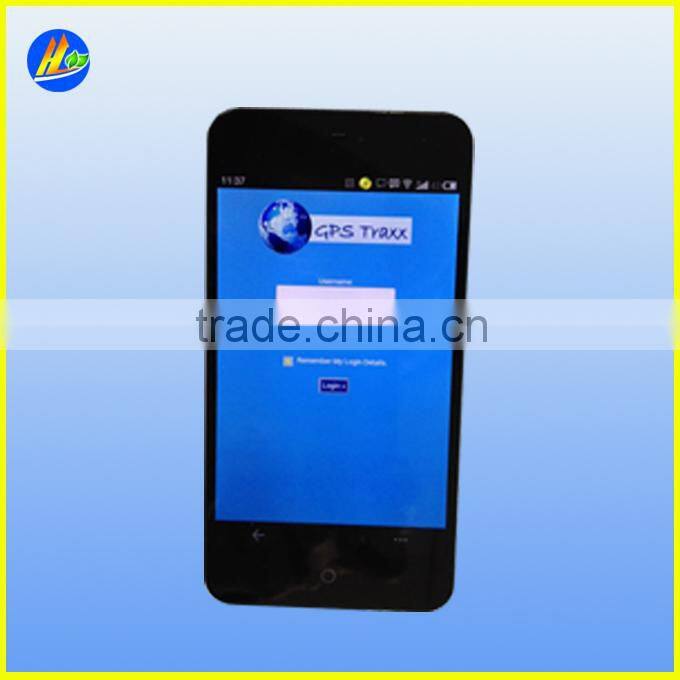

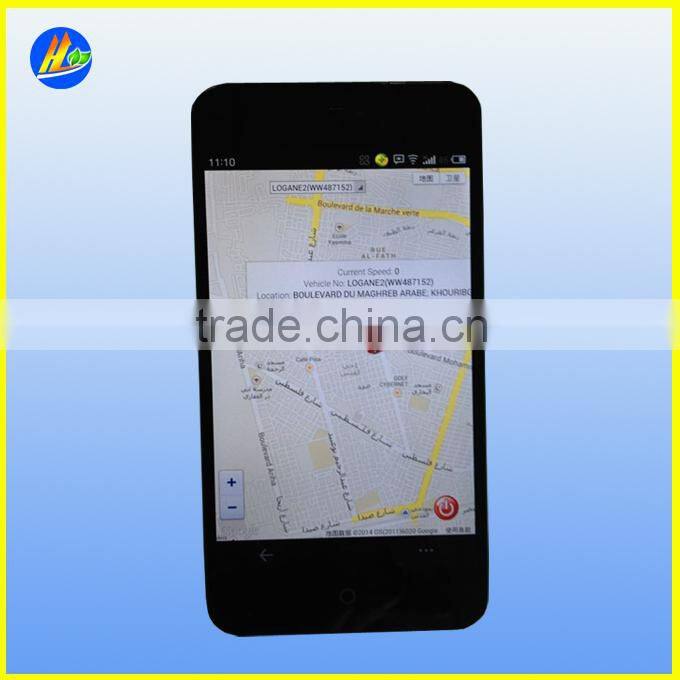

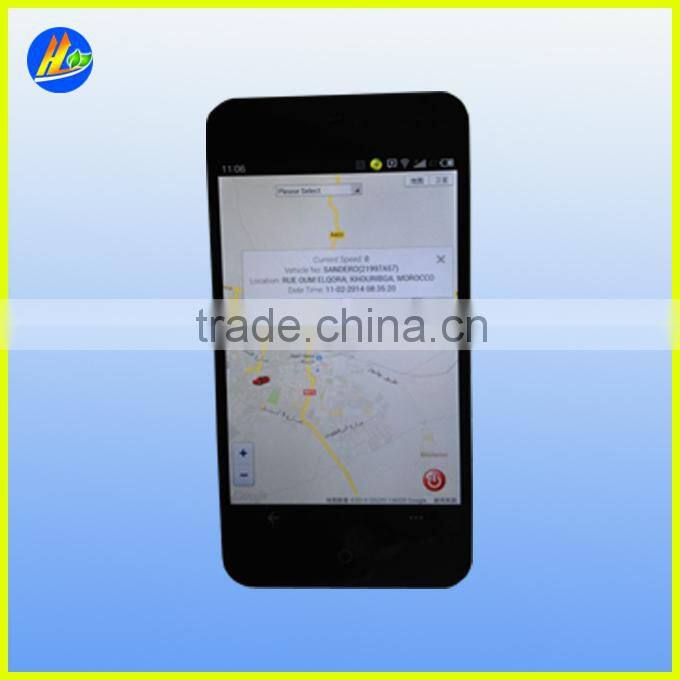

Free mobile APP :

Long battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps trackerLong battery powered GPS tracking chip easy install car gps tracker
