Type Gps Tracker
Use Automotive
Screen Size Other, none
Place of Origin Guangdong, China
Brand Name hangleo
Model Number tk103
Warranty 12 Months

           GPS car tracker easy install GPS GSM tracker tracking car GPS



Introduction:

This tracker TK103 is a new product based on the GSM / GPRS network and GPS satellite positioning system, which
 set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
It can track and monitor remote target by SMS or internet.



Specifications :
Items Specification
Work voltage DC 9V to 36V
Operation Temp. -20°C to +70°C
Storage Temp. -40°C to +85°C
 Relative Humidity 5% to 90%
Indicator LED Two colors indicator: Red(GSM), Green(GPS)
Host dimensions 85*66*27mm
Host weight 120g
Backup battery  800Mah
GSM Module SIMCOM
GPS Module U-blox
GPS sensitivity Acquisition sensitivity-148dbm, receiving sensitivity -159dbm
Frequency GSM/GPRS 850/900/1800/1900MHz
GPS performance Receive Channels:50channels;cold start:32S;warm start:32S
Hot start:1S;GPS sensitivity:-160dbm;GPS accuracy:<10m
I/O Input : ACC , SOS ,                                                                                Output :  stop engine output ;

Functions
Tracking Tracking in real time ,speed and mileage statistics,Geo-fencen setup etc.
Positioning 24-hour satellite positioning; SMS location tracking;  signal real time location tracking; GPRS location tracking via time interval .

Control  remotely Stop engine remotely via platform or sms
SMS setting you could use SMS to setup gps devices ,or use usb cable to configure them direclty without sending sms .
Cut power line alarm thermostability backup battery ,will be triggered while the power line is removed
Dual mode positioning When GPS signal is poor ,the device will switch to base station location
alarm  Over-speed alarm; SOS ; Main power on/off alarm ; ACC on/off alarm; geofence alarm ,movement alarm etc.
Authorized wiretapping (Voice Monitoring) The vehicle can be wiretapped as authorized(inside microphone); SMS set authorized TEL number; Platform send command to listen
APP Tracking Support to track the cars/Motorcycle via android / IOS mobile phone
USB CABLE usage connect with PC USB,setup parameter like apn ip port etc ;upgrade firmware

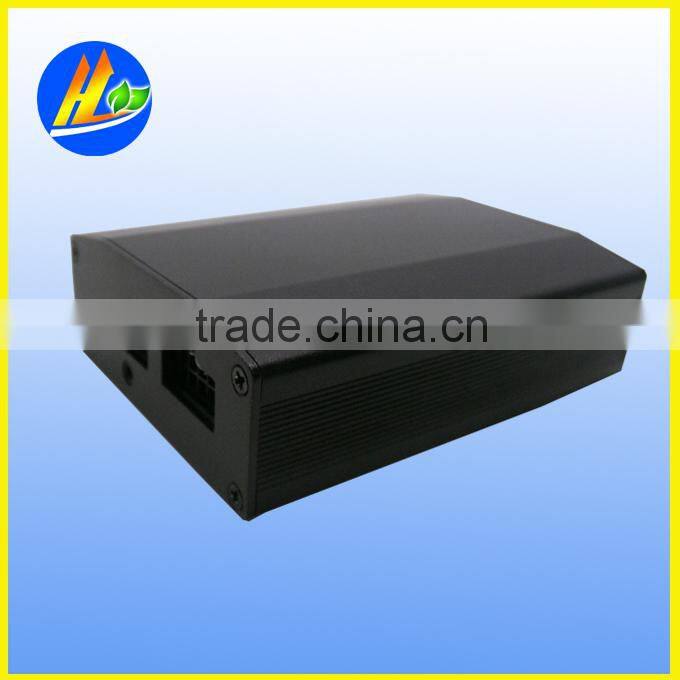

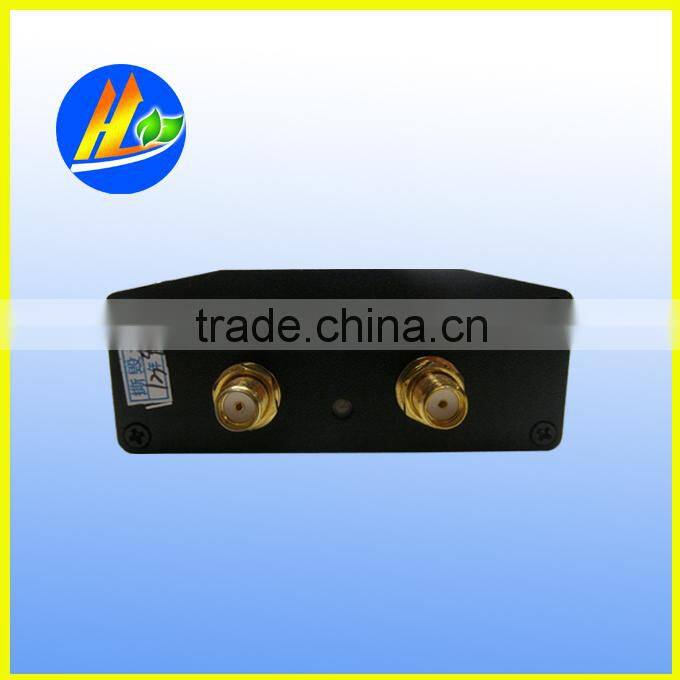

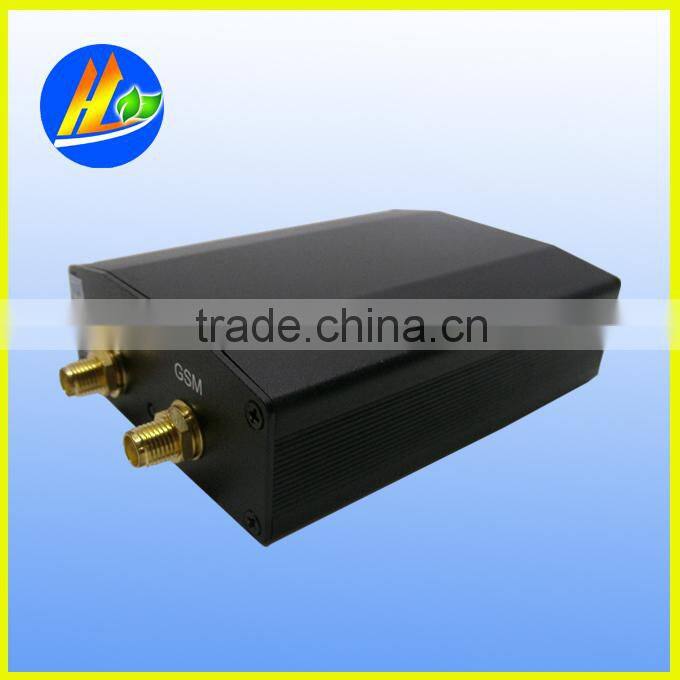

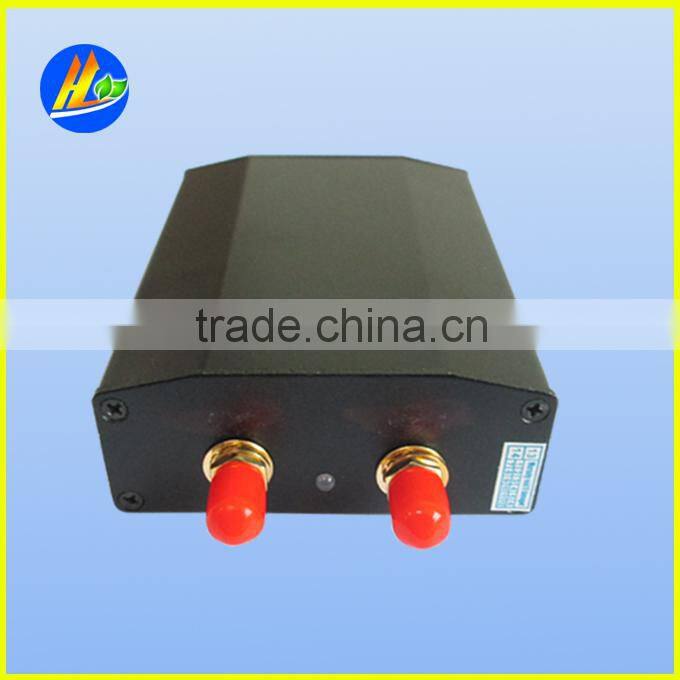

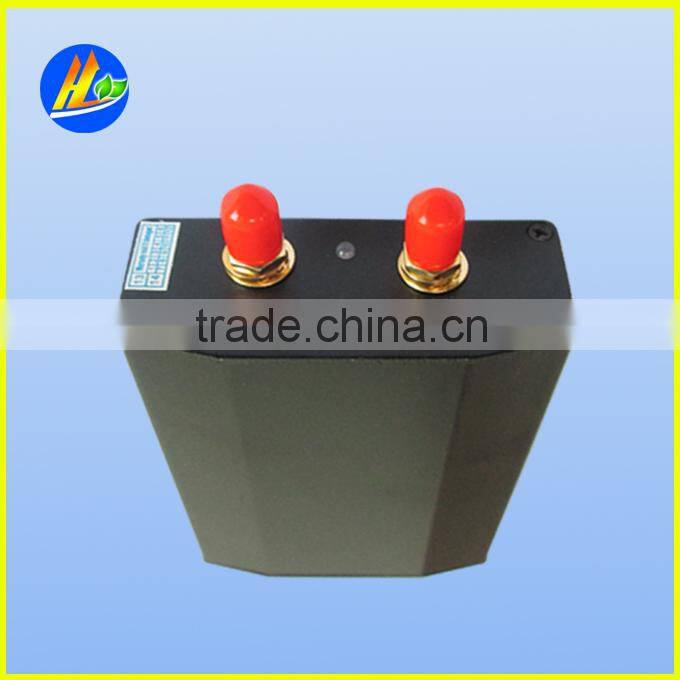

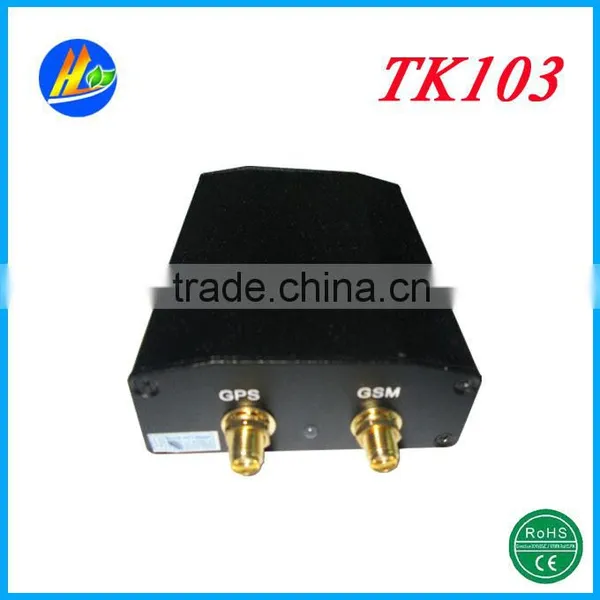

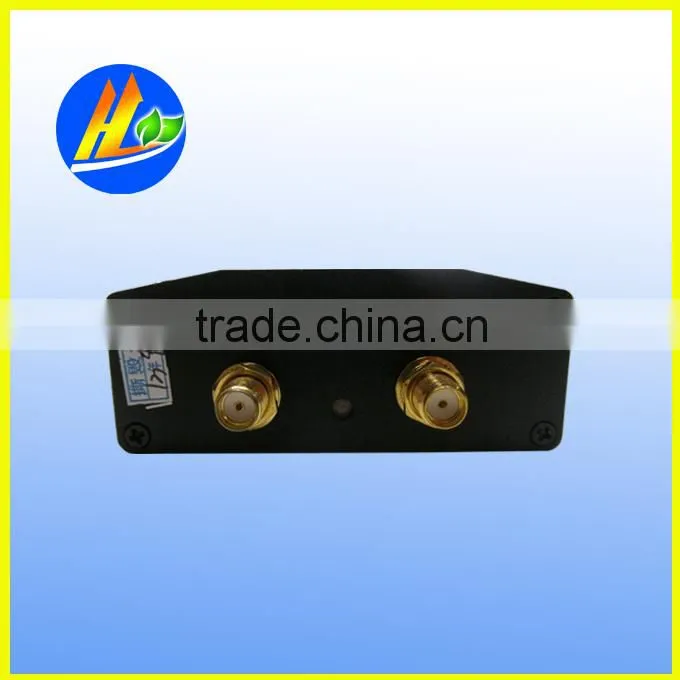

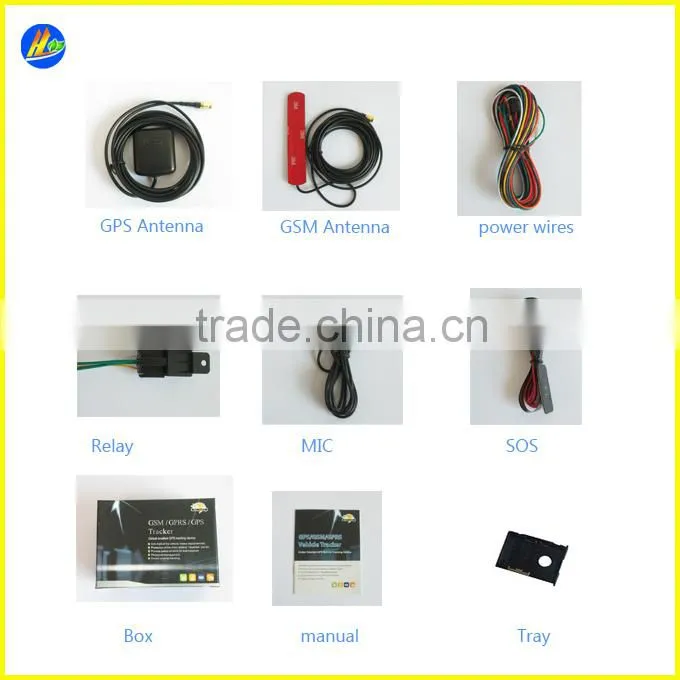

Vehicle GPS Tracker tk103 products showcase :



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS





GPS car tracker easy install GPS GSM tracker tracking car GPS

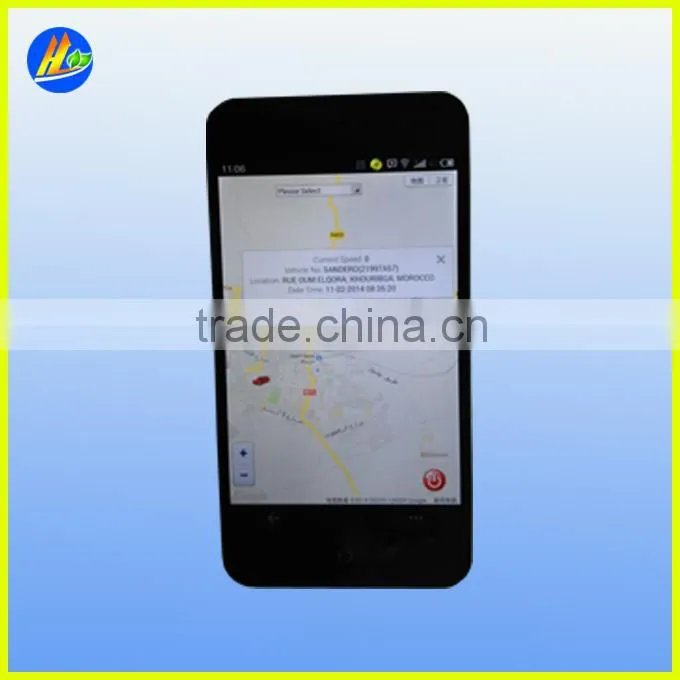

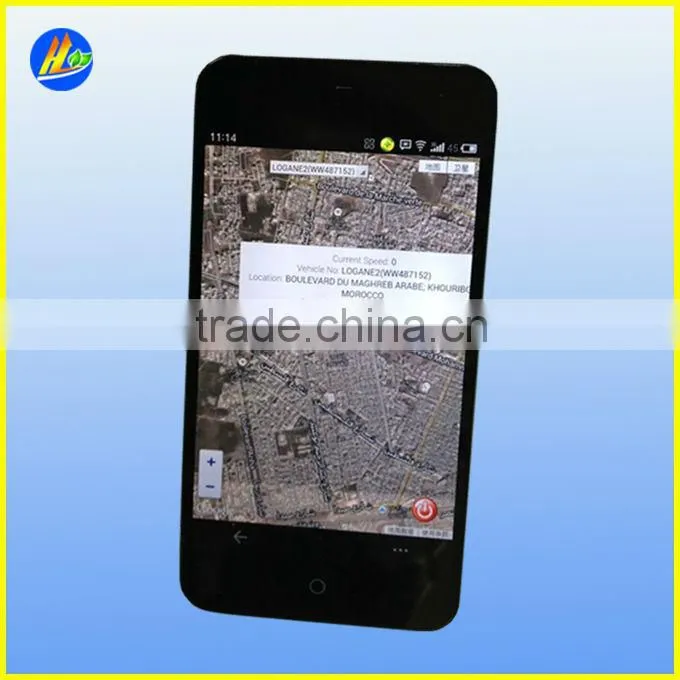

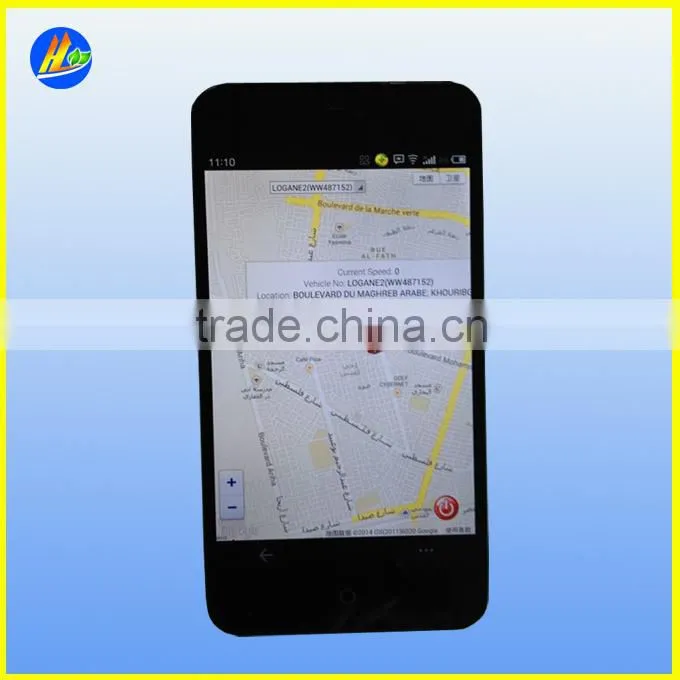

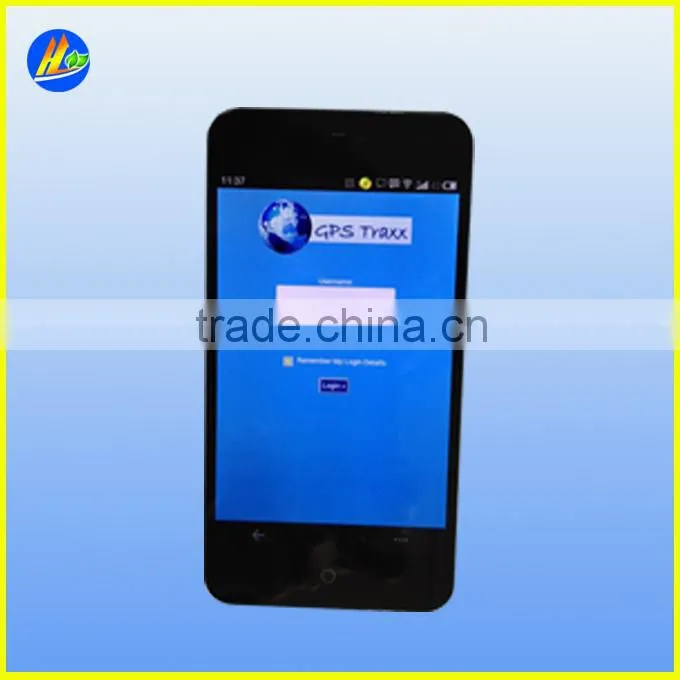

Free Mobile APP Tracking provide :



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



GPS car tracker easy install GPS GSM tracker tracking car GPS



This is Vicky chan,serve you any time,pls contact us for more information,thanks.
