Tk103 Gps Tracker With ACC ON/OFF ALARM

Tk103 Gps Tracker With ACC ON/OFF ALARM thumbnail-1
Tk103 Gps Tracker With ACC ON/OFF ALARM photo-1
US$ 35 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, none
Contact Supplier Request Quote Chat Now
Shenzhen Hangleo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, none
Place of Origin Guangdong, China
Brand Name hangleo
Model Number TK103
Warranty 1 Years

Specifications

tk103 gps tracker
1.pass ce rohs
2.real time tracking via android mobile phone or free system
3.stop engine
4.free APP

tk103 gps tracker with ACC ON/OFF ALARM



tk103 gps tracker with ACC ON/OFF ALARM

Operating temperature -15 Centigrade to 80 Centigrade
Storage temperature -15 Centigrade to 85 Centigrade
Operating humidity 0% ~ 90% (Non-water vapor condensing)
Power voltage 9V ~ 40V
Back up battery 750mAH Lithium battery
GSM Module SimCom, GSM850/900/1800/1900 (MHz)
GPRS connectivity GPRS multi-slot class 10, GPRS mobile station class B
GPS antenna Impedance 50 ohms
GPS Module U-blox
GPS sensitivity Acquisition sensitivity-148dbm, receiving sensitivity -159dbm
Position accuracy 10m
SIM card connector voltage 3V
acquisition Hot start 1s, warm start 38s, cold start 42s
Indicator LED Two colors indicator: Red(GSM), Green(GPS)





tk103 gps tracker with ACC ON/OFF ALARM

Positioning 24-hour satellite positioning
1. SMS location tracking
2. signal real time location tracking
3. GPRS location tracking via time interval
Authorized wiretapping (Voice Monitoring)

The vehicle can be wiretapped as authorized

(inside microphone)
SMS set authorized TEL number
Platform send command to listen
Alarm 1.Over-speed alarm
2. SOS
3. Main power on/off alarm
4. Engine on/off alarm
5. Geo-fence alarm
Input 1. ACC
2. Door sensor
3. SOS
Output 1. remotely control fuel (with relay)
2. remotely control electricity (with relay)
Parameters setting 1. set tracker SMS password
2. set SOS and wiretapping TEL number
3. set over-speed value
4. set position report time interval

5. set GPRS position report mode when car moves

 and stops

6. SMS or Platform(GPRS) remotely reboot tracker
7. SMS or Platform (GPRS) remotely set server IP, Port.
Memory data log

When tracker is under GSM blind area, inside flash

will store the location data,

and then tracker will report data to platform when

GSM signal is available.
Monitoring (listenning the voice)

use the authorized phone number to dial the no.

in device ,

it will answer calling
USB Convertor and USB Cable Connect to PC USB
1. Set IP, port, APN, tracker interval, over-speed, alarm SMS notice
2. Upgrade firmware



tk103 gps tracker with ACC ON/OFF ALARM

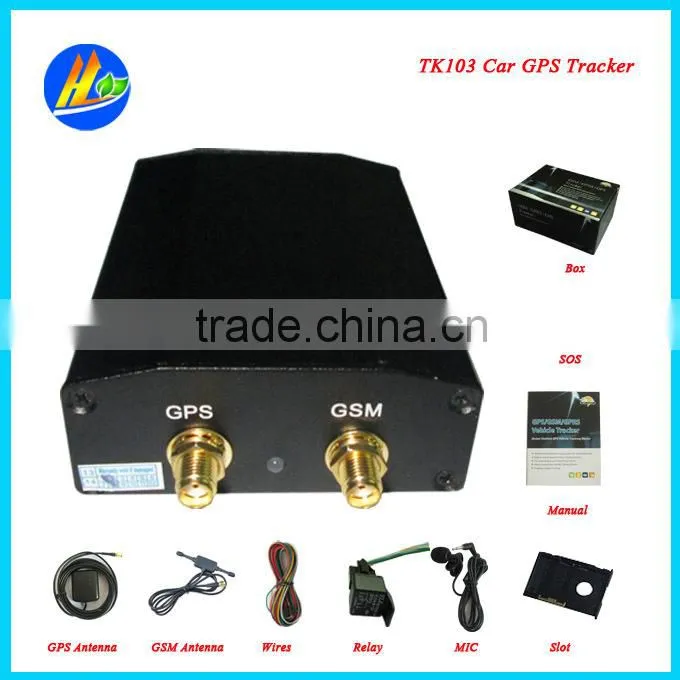

1*GPS Tracker TK103

1*POWER WIRES

1*SOS line

1*Relay

1*MIC

1* GSM Antenna 3 meters long

1*GPS Antenna 3 meters long

1*english user manual

1*Box

1*Tray



tk103 gps tracker with ACC ON/OFF ALARM



tk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARM

tk103 gps tracker with ACC ON/OFF ALARM



tk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARM


tk103 gps tracker with ACC ON/OFF ALARMtk103 gps tracker with ACC ON/OFF ALARM
