Home > Electrical & Electronics > GPS > GPS Navigator > GSM Car Alarm System TK103 GSM GPS Tracker Cars Monitor

GSM Car Alarm System TK103 GSM GPS Tracker Cars Monitor

GSM Car Alarm System TK103 GSM GPS Tracker Cars Monitor thumbnail-1
GSM Car Alarm System TK103 GSM GPS Tracker Cars Monitor photo-1
US$ 35 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, none
Contact Supplier Request Quote Chat Now
Shenzhen Hangleo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, none
Place of Origin Guangdong, China
Brand Name hangleo
Model Number TK103
Warranty 1 Years

                       Car  GSM Car Alarm System TK103 GSM GPS Tracker

                                        Cars Monitor



Specifications :
Items Specification
Work voltage DC 9V to 36V
Operation Temp. -20°C to +70°C
Storage Temp. -40°C to +85°C
 Relative Humidity 5% to 90%
Indicator LED Two colors indicator: Red(GSM), Green(GPS)
Host dimensions 85*66*27mm
Host weight 120g
Backup battery  800Mah
GSM Module SIMCOM
GPS Module U-blox
GPS sensitivity Acquisition sensitivity-148dbm, receiving sensitivity -159dbm
Frequency GSM/GPRS 850/900/1800/1900MHz
GPS performance Receive Channels:50channels;cold start:32S;warm start:32S
Hot start:1S;GPS sensitivity:-160dbm;GPS accuracy:<10m
I/O Input : ACC , SOS , Output :  stop engine output ;





Feature:

1.Tracking:Tracking in real time ,speed and mileage statistics,Geo-fencen setup etc.



2.Positioning:24-hour satellite positioning; SMS location tracking;  signal real time location tracking;

 GPRS location tracking via time interval .



3.Control  remotely:Stop engine remotely via platform or sms



4.SMS setting:you could use SMS to setup gps devices ,or use usb cable to configure them direclty

without sending sms .



5.Cut power line alarm:thermostability backup battery ,will be triggered while the power line is removed



6.Dual mode positioning:When GPS signal is poor ,the device will switch to base station location

alarm :Over-speed alarm; SOS ; Main power on/off alarm ; ACC on/off alarm; geofence alarm ,

movement alarm etc.



7.Authorized wiretapping (Voice Monitoring):The vehicle can be wiretapped as authorized(inside microphone);

SMS set authorized TEL number; Platform send command to listen



8.APP Tracking:Support to track the cars/Motorcycle via android / IOS mobile phone



9.USB CABLE usage:connect with PC USB,setup parameter like apn ip port etc ;upgrade firmware

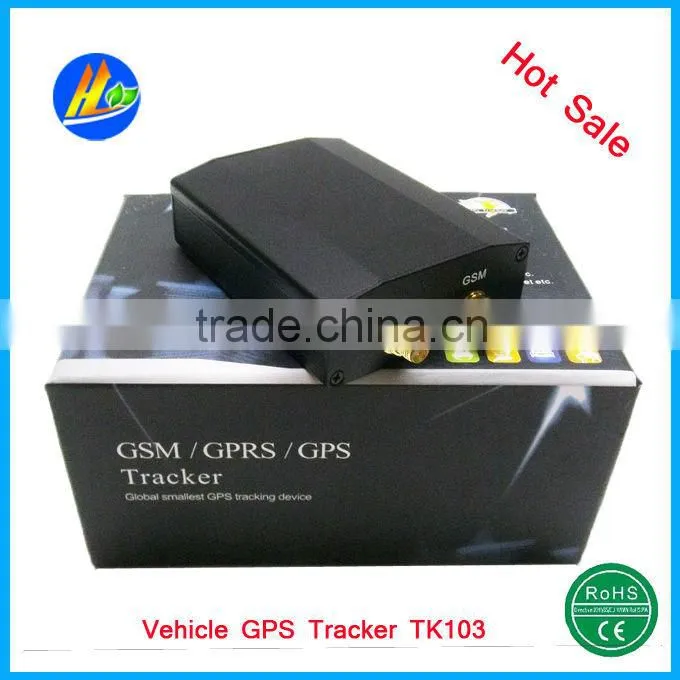

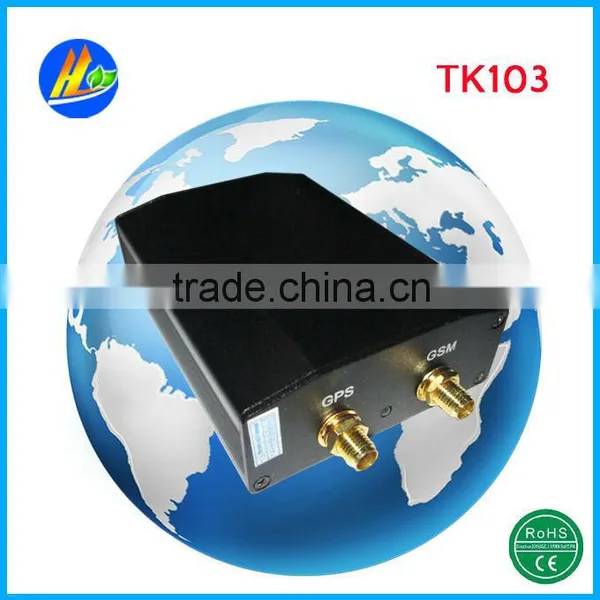

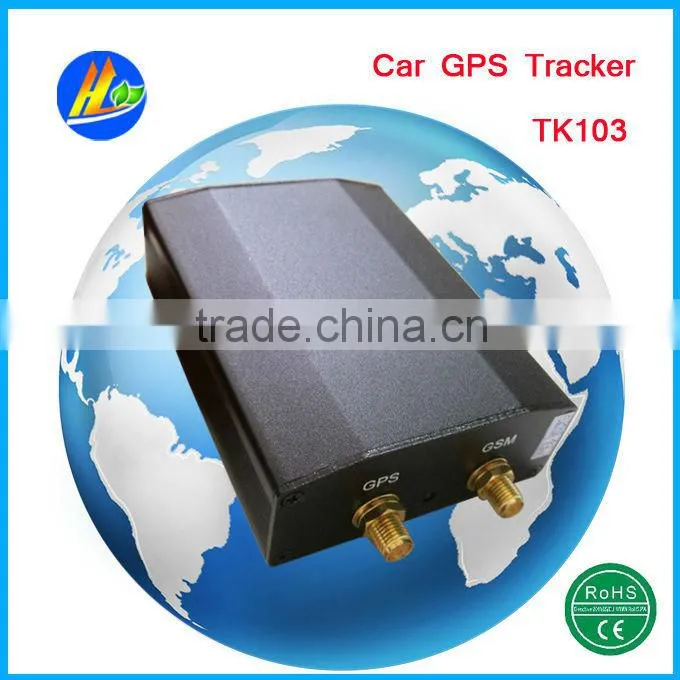

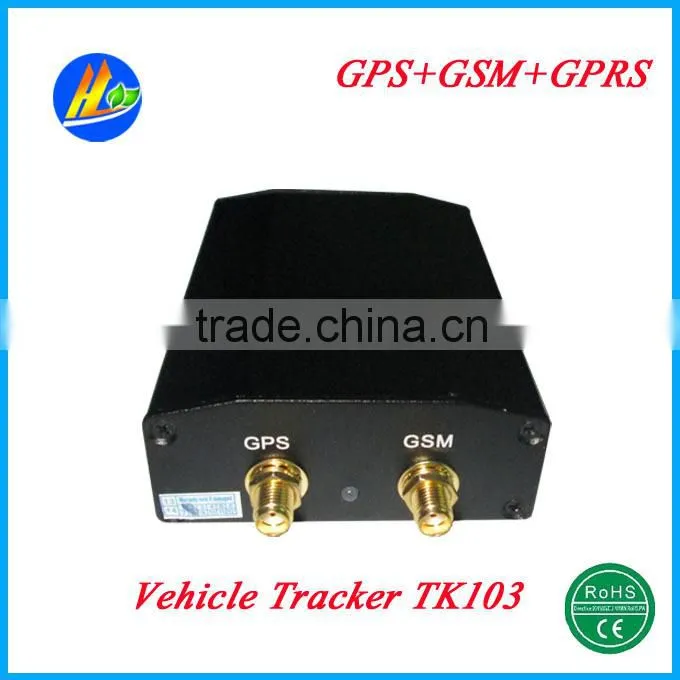

GPS Tracker TK103 Show Case:

 GSM Car Alarm System TK103 GSM GPS Tracker Cars MonitorGSM Car Alarm System TK103 GSM GPS Tracker Cars MonitorGSM Car Alarm System TK103 GSM GPS Tracker Cars Monitor


  GPS Tracker Real-time Tracking Software:


GSM Car Alarm System TK103 GSM GPS Tracker Cars MonitorGSM Car Alarm System TK103 GSM GPS Tracker Cars MonitorGSM Car Alarm System TK103 GSM GPS Tracker Cars Monitor

This is Vicky chan,serve you in any time,welcome your inquiry,thanks.



Skype:hanleo.chan



Tellphone: 0086 18688921061 (Whatsapp,Viber,Wechat)



More GPS Tracker models information pls contact us anytime.

We will get back to you as soon as possible.Thank you.
