Negotiable
MOQ: 25 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
JCTT
Model Number:
XH50.177Z.01L / 02L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangxi, China
Brand Name
JCTT
Model Number
XH50.177Z.01L / 02L
Gearing Arrangement
Spur
Output Torque
40
Rated Power
50HP
Input Speed
540 r.p.m
Output Speed
ratio(i): 1:1.77
Specifications

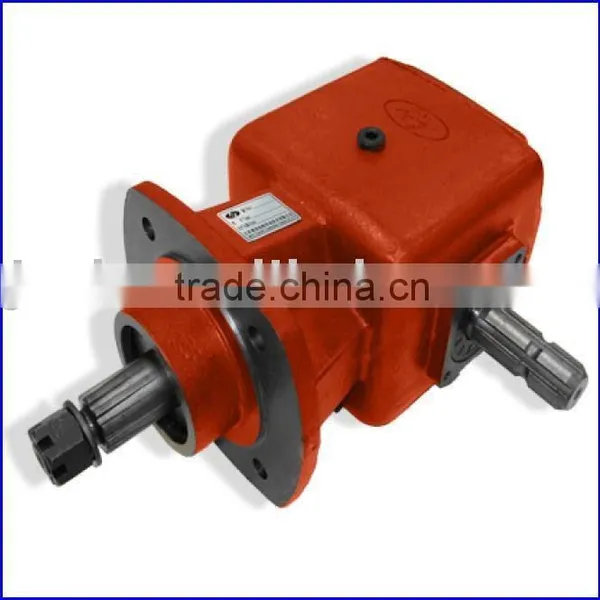

Mower gearbox;1. ratio: 1:1.77; 50 HP;
2. High quality, low noise;
3. Mature techniques;
4. Export to Europe & America,etc.
This series Mower gearbox is self-developed. With its characteristics of high universality, simple structure, good performance, etc, it is widely used in garden machines and other agricultural machines.
| Code | Input Power (HP) | Input Speed (r.p.m.) | Gear Ratio (i) | Output Torque (da Nm) | Weight (kg) |
| XH30.192Z.01L | 30 | 540 | 1:1.92 | 20 | 16.4 |
| XH30.147Z.01L | 30 | 540 | 1:1.47 | 16.4 | |
| XH40.192Z.01L | 40 | 540 | 1:1.92 | 23.8 | |
| XH40.192Z.03L | 40 | 540 | 1:1.92 | 23.8 | |
| XH50.100Z.01L | 50 | 540 | 1:1 | 29 | |
| XH50.147Z.01L | 50 | 540 | 1:1.467 | 29 | |
| XH50.169Z.01L | 50 | 540 | 1:1.692 | 29 | |
| XH50.177Z.01L | 50 | 540 | 1:1.77 | 29 | |
| XH50.177Z.02L | 50 | 540 | 1:1.77 | 29 | |
| XH50.215Z.01L | 50 | 540 | 1:1.215 | 29 |
