Complete Bottled Mineral Water Plant Machinery Cost (Hot Sale)

Specifications

Mineral water plant machinery cost /Water treatment plant /Water treatment equipment

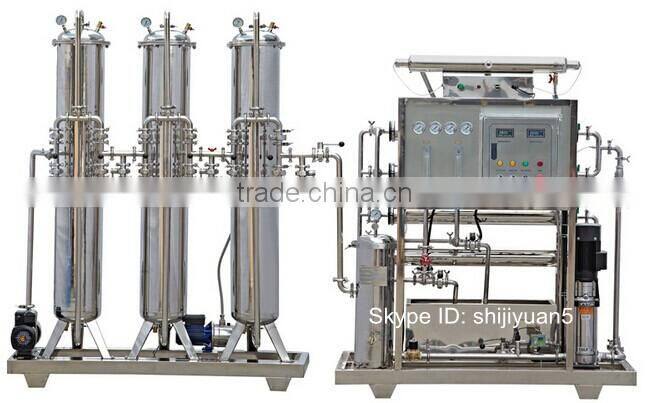

RO water treatment equipment is for producing drinking water, mainly for foods factory, beverage factory, fruit & vegetable factory etc. This machine is integrated into a group, the assembly and transportation is rather convenient.

How the reverse osmosis system works
A semi permeable membrane in a reverse osmosis system only allows certain things to pass through. This membrane passes water easily but also prevents many other contaminants from passing by trapping them. Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals. The water in the less concentrated solution tries to dilute the more concentrated solution. Water will pass through the membrane from the lower concentration side to the greater concentration side. The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.

Technical route and flow diagram instructions
The technical route is as following.
Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Anti-scalant
dosing-->Sediment filter-->High pressure pump-->RO desalination device-->Permeate tank

Material of construction
Skid Frame: SS304
Membrane Elements: HYDECANME
Membrane Housings: SS304
Low pressure piping: SS304
High pressure piping: SS304

Pump and motor
Pump: 304SS vertical multi-stage centrifugal
Motor: TEFC, 380/220 VAC, 3-phase, 50/60 Hz

Standard features

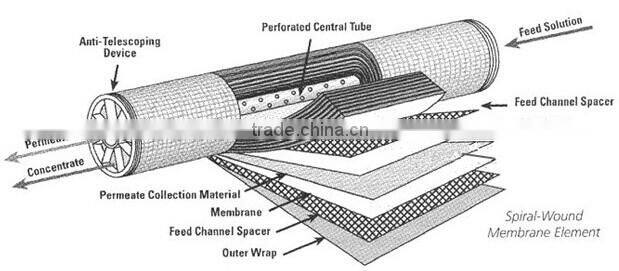

8" x 40" High rejection membrane elements
5-micron sediment pre-filter housing
Automatic inlet solenoid valve
PLC control
Product water conductivity monitor
Operating pressure gauges
Product and concentrate flow meters
Concentrate and recycle flow control valves
Low inlet pressure switch with shutdown alarm
Auto/Manual washing

Atmospheric storage tanks with level control and repressurization pump
Pressurized storage vessels
Ozone generator/UV sterilizer

We supply complete bottled drinking water production line, juice production line & carbonated soft drink production line (for 15years). It is plastic bottle packaging. We have 1000-2000bottles/hour, 3000-4000bottles/hour, 5000bottles/h, 10000bottles/hour and so on. Which capacity would you prefer? Please mail us below and I will send quotation with detailed pictures & technical data to your email. thank you!

Complete water production line include raw water pump, sand filter, carbon filter, sodium ion exchanger, reverse osmosis system, ozone generator, bottle filling and packaging system and so on. It is specially designed for producing bottled water beverage.

Main equipments as below:

1. Water treatment system (quartz sand filter, active carbon filter, softner, RO system and so on)

2. Ozone generator sterilizer

3. Aseptic water storage tank

4. Auto bottle washing, filling and capping line

5. Labeling machine

6. Date of manufacture printer

7. Final products film packaging machine and so on.

Complete fruit juice production line include fruit juicing machine, pure water treatment, juice flavour blending tank, juice sterilizer, juice bottle filling and packing system and so on. It is specially designed for producing bottled juice beverage.

Main equipments as below:

1. Fresh fruit washing, cracking and juicing machine

2. Pure water treatment system

3. Water storage tank

4. Syrup melting pot

5. Anti-heat Pump

6. Juice flavor blending tank

7. Homogenizer

8. High temperature sterilizer

9. CIP pipe cleaning machine

10. Auto bottle washing, filling and capping line

11. Labeling machine

12. Date of manufacture printer

13. Final products film packaging machine and so on.

Complete carbonated drinks production line include water treatment system, sugar melting tank, flavour blending tank, Co2 drink mixer, water chiller, bottle filling and packing system and so on.

Main equipments as below:

1. Water treatment system (quartz sand filter, active carbon filter, softner, RO system and so on)
2. Ozone generator sterilizer
3. Aseptic water storage tank
4. Sugar melting tank & syrup filter
5. Flavour blending tank & syrup cooler
6. Co2 drink mixer & Co2 filter
7. Water chiller
8. Auto bottle washing, filling and capping line
9. Labeling machine
10. Date of manufacture printer
11. Final products film packaging machine and so on.
