Specifications
bottle making machine1.4 cavities and the maximum capacity of the products is 2L.
2.max output is 4500-5000bottles /hour
rotary blow molding machine

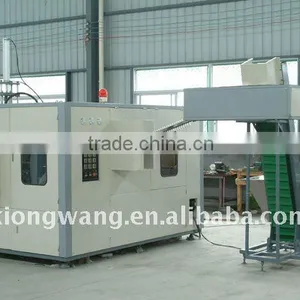

ZQ-R Series is the most stable two-step fully automatic pet stretch blow molding machine. It has four cavities and the maximum capacity of the products is 2L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
High capability/price ratio PET processing machines are praised as reliable products by our customers. The automatic blowing machine series have powerful productivity but with very reasonalbe price
Features:
1.Rotary blowing method with high efficiency and output speed to reach 99.5% productivity
2.SIEMENS electric control system with quick action and high accuracy
3.German imported air-valve, cylinder, SEW brand motor and trequency-transfer applied to keep stable operation and stretch
4.Quick mould exchanging system makes mould changing easily
5.Professionally designed robot sends preform and takes bottle out automatically and accurately
6.PHILIPS infrared ray lamps with automatic feedback compensation applied in heating system for bearing of heat and keeping heating steady
Settings:
a).PLC colour display: SIEMENS (GERMANY)
b).Pneumatic parts:FESTO(GERMANY)
c).Controller of preform transfer:Servo motor DELTA(TAIWAN)
d).Other electric parts are all world-famous brand
Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.2 percent.
