Specifications
beer1,Filling beer
2,Bottle:glass
3,Capacity:5000BPH
4,Cap type:crown cap
Beer
This equipment is specially designed for filling wine in glass bottles. Rotary auto bottle washing, star wheel conveying, normal pressure filling and aluminum cap sealing are integrated into one unit.

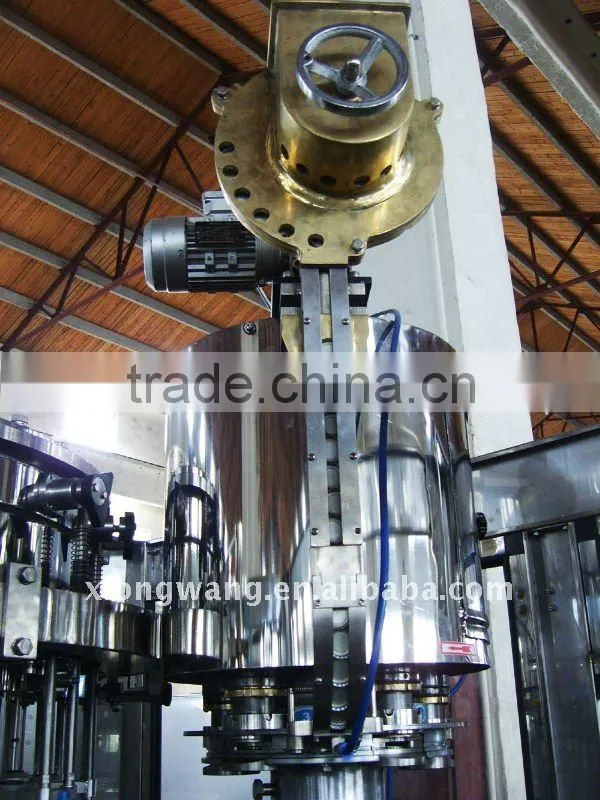

Photo show1:washing

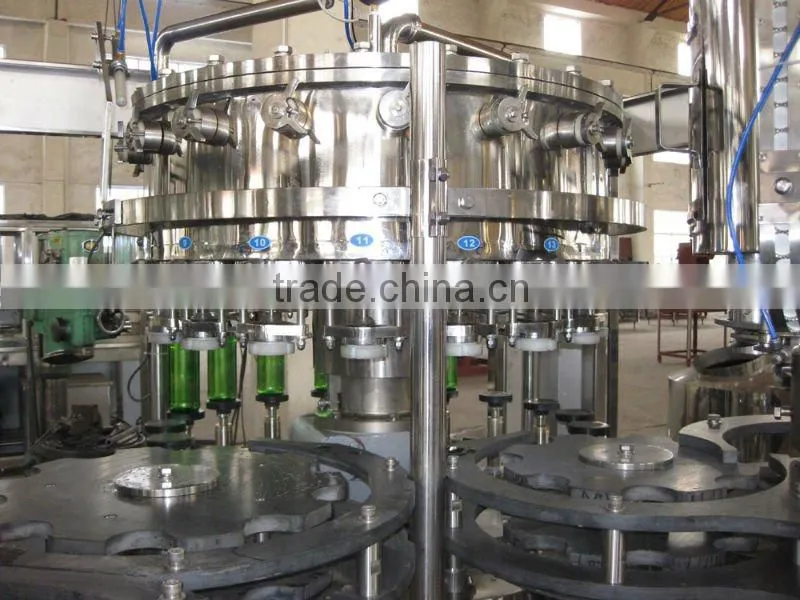

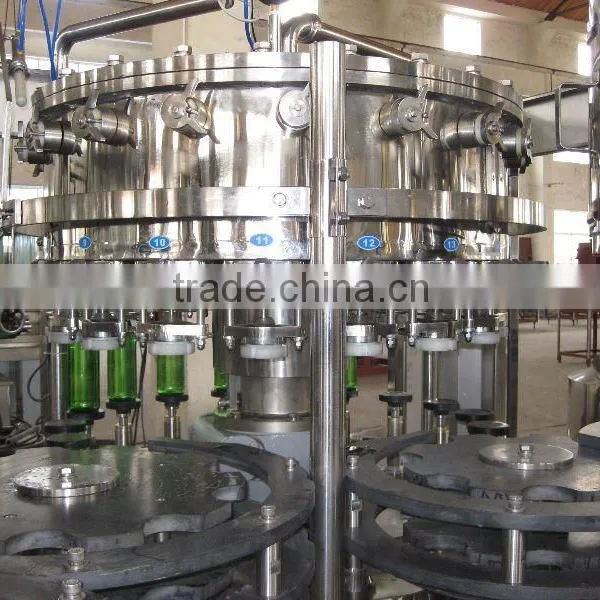

Photo show2:filling

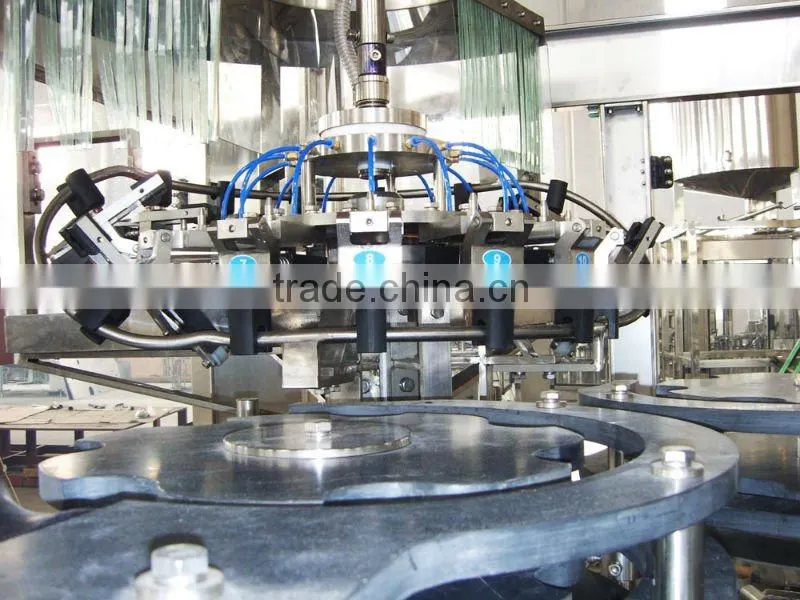

Photo show3: capping
Main Technology Parameter:
1. Output: 5000 BPH / 500 ml / glass bottles
2. Heads number
Rinsing head: 18heads
Filling head: 18heads
Heads of Sealer: 6 heads
3 .Suitable bottle: Glass bottle
Diameter scale of bottle :D=57-78mm
Bottle height scale :H=210-300mm
4.Power :work voltage(AC):380v
Fitted capacity: Main motor:2.2KW
Washing pump:0.37KW
Filling pump:0.37KW
5.Consumption :
Pressured air pressure :0.3Mpa
Used volume:0.2-0.4Nm3/min
6.Overall size: L*W*H:2800*1850*2600mm
7.Weight :2900Kg
