Beer Filling Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	xiongwang
Model Number	DGX18-18-6

Product Description

Specifications

1 Material: stainless steel SUS304
2 Capacity:4000BPH/500ML
3 Control:Mistubishi,Omron,Seimens
4 Full automatic/Monobloc

Parameters:

Model

DGX

14-12-4

DGX

18-18-6

DGX

24-24-6

DGX

32-32-8

DGX

40-40-10

DGX

60-50-15

Capacity

BPH/500ml

2000

5000

8000

11000

14000

18000

Filling Pressure

(MPa)

0.4

Applicable Bottle Type

Bottle Diameter: 50-100 mm Bottle Height : 150-320 mm

Volume: 330-1500 ml

Applicable Cap Shape

Plastic Screw Cap

Gas Source Pressure

(MPa)

0.6

Gas Consumption

(m³/min)

0.2

0.3

0.4

0.5

0.55

0.6

Total Power

(KW)

4.6

5.03

6.4

8.07

9.56

11.18

Total Weight

(kg)

2500

4200

5800

7000

9000

12000

Outer Dimension

(mm)

2350*

1700*

2150

2830*

2030*

2030

3220*

2400*

2600

3450*

2510*

2710

3800*

2800*

2710

4510*

3400*

2900

Features:

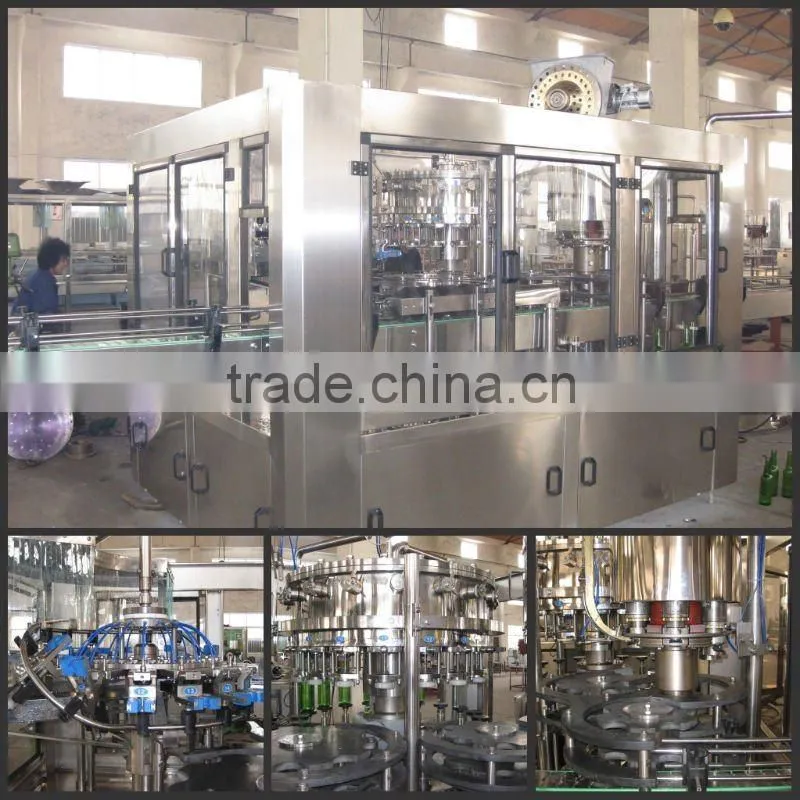

Beer filling machine

The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.

And the whole process is automatic. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new model is adopted.

The output and benefit of the machine is higher than the machines of the same specifications.

The advanced OMRON programmed controller (PLC) is adopted to control the machine running automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speeds and coordinated with transducer of the main machine to make the operations of moving bottle forward steadily and reliable.

It is convenient to operate with higher automation due to every part for the machine is inspected to run with photo electrical detector. The machine is ideally preferred equipment for beverage makers.

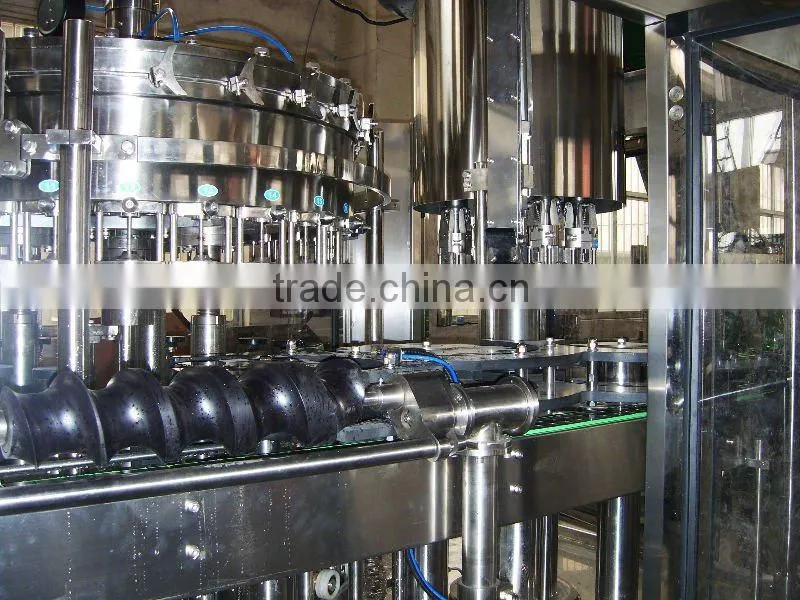

Photo show1:washing

washing

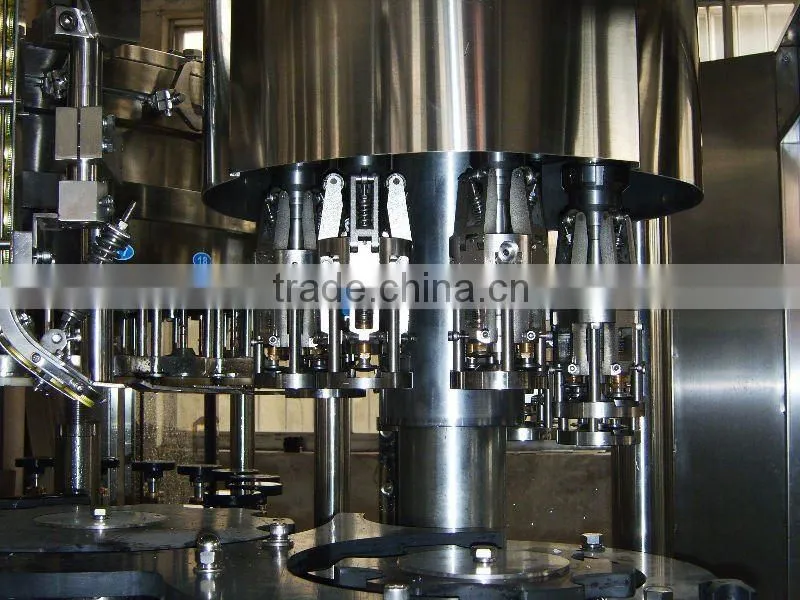

Photo show2:filling

Photo show3: capping
