Description

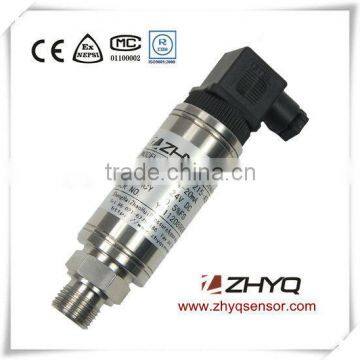

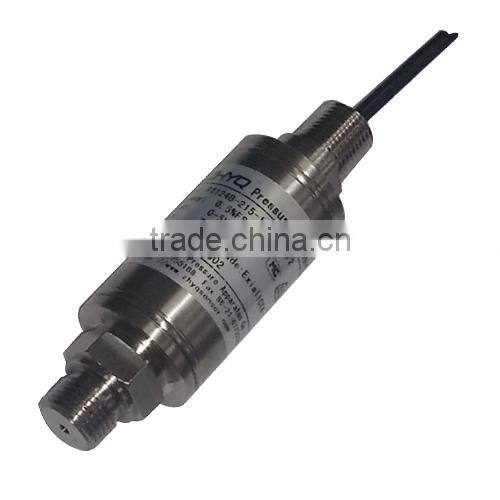

PT124B-215 is all welding explosion proof pressure transmitter for hazardous field , this series is all welding explosion proof pressure transmitter , this explosion proof pressure transmitter with stainless steel welding encapsulated component and lightning proof isolation device, PT124B-215 (Explosion Proof:EXiallCT4-6) has the character of corrosion proof, wide range temperature compensation, excellent linearity and diversifying output signal .This explosion proof pressure transmitter can be suitable for liquid pressure measuring for explosion proof in hazard fields,special for coal & mine .
Feature
Widely pressure range from -1 to 6000 bar
Various standard Industrial signal output
All stainless steel and anticorrosive
Stronger anti-jamming ability
High stability & high sensitivity
Intrinsically safe & explosion proof construction
pressure transmitter explosion proof grade : Exia llCT4
Application
Coal & mine hazard filed
Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial application
Specification
Name |
all welding explosion proof pressure transmitter for hazardous field |
| Model | PT124B-215 |
Range: |
-1~0~6000bar |
Accuracy: |
0.5%FS; 1%FS |
Nonlinearity: |
0.2%FS |
Reliability: |
0.2%FS |
Output: |
4-20mA,0-10V, 0-5V, 1-5V ,0.5-4.5V |
Input voltage: |
24VDC ( 4-20mA,0-10V, 0-5V ,1-5V output ) 5VDC ( 0.5-4.5V output ) |
Operate Temperature: |
-20~80°C |
Compensated temperature: |
0~75°C |
Overload pressure: |
150%FS |
Medium material: |
stainless steel (SS304 or SS316) |
Electric connector: |
1/2NPT cable |
Process connector: |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Housing Shell Diameter: |
26mm , 38mm ,41mm optional |
Dimension
Remarks
The explosion proof pressure transmitter standard accuracy is 0.5%, and size diameter is 38mm ,if you need special ( 26mm,41mm),when order ,please mention it , and we will send you the drawing to confirm .
Order Guide with * are required, with --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-215 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-215-60Bar-4/20mA-G1/2-Hirschmann-0.5%-41 | |||||||
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
