Specifications
Alarm relayMechanical design
Customized available
CE,ISO9001 Certification
Output: contact switch signal

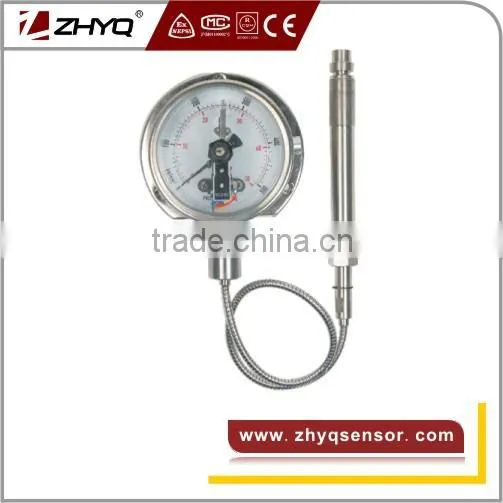

Melt Pressure Gauge design for Non-woven fabrics PT124Y-616
Description
PT124Y-616 magnetic contact flexible stem&analog dual output pressure gauge with signal and electric contact output
Adopts the original German packaging machine stamen, isolated diaphragm and all stainless steel structure.
With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
The pressure gauge withdouble output built in high-precision magnetic contact and pressure sensor.
Application
Plastic injection molding
Chemical fibre and filature
Rubber & plastic machinery
Compression moulding machine
The equipment of high temperature steam
High temp fluid pressure measuring and controlling
Spacification
Range |
0-100bar-700Bar |
Accuracy |
±1.6%FS |
| Rigid stem | 6", 9" optional |
Flexible stem |
0.5~ 5m |
Configuration |
Bourdon tube |
| Output | Contact switch signal |
Supply voltage |
10vdc, 24(12-36)vdc |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm |
Needle sweep: |
270º |
Diaphragm material: |
15-5PH |
Electrical connector |
Direct cable |
Case material: |
Stainless steel with safety glass |
Max Diaphragm Temp. |
350°C |
Process Connection |
1/2-20UNF, M22×1.5,M14*1.5(Optional) |

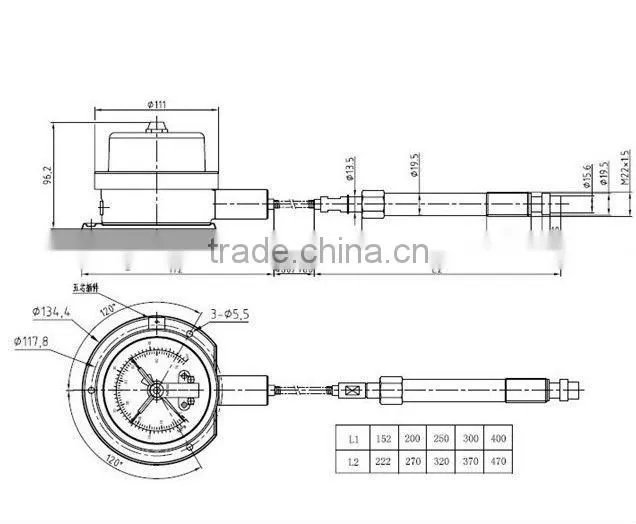

Dimension
PT124Y-616
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, Our quotation is always valid for you if there is no world market unrest.
2, Receiving your new inquiry, the infos of products & the best price will be provided you asap.
3, Replacement and repair if there is quality problem within 7-15 working days.
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
