Specifications
3V battery power supplyhigh reliability & stability
high precision, low power,stock
big LED display pressure gauge
3v battery power supply pressure gauge
Description

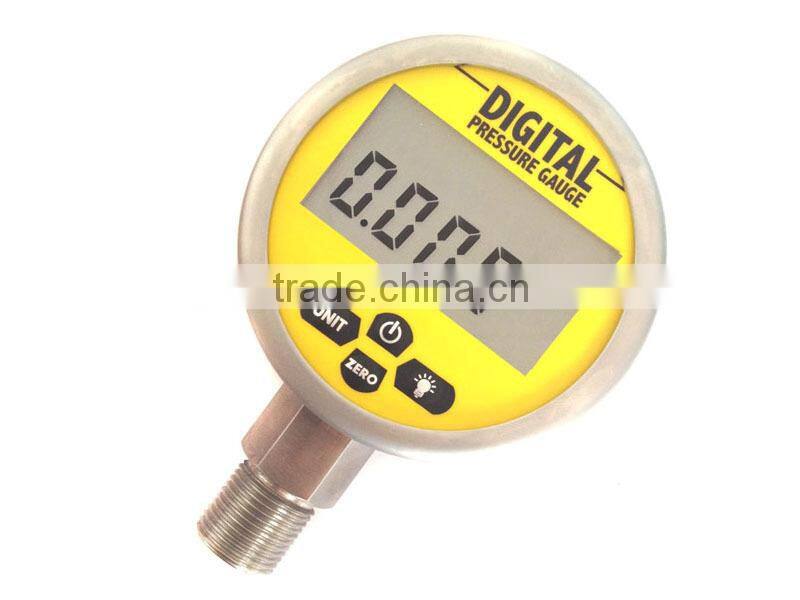

ZH-S260 intelligent digital pressure gauge is 3V battery power supply ,a high precision indicator, with ultra high precision pressure transmitter inside, it can display pressure very quickly and accurately. What’s more, it is of high precision, long term reliability, etc. It can be used to measure pressure of water, oil, gas, heat pump, etc. What’s more, it can replace analogue gauge and to be used in strong vibration and high pressure shock occasions.
Features
4 local LED displays, sample and convenient
3 pressure unit changeable: MPa, Kgf, Psi
Good anti-vibration performance, good stability and long lifespan
Easy to operate
Application
Pressure vessel;
Air compressor;
Automation industry;
Heat pump; etc.
Specification
Name |
3v battery power supply pressure gauge |
Pressure range |
-1~0 bar, 0~60MPa |
Over load pressure |
150% |
Diameter |
60mm |
Power |
≤0.5W |
Rated current |
20mA |
Accuracy grade |
±0.5%F.S. |
Reliability |
±0.5%FS/year |
Pressure unit |
MPa; Kgf; Psi |
Supply voltage |
3V baterry power supply (5# ) |
Working temperature |
-20-80°C |
Compensation temperature |
-10-60°C |
|
Electric protection
|
Short-circuit protection ;anti-reverse protection |
Sampling frequency |
5 times per second |
Tested medium |
Gas and liquid which is compatible with 316L material |
Pressure connector |
M20*1.5; G1/2; G1/4 |
Housing material |
Engineering plastics |
Connector material |
304 stainless steel |

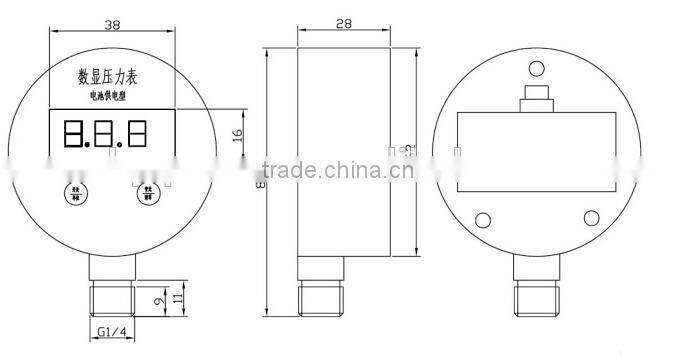

Dimension
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Money gram.
4. How about the usual delivery time?
We will send goods to you within 7-10 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
Order Guide
| Model | Dial | Pressure range | Process connection | Accuracy | Housing material | Weight (Kg) |
| ZH-S260 | 60mm | 0-60Mpa | M20*1.5 customerized | 1.00% | Engineering plastics | 0.2 |
eg.: ZH-S260 -60Mpa-G1/4
