no Output Flexible Armor Mechanical Melt Pressure Gauge

no Output Flexible Armor Mechanical Melt Pressure Gauge thumbnail-1
no Output Flexible Armor Mechanical Melt Pressure Gauge thumbnail-2
no Output Flexible Armor Mechanical Melt Pressure Gauge thumbnail-3
no Output Flexible Armor Mechanical Melt Pressure Gauge thumbnail-4
no Output Flexible Armor Mechanical Melt Pressure Gauge thumbnail-5
no Output Flexible Armor Mechanical Melt Pressure Gauge photo-1
no Output Flexible Armor Mechanical Melt Pressure Gauge photo-2
no Output Flexible Armor Mechanical Melt Pressure Gauge photo-3
no Output Flexible Armor Mechanical Melt Pressure Gauge photo-4
no Output Flexible Armor Mechanical Melt Pressure Gauge photo-5
US$ 80 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZHYQ
Model Number:
PT124Y-614
Contact Supplier Request Quote Chat Now
Shanghai Zhaohui Pressure Apparatus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name ZHYQ
Model Number PT124Y-614

Specifications

Direct, local readings
Mechanicl design
stem-up and stem-down versions
12 month warranty
melt pressure gauges with flexible

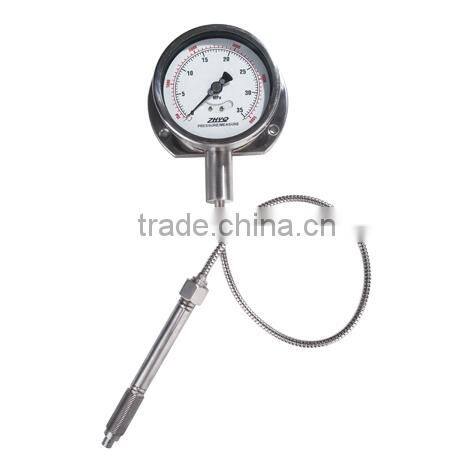

 No output flexible armor Mechanical melt pressure gauge  (PT124Y-614)



Description

PT124Y-614 no output flexible armor mechanical melt pressure gauge , this melt pressure gauge adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.





Features

Direct local reading design

Customer defined pressure gauge

Install easily, high reliability

Zero adjustment

Stem-up and stem-down versions

Gauge head rotates  360° for easy reading

100mm diameter



Application

Chemical fiber and filature

Rubber & plastic machinery

The equipment of high temperature steam



Specification

Name

no output flexible armor Mechanical melt pressure gauges

Model

PT124Y-614

Range

0…100bar to 0...1500bar

Accuracy

±1.6%FS

Configuration

Bourdon tube

Over Pressure

1.5×FS

Max Diaphragm Temperature

350°C

Dial Diameter

100mm

Flexible Length

0.5…..5M

Process Connection

1/2″-20UNF, M14×1.5, M18×1.5(Optional)




no output flexible armor Mechanical melt pressure gauge

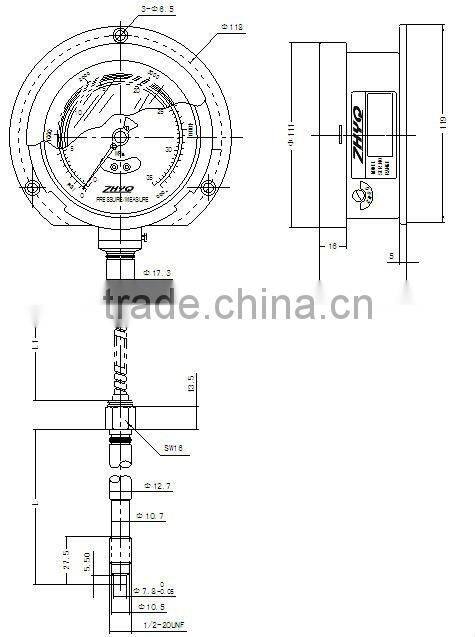

Drawing

no output flexible armor Mechanical melt pressure gauge

Order Guide :  with "* "are required , with "---"is optional

Model

Range
(Bar)

output

Rigid & flexible length (inch)

Screw Thread

Electric connector

Accuracy

others

PT124Y-614

*

none

*

*

  none

*

---

Example:PT124Y-614-500Bar-6/30”-1/2-20UNF-1.6%





 Price, Service and Package

1. all our melt pressure gauge can replace Dynisco , Gefran other brand absolutely .

3. All our melt pressure gauge will be fully checked by our QC before delivery.

4. all our flexible melt pressure gauge , 7 days replacement and 12 months free repair if casue for quality problem .

5. Package: 1 pcs melt pressure gauge / inner box , including data sheet and calibration sheet  .

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.



Company profile

     We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 15+ years. Our main products contain melt pressure transmitter, melt pressure transducer , pressure transmitter, melt pressure gauge, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentations, etc. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites , etc.



       With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2000) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa and many other countries.



      Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!



Our Workshop



Certificates



Other pressure gauges

no output flexible armor Mechanical melt pressure gaugeno output flexible armor Mechanical melt pressure gaugeno output flexible armor Mechanical melt pressure gauge
