Specifications
Flange mounting pressure gaugeLocal display & anti-vibration
Customized available
CE,ISO9001 Certification
Flange mounting pressure gauge PT124Y-624
Description
1. PT124Y-624 flange type diaphragm pressure gauge, adopts flange standard parts combined tightening sealing and high elastic alloy corrugate diaphragm, imported bourdon tube, designed with all stainless steel structure.
2. This diaphragm pressure gauge is suitable for the corrosive medium process pressure measuring of many types of machinery. Case can be arbitrary 360 angles adjusting to the best viewing angle.
Application
Petroleum and chemistry equipment
Fiber equipment
Medicine
Food machinery
Feature
Special Mechanical design
Install easily
Fill in silicon oil (food grade)
Good shockproof and corrosion prevention
High reliability and good repeatability
Spacification
Name |
Flange mounting Diaphragm pressure gauge |
Range |
0~10bar to 0~1000bar |
Accuracy |
±1.6%FS |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Dial Diameter |
100mm |
Max Diaphragm Temp. |
125°C |
Process Connection |
Flange design |

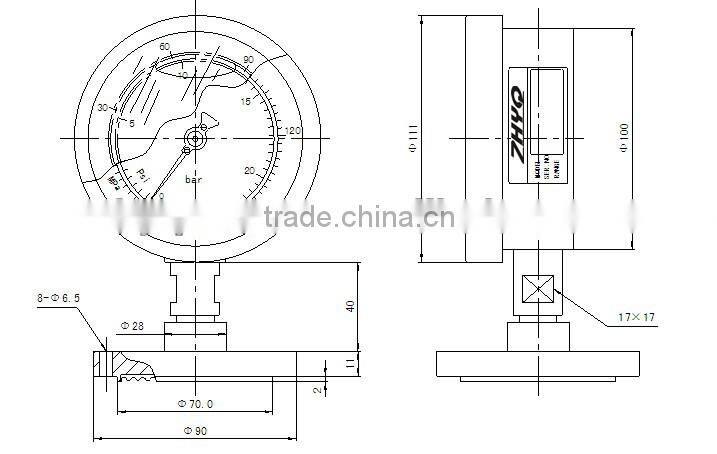

Dimension
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is producing various diaphragm Pressure Gauge for 13+ years
2. OEM is available and our price is more competitive
3, Any questions from your are welcome and will be replied in 24 hours.
4, 7 days replacement, 12 months free repair if it's the problem of product's quanlity.
5, All goods will be fully checked by our QC.
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
7. Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains diaphragm Pressure Gauge, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
