Specifications
Differential pressure sensorAmplifier circuit
diffused silicon sensor
CE,MC, ISO9001 Certificate
Differential pressure sensor PT124B-201
Description
1. PT124B-201 Series differential pressure transmitter is designed for differential pressure measurement of clean and dry gas.
2. The PT124B-201 Series is available with various electrical connection options and process ports.
3. It features a high reliable signal amplifier circuit and diffused silicon sensor in a rugged pakage with special aluminum-alloy surface handling, offering two outputs 4-20mA, and 0-5v.
Special Features
High quality sensor,
Precision encapsulation technology
Complete assembly art assure excellent quality and optimize ability of the product.
Application
It is easy for installing adjusting, specially suit for field assorting application with all sorts of wind pressure and micro-pressure measuring and control equipment, such as hearth Pressure measuring, soot cure, wind machine, air-conditioning and etc.
Specification
Ranges: |
0~50mbar~0~600bar |
Accuracy: |
0.25%F.S; 0.5%F.S |
Zero balance: |
+/-20%FSO |
Resistance: |
> 50MΩ/50V |
Signal: |
0~5V;4~20mA |
Supply voltage: |
5VDC; 24VDC |
Operating temperature: |
-40~85°C |
Temperature compensation |
-10~70°C |
Overpressure: |
150%FSO |
Material: |
Duralumin |
Measuring medium: |
No conductive, no corrupt or causticity gas |
Electrical connector: |
Cable, connector and optional |

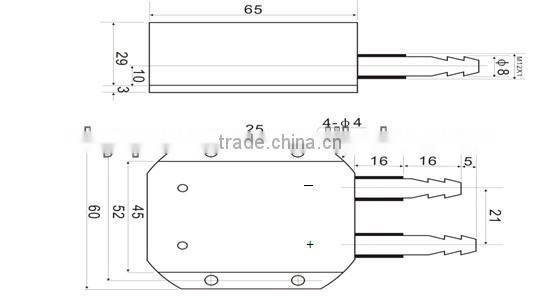

Dimension
Orde Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is in this field of producing various pressure sensors for 13+ years
2, OEM is available, our price is more competitive
3, 7 days replacement and 12 months free repair if quality problem .
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Any questions from you are welcome and will be replied in 24 hours.
7, Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains differential pressure transmitter, digital pressure transducer, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
