Description
PT124B-224 is SS316L corrosive proof 4-20mA immersion type Level sensor , this series SS316L corrosive proof 4-20mA immersion type Level sensor is anti-corrosive level transmitter can be used for detecting the level of various strong corrosive liquid. The probe and cable of the level sensor adopt Teflon, it can directly deep into the container to sense the changes of the liquid level, the transmitter adopts full solidified and sealed module structure. The water level transmitter advantages of this device are stronger anti-corrosive, stong acidity or alkaline liquid ,petroleum, metallurgy, Hydraulic, Chemical liquid ,simply structure, easy to install, versatility, and it is suitable for monitoring of various liquid level.
Feature
Wide measuring ranges
Corrosion Proof, moist proof, frost proof, seepage prevention
SS316L housing material , F4 vented cable
Various signal output for industrial standard, flexible calibration
immersion type ,High accuracy, good stability
Application
Liquid level measuring
Building automation, constant pressure water supply
Metallurgy, machine, Environmental Protection
Medical treatment, marine , seawater
suitable for stong acidity or alkaline liquid ,petroleum, metallurgy, Hydraulic,
Chemical liquid city water supply, sewage treatment, hygrometry and etc.
Specification
Name |
SS316L corrosive proof 4-20mA immersion type Level sensor |
Model |
PT124B-224 |
Pressure range |
0 ~ 1mH2O~50mH2O |
Over load |
150%FS |
Output |
4-20mA, 0-5V, 0-10V |
Power supply |
12~36VDC |
Combine error |
±0.5% FSO (Including Linearity, Repeatability & Hysteresis ) |
Response time |
<10ms |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
screw thread, throw-in type |
Operating temperature |
-20°C ~ 85°C |
Temperature compensation |
-10°C ~ 60°C |
housing material |
SS316L , F4 (Teflon) |
vented cable material |
Teflon |
Protection grade |
IP68 |

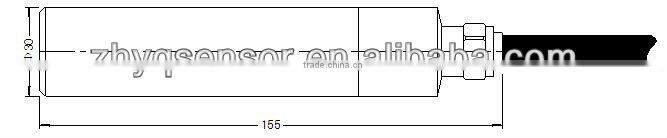

Dimension
Order Guide : with "* "are required , with "---"is optional
