Specifications
compact pressure controller1. certain stocks
2. ISO9001 certified
3. high qyality , reasonable price

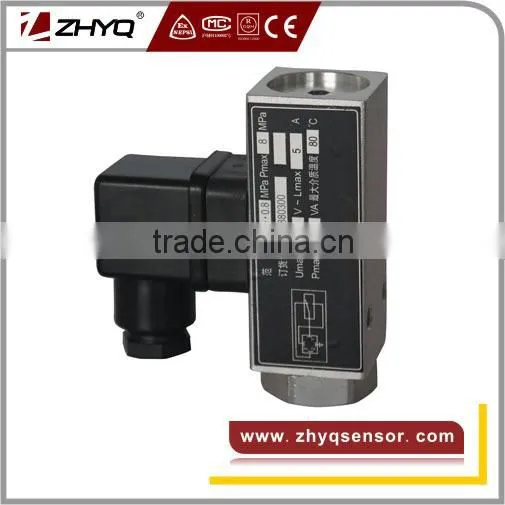

Compact design small volume pressure controller
Description
The pressure controller has 2 types: one is diaphragm type(Y18A, Y18C) and the other is piston type without leakage. It is usually used to measure the pressure of air, gas, water, fluid oil, fuel oil, lubricating oil and other anti-corrosion fluid mediums. The settings is adjustable, range is -0.1-1.6MPa(Y18A) ,0.5-40MPa(Y18B) and 0.02-3MPa(Y18C)
The features
The pressure controller is of compact design, small volume and high anti-shaking performance.
Dimension
Specification
1, Instrument parameter
Working viscosity: |
<1*10-3m2/s |
Switch element: |
microswitch |
Protection class of housing: |
IP54(Y18A, Y18B) |
IP65(Y18C) | |
Atmospheric temperature: |
-25~55°C |
Medium temperature: |
-25~80°C |
Maximum pressure(Mpa): |
8(Y18A)/40(Y18B)/5(Y18C) |
Anti-seismicity: |
Max 100m/s2 |
Repeatability error: |
≤2.5%(Y18A, Y18B) |
≤1.5%(Y18C) | |
Contact capacity: |
AC 220V 6A(resistive) |
2.Set value reference
Serial number |
Setting range |
||
A |
B |
C |
|
01 |
-0.1-0 |
0.5-7 |
0.02-1.2 |
02 |
0.02-0.2 |
1-16 |
0.05-3 |
03 |
0.05-0.8 |
2.5-25 |
0.02-1.2 |
04 |
0.1-1.6 |
4-40 |
0.05-3 |
Remarks: use soket head cap screw with plastic protection housing to reset values(Y18C-01,02); use rotary knob with scales to set(03, 04) | |||
Instrument selection
model |
description |
|||
Y18 |
||||
Instrument types |
A |
|
|
Diaphragm transducers |
B |
piston type without leakage transducers |
|||
C |
Diaphragm transducers |
|||
Adjustable ranges |
01 |
Reference to value table |
||
02 |
Reference to value table |
|||
03 |
Reference to value table |
|||
04 |
Reference to value table |
|||
Process connector |
G |
G1/4Female thread |
||
Wiring connect
Ordering Guide
Model |
Range |
Screw Thread |
connection |
Other requirement |
BP2010 |
--- |
--- |
--- |
--- |
Example: BP2010-(0.5-40mpA)-G1/4F | ||||
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you deliver goods?
For small orders (less than 20 pieces), we can deliver within 7 working days, for bulk orders, we usually need 15 working days. But if you need goods urgently, we can arrange expedited production.
3. What’s your MOQ and how long is your product warranty?
We have no MOQ limits, so 1 piece for test purpose at first is acceptable.
We offer 1 year warranty for all of our products, in the warranty term, if there are any problems with the product itself, we would repair it for free.
4. What’s your production capacity and can you offer free samples?
Our production capacity is about 8,000 pieces per month. Yes, we offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
5. What detailed information do we need to provide if we want to place an order?
We need to know the following info, such as application, pressure range, output, accuracy, thread type, electric connector and other related parameters.
6. What types of payment terms and trade terms can you accept?
Payment terms: TT, Western Union, Money Gram, etc
Trade terms: Ex. Works, FOB, CNF, etc.
7. What express ways can you offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS, and charge the freight cost from you, or you can use your own courier, just for your convenience.
