Description

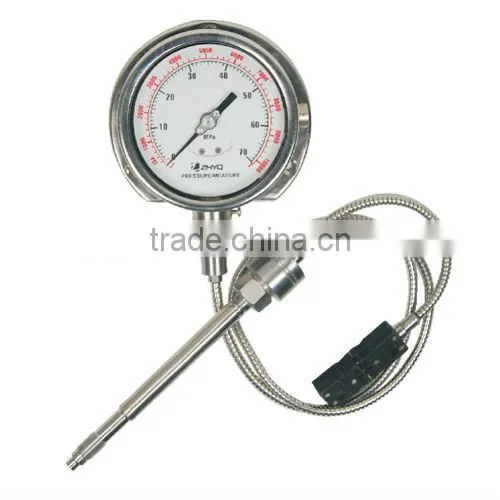

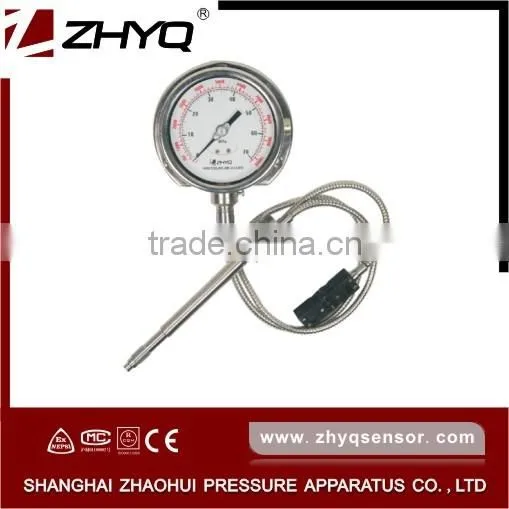

PT124Y-615T is Mechanical flexible melt pressure gauge with different thermocouple , this model melt pressure gauge is with all kinds of thermocouple , this pressure gauge adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing. with thermocouple can measure the pressure and temperature in one point.
Feature
Direct local reading design
Customer defined pressure gauge
Install easily, high reliability
Zero adjustment
Stem-up and stem-down versions
Gauge head rotates 360° for easy reading
measure the pressure and temperature in one point
Application
Chemical fiber and filature
Rubber & plastic machinery
The equipment of high temperature steam
Specification
Name |
Mechanical flexible melt pressure gauge with different thermocouple |
|
Model |
PT124Y-615T |
Range |
0…100bar to 0…1500bar |
Thermocouple |
J.K.E.PT100 |
Accuracy |
±1.5%FS;±1.0%FS; |
Configuration |
Bourdon tube |
Over Pressure |
1.5×FS |
Max Diaphragm Temperature |
350°C |
Dial Diameter |
100mm |
Flexible Length |
0.5…5M |
Diaphragm material |
15-5PH |
Process Connector |
1/2″-20UNF, M14×1.5, M18×1.5(Optional) |

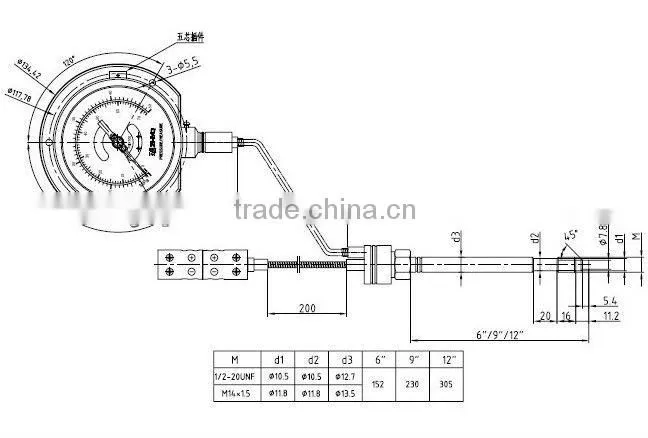

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
Output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Accuracy |
others |
PT124Y-615T |
* |
none |
* |
* |
* |
* |
--- |
Example:PT124Y-615T-500Bar-6/30”-1/2-20UNF-K-1.6% |
|||||||
