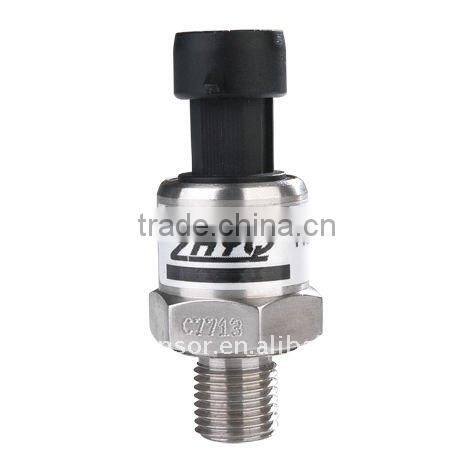

Help Center0.5-4.5V Output Pressure Sensor for HVAC Application
Related Products
-
Plastic Extruder Space Limited Melt Pressure TransmitterUS$ 120 - 235MOQ: 1 Piece -
PT124G-113T Rigid Stem Oil Filled J Type Melt Pressure TransmitterNegotiableMOQ: 1 Piece
-
PT124G-123T Plastic Extruder 3.33mV/V Melt Pressrue SensorUS$ 100 - 295MOQ: 1 Piece
-
PT124G-121 Extruder Flexible Economic Melt Pressure SensorNegotiableMOQ: 1 Piece
-
Extruder Flexible High Temperature Pressure SensorNegotiableMOQ: 1 Piece
Description
PT124B-234 is 0.5-4.5V output pressure sensor for HVAC application . this series pressure sensor adopts diffused silicon or ceramic piezoresistive sensor chip, this pressure transmitter with compact configuration, easy to install, and special valve needle design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling.
Feature
Superior long term stability
A wide range of temperature compensation
Low power consumption
Excellent repeatability/hysteresis
Special design for customer
Many OEM options
Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring
Specification
Name |
0.5-4.5V output pressure sensor for HVAC application |
Model |
PT124B-234 |
Range |
0….1bar to 0….100bar ` |
Accuracy |
0.5%FS ; 1%FS; 1.5%FS |
Linearity |
0.02%FS |
Reliability |
0.05%FS |
Output |
4-20mA, 0-5V, 0.5-4.5V,1-5V |
Input Voltage |
24(12-36V)DC;5VDC |
Operating Temperature |
-20°C~120°C |
Temperature Compensation |
-10~65°C(Standard Compensation) |
Over Pressure |
150%FS |
Case material |
304SS,316SS,Brass optional |
Electric connection |
Packard connector |
Process connection |
1/4NPT,1/8-27NPT,7/16-20UNF (Optional) |

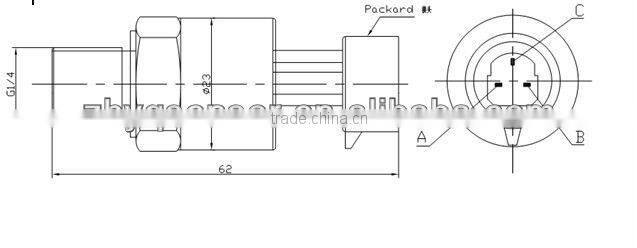

Dimension
Wiring code
Signal Output |
4-20mA (2 Wires) |
0-5V, 0.5-4.5V,1-5V (3 wires) |
||
Wiring Code |
1 |
Input (Red) |
1 |
Input (Red) |
2 |
Output (Black) |
2 |
common point (Black) |
|
3 |
None |
3 |
Output (Blue) |
|
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. | ||||
Order guide with * are required, with --- is optional
Model |
Range |
Output |
Process Connection |
Electric Connection |
Other Requirement |
PT124B-234 |
* |
* |
* |
* |
--- |
Example: PT124B-234-10bar-0.5-4.5V-7/16F-20UNF | |||||
