widely used 33.3mV output rigid + flexible melt pressure transmitter
- 6000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- mpa explosion proof electric contact pressure gauge types
- Tuning fork level switch of DC 24V
- GAS TRANSMITTER KQF1500 for power plant
- Diaphragm flange pressure transmitter
- China Factory Manufacturing High Quality High Accuracy small Digital Temperature and Pressure Integral Sensor
- China Factory Manufacturing High Quality High Accuracy small pressure sensor 0-10V 0.5-4.5V 4-20mA Hydraulic oil Pressure sensor
Product Details
Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | PT124G-123 |
Product Description

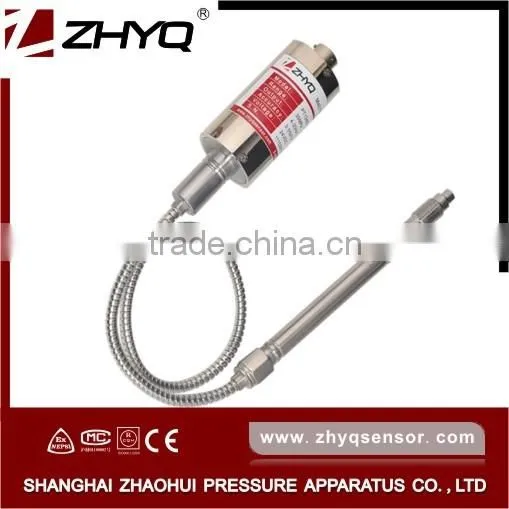

PT124G-123 is widely used 33.3mV output rigid + flexible melt pressure transmitter , this series is 3.33mV/V output , 0.5% accuracy flexible stem melt pressure transducer ,is widely used in both domestic and abroad.This melt pressure transducer can be utilized together with the N Series Intelligent Digital Pressure Instrument. Zero & full span can be adjustable, the melt pressure transducer of PT124G-123 welding with amplify circuit can be change to PT124B-123 , the signal be connected with PLC directly , this series melt pressure transducer with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. high accuracy ,international standard output , and can replace Dynisco ,Gefran ,GP50 absolutely .
Feature
Stainless steel welding,Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
High accuracy ,can replace Dynisco ,Gefran ,GP50 absolutely.
Application
Chemical fiber Equipment
Polyester and Rubber manufacturing equipment
Medicine & Food process equipment
Blown Film Machine; Plastic extrusion machinery
Measurement and Control all kinds of melt fluid
Specification
Name | widely used 33.3mV output rigid + flexible melt pressure transmitter |
Model | PT124G-123 |
Pressure range | 0-35Bar...0-1500Bar (0-500psi…20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 0.5% FSO; ±0.25% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 3.33 mV/V, 2mV/V |
Input Voltage | 10VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400°C / 750°F |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Rigid stem length | 6 inch, 9inch others available on request |
Flexible stem length | 18 inch, others available on request |
Electrical connector | 6PINS, 5PINS. |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional |
Dimension
Order Guide: with "* "are required , with "---"is optional
Model | Range (bar) | Output | Rigid/Flexible length (inch) | Screw Thread | Electric connection | Accuracy | Other requirement |
PT124G-123 | * | * | * | * | * | * | --- |
Example:PT124G-123-500Bar-3.33mV/V -6”/18"-1/2-20UNF-6PIN-0.5%FS |
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
