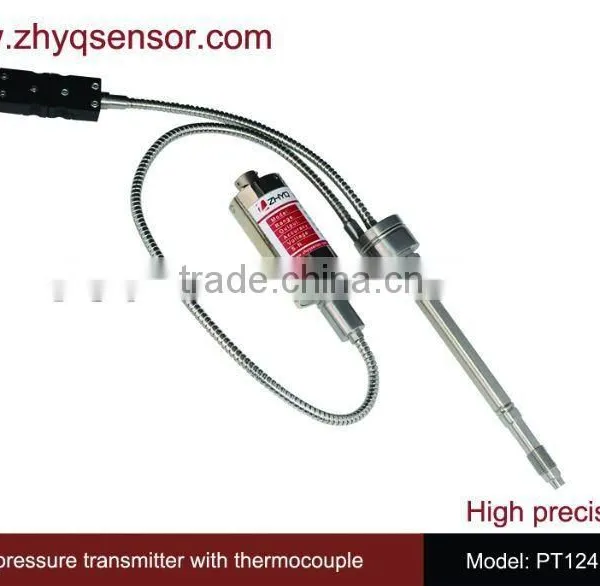

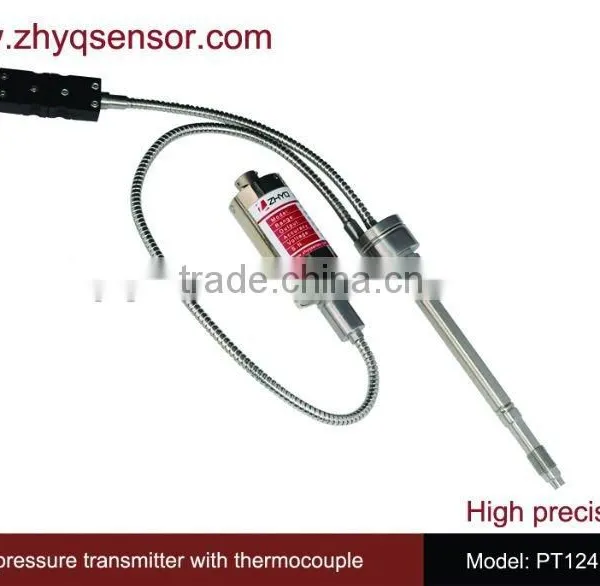

Help CenterTPT4624 Flexible 4-20ma Melt Pressure Transmitter With Thermocouple
Related Products
-
Replacement for PT4624 4-20mA Flexible Melt Pressure TransmitterUS$ 70 - 210MOQ: 1 Piece -
Rigid Stem 4-20mA Melt Pressure Sensor With ThermocoupleUS$ 30 - 230MOQ: 1 Piece
-
High Accuracy Rigid 4-20mA Melt Pressure SensorUS$ 30 - 200MOQ: 1 Piece
-
High Accuracy Rigid Melt Pressure Transducer With MV/V Output & J ThermoupleUS$ 60 - 199MOQ: 1 Piece
-
Rigid Stem Melt Pressure Transmitter With MV/V Output for Plastic MachineryUS$ 60 - 260MOQ: 1 Piece
Description
PT124B-123T is TPT4624 flexible 4-20ma melt pressure transmitter with thermocouple , this series Melt Pressure transmitter (Flexible stem) ,with thermocouple can measure the pressure and temperature in one point. this melt pressure transmitter is widely used in both domestic and abroad.es The melt pressure transmitter can be utilized together with the N Series Intelligent Digital Pressure Instrument. Zero & full span can be adjustable, PT124G-123T welding with amplify circuit can be change to PT124B-123T , the standard signal be connected with PLC directly , all our melt pressure transmitter with advantages of high precision and reliable pressure measuring and good quality and internal 80% calibration. international standard , high accuracy , and can replace Dynisco ,Gefran ,GP50 absolutely .
Feature
Stainless steel welding , Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration , high accuracy
Good stability and anti-jamming capability
Excellent stability and repeatability
standard output ,can replace Dynisco ,Gefran ,GP50 absolutely .
can measure the pressure and temperature in one point
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid
Specifications
Name | TPT4624 flexible 4-20ma melt pressure transmitter with thermocouple |
Model | PT124B-123T |
Pressure range | 0-3.5MPa…0-150MPa (0-500psi…20000psi) |
Over Pressure | 1.5 X FSO |
Combined Error | ± 0.5% FSO; ±0.25% FSO (Including Linearity, Repeatability & Hysteresis) |
Output | 4-20mA , 0-5V , 0-10V |
Input Voltage | 24VDC |
Repeatability | +/- 0.2%FSO |
Bridge Resistance Input | 345 Ohms minimum |
Bridge Resistance Output | 350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) | 80% FSO +/- 1% |
Insulation Resistance | 200 megohms @ 100 Vdc |
Max Diaphragm Temperature | 400°C |
Mounting Torque | 500 inch/lbs. max. |
Standard Wetted Parts | Diaphragm coated 15-5 PH SST |
Electrical connector | 6PIN connector |
Thermocouple | J,K,E,PT100 |
Process connector | 1/2″-20UNF, M14×1.5, M18×1.5 Optional |

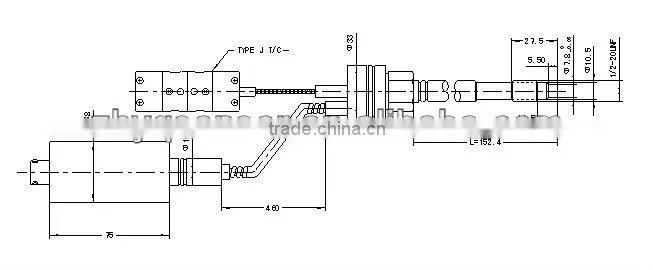

Dimension
Order Guide : with "* "are required , with "---"is optional
Model | Range | output | Rigid & flexible length (inch) | Screw Thread | Thermocouple | Electric connector | Accuracy | others |
PT124B-123T | * | * | * | * | * | * | * | --- |
Example:PT124B-123T-500Bar-4-20mA -6/18”-1/2-20UNF-J-5PIN-0.5% | ||||||||
