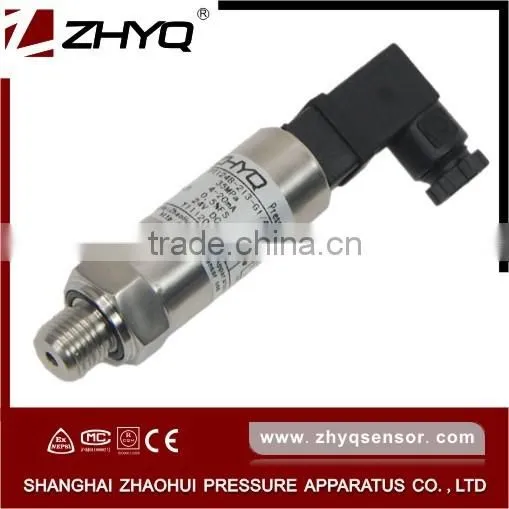

Help CenterPT124B-213 General Purpose Ceramic Pressure Transmitter
Related Products
-
PT124B-212 High Precision Diffused Silicon Pressure TransmitterUS$ 135 - 135MOQ: 1 Piece -
PT124B-211 Smart Industrial 4-20mA HART Pressure TransmitterUS$ 135 - 135MOQ: 1 Piece
-
4-20mA Strain Gauge Standard Industrial Pressure TransmitterUS$ 30 - 30MOQ: 1 Piece
-
Oil Filled no Harm Flexible Melt Pressure Transducer With ThermocoupleUS$ 50 - 250MOQ: 1 Piece
-
no Harm MV/V Output Flexible Melt Pressure Sensor for Food MachineryUS$ 50 - 300MOQ: 1 Piece
PT124B-213 general purpose ceramic pressure transmitter comes with compact construct design, it makes this series suitable for the occasion where installation space is restricted. Widely pressure range and temperature compensation, free of calibration. And we can supply OEM produces, for the special design, this series product is widely used in the domestic and abroad market.
Application
Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applications
Features
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design
Specification
Model |
PT124B-213 general purpose ceramic pressure transmitter |
Pressure range |
0~1bar~200bar |
Over load |
150%FS |
Burst pressure |
300%FS |
Output |
4-20mA, 1-5V/0-5V, 0-10V |
Power supply |
12~36VDC |
Response time |
<5ms |
Combine error |
0.5% FSO (Including Linearity, Repeatability & Hysteresis) |
Repeatability |
≤ +/- 0.2%FSO |
Long term stability |
≤ +/-0.2%FS/year |
Pressure connection |
M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor ) |
Operating temperature |
-20 ℃ ~ 80 ℃ |
Temperature compensation |
0℃ ~ 60℃ |
Electrical connector |
Bendix connector,Hirschman DIN4365 and Gland lead |
Dimensions
Ordering guide * are required, --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-213 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-213-80Bar-4/20mA-G1/2 | |||||||
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
