Description

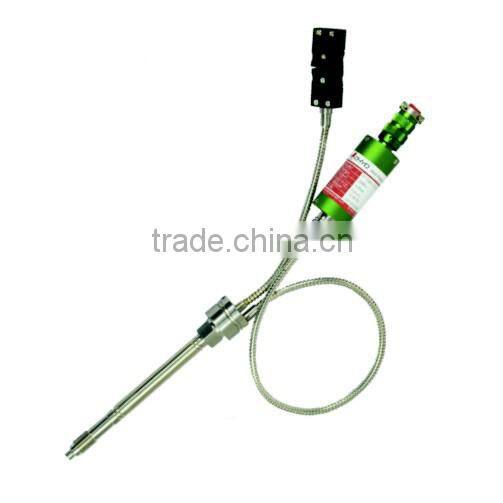

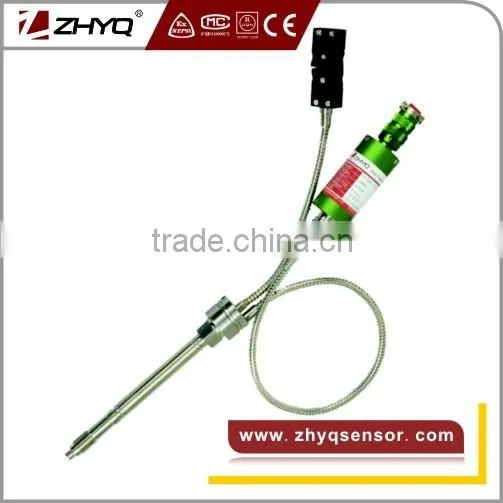

PT124G-122T is oil filled no harm flexible melt pressure transducer with thermocouple , This series is oil filled Melt Pressure transducer with thermocouple , it designed with rigid stem and flexible stem, can measure the pressure and temperature in one point. it filled with environmental, avirulent medium slicon oil. If the melt pressure snesor diaphragm damaged during process, the leaking medium is no harm to the human body or ambient.it can achieve the pressure measuring and has the wide application in Medicine & Food process equipment,drinking water environmental monitoring. our melt pressure sensor of oil filled has the wide application in China, with the advantage of precision and reliable pressure measuring and high-standard quality.
This series melt pressure sensor output signal is standard , can match the N series pressure instrument from ZHYQ, also can match the pressure instrument or controller of other brand. also can replace Dynisco / Gefran products absolutely .
Feature
all our melt pressure sensor are Stainless steel welding
Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repetition
filled with environmental, avirulent silicon oil medium, no harm .
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment ,
Drinking water environmental monitoring occasion
Other pressure measurement and Control
Specification
Name |
oil filled no harm flexible melt pressure transducer with thermocouple |
Model |
PT124G-122T |
Pressure range |
0-1MPa…0-150MPa (0-1500psi…0-20000psi) |
Over Pressure |
1.5 X FSO |
Combined Error |
± 1.5% FSO; ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
Output |
2mV/V ,3.33mV/V |
Input Voltage |
10VDC |
Repeatability |
+/- 0.2%FSO |
Bridge Resistance Input |
345 Ohms minimum |
Bridge Resistance Output |
350 Ohms +/- 10% |
Internal Shunt Calibration (R-Cal) |
80% FSO +/- 1% |
Insulation Resistance |
200 megohms @ 100 Vdc |
Max Diaphragm Temperature |
400 °C |
Mounting Torque |
500 inch/lbs. max. |
Standard Wetted Parts |
Diaphragm coated 15-5 PH SST |

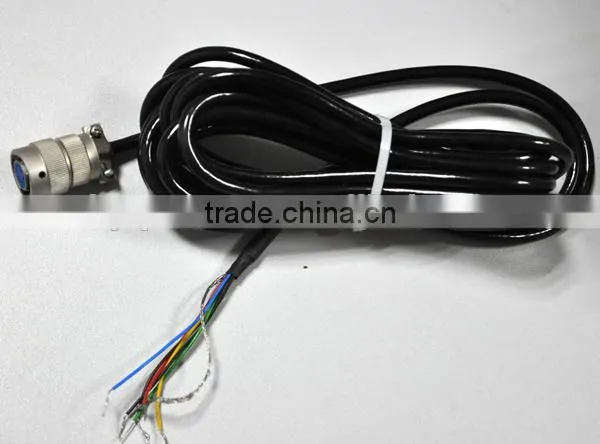

Electrical connector |
5PIN, 6PIN optional |
Thermocouple Type |
J.K.E.PT100 optional |
Process connector |
1/2″-20UNF, M14×1.5, M18×1.5 Optional |

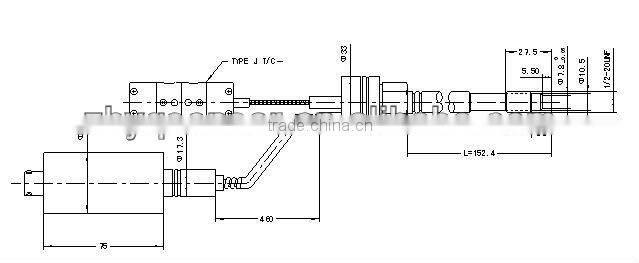

Dimension
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
output |
Rigid & flexible length (inch) |
Screw Thread |
Thermocouple |
Electric connector |
Accuracy |
others |
PT124G-122T |
* |
* |
* |
* |
* |
* |
* |
--- |
Example:PT124G-122T-500Bar-2mV/V -6/18”-1/2-20UNF-J-5PIN-0.5% | ||||||||
This oil filled no harm flexible melt pressure transducer with thermocouple can matching with our N series digital pressure indicator to local display the pressure and temperatuer .
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
