Product Details
Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | ZH-CZL111 |
Usage: | Other, tension or compression | Theory: | Resistance Sensor | Output: | Other, mV/V |
Product Description
Specifications
Alum alloy structureHigh precision
For use in tension or compression.
Low capacity
Bridge type load cell
Model: ZH-CZL111
FEATURES:
Alloy steel ,Simple structure
APPLICATIONS:
Automobile examination line
Railroad track scales etc.

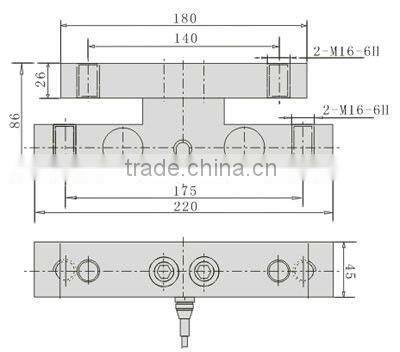

Dimensions:
Wiring Schematic Diagram:
Parameters:
Rated Load(t) | 2, 3, 4, 5 | ||
Precision | C1 | Insulation Resistance(MΩ) | ≥5000(100VDC) |
Comprehensive Error(%F.S) | 0.05 | Excitation Voltage(V) | 9~12(DC) |
Rated output(mv/v) | 2.0±0.02 | Compensated temp.Range(°C ) | -10~+40 |
Non-linearity(%F.S) | 0.05 | Use Temp. Range(°C ) | -20~+65 |
Hysteresis(%F.S) | 0.05 | Temp.Effect on Zero(%F.S/10°C) | 0.05 |
Repeatability(%F.S) | 0.02 | Temp.Effect on Span(%F.S/10°C) | 0.03 |
Creep(%F.S/30min) | 0.02 | Safe Overload (%F.S) | 150 |
Zero Balance(%F.S) | ±1 | Ultimate Overload(%F.S) | 200 |
Input Resistance(Ω) | 700±10 | Defend Grade | IP67/IP68 |
Output Resistance(Ω ) | 700±10 | Cable (4 PIN) | RWP4*12/0.15*3m |
