Specifications
Digital Pressure Indicators with relay alarms outputAnti- jamming
can mataching with all kinds of pressure sensor's output
pressure indicator matching with pressure transducer N90
Discription
N90 digital Pressure indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power.
This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.
Application
N90 Pressure indicator can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry; AND also can be compound with resistance strain guage press sensor of other manufactory
Specification
(1) |
Display |
Dual 4-digit Green and Red LEDs |
(2) |
Resolution |
0.2% FSO ± 1 |
(3) |
LEDs |
Out, Alarm-1, Alarm-2, CALibration |
(4) |
Input Sensibility |
2.5mv/V or 3.3 mv/V (automatic selection) |
(5) |
Sampling Speed |
20 per second |
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
(7) |
All Output Relays |
Relay 220V 1A |
(8) |
Retransmission |
4~~20 mA standard current loop |
(9) |
Communication |
RS-485 MODBUS( PY500 Only) |
(10) |
Alarm Range |
0001 – 9999 PSI or Bar (configurable) |
(11) |
Temperature |
0 - 55°C |
(12) |
Humidity |
<= 80% RH |
(13) |
Calibration |
80% FSO (Full Scale Output) |
(14) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
(15) |
Size |
48mm x 96 x 100 mm (W x H x D) |
(16) |
Panel Cutout |
46mm x 92mm |
(17) |
Weight |
400(Maximum) grams |

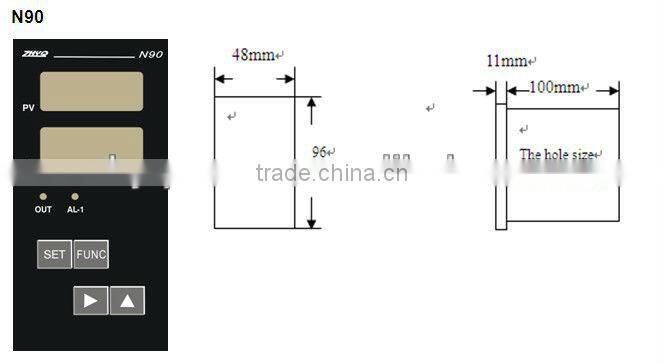

Panel Dimensions
Remarks : this indicator standard input is 2mV/V , output is 2 relay alarms , is you need special input or output (3.33mV/V,4-20mA ,0-5V ,0-10V) , when order it , please mention it .
Order Guide :with "* "are required , with "---"is optional ,
Maintenance
The operating temperature of N90 pressure indicator is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.
Price, Package and Service
1, T/T, Western Union, MoneyGram
2, Any questions from your are welcome and will be replied in 24 hours.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, All goods will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Package: The goods will be put into the packing box with instructions and certificate of quality first.
Certifcates
