Description
N60/N50/N10 digital indicator is the new developed product of our company. It has much advanced technology in the world ,such as the technology in electron, singlechip, computer erasure, anti-jamming and so on. To make the indicator have the strong point of high precision of measure and control,as well as the well fuction of anti-jamming.The whole machine has three cases of 96*96*100(N60)/ 96*48*100(N50) 48*96*100 (N10). So it is small in volume, light in height and save power and completed function and reliable task. Flexible and easy to use. It can be widely used not only in situation of display and autocontrol in hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry but also can be compound with resistance strain guage press sensor of other manufactory. If it is used with our model PT124- series melt pressure transducers and normal pressure transducer. As high precision pressure of measure and control, it can be set upper limit and lower limit alarm.It has the indicator light on alarm,relay touch output control peripheral equipment, high precision of voltage output module, current output module and relay output control modult for user to choose.The machine adopts the operation of humanism,so it is easy for operating.
Feature
small size, light weight
low power
panel mount
dual 4-digit indicator
Specification
(1).display double four digits high brightness green and ren radiation numeral pipe
(2).display exculpation rate 0001
(3).the range of display 0001-9999Mpa (radix point alterable)
(4).the precision of metre 0.2%FS+-1bit
(5).the display of indicator light adjust indicator light,OUT output indicator light,AL1,AL2 alarm indicator light
(6).output signal statoscopo 2mV/V ;3.3mV/V (Optional)
(7).sampling speed 20 times/second
(8).sensor opeiating voltage 9V high precision DC
(9).output control the pressure or electric current output with full singal rult
(10).main alarm output upper limit alarm has relay output (220V 1A) upper limit alarm display (out)
(11).assistant output assistant output can be compound with different function module and set by the meter to meet the difference output need.The content in detail please read 1(3)the explain of module function.Assistant output can be choosed from.(order for explain)
(12).the range of alarm 0001-9999Mpa (radix point alterable )
(13).Calibration display display 80% of full ranges (the sensor should be no load) CAE light
(14).the temperature and humidity of work 0-55’C, ≥80%RH
(15).power demand 85-265VAC 50Hz-60Hz
(16).exterior size N60: 96mm x 96mm x 100 mm (W x H x D) ;
N50: 96mm×48mm×100 mm (W x H x D)
N10: 48mm×96mm×100 mm (W x H x D)
(17).placket size N60: 96mm x 96mm x 100 mm (W x H x D)
N50: 96mm×48mm×100 mm (W x H x D)
N10: 48mm×96mm×100 mm (W x H x D)
(18).itsele height approximately 400g/200g/200g

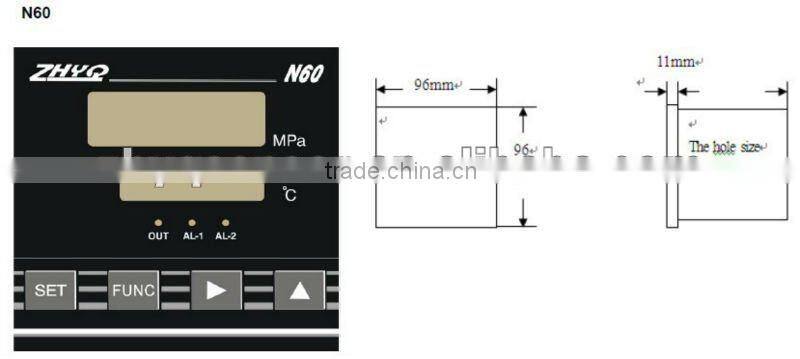

Picture & Dimension
