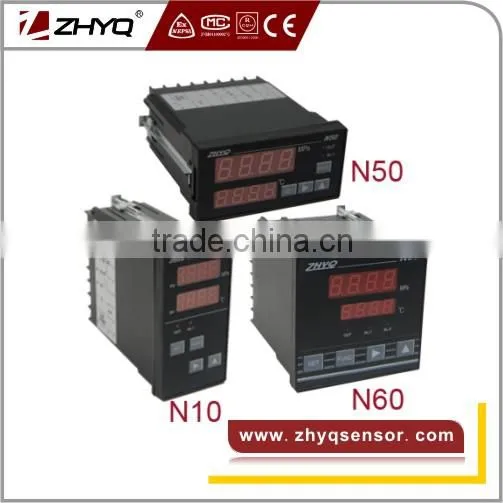

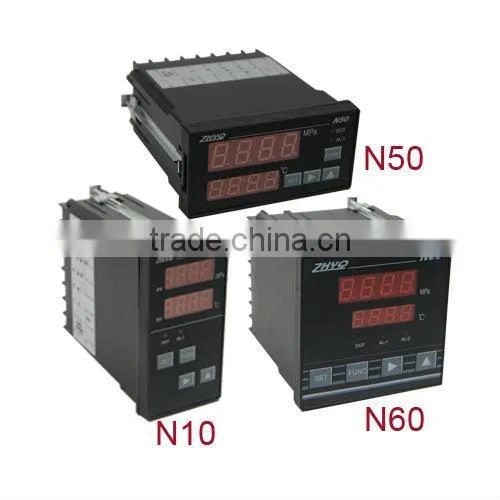

N60/N50/N10 Panel-mount Digital Pressure and Temperature IndicatorUS$ 95 - 135MOQ: 1 Piece -
N70/N80/N90 Panel-mount Digital Pressure IndicatorUS$ 50 - 100MOQ: 1 Piece
-
PD9001 PID Pressure Controller for Plastic MachineryUS$ 90 - 180MOQ: 1 Piece
-
PD9001 PID Intelligent Pressure ControllerUS$ 90 - 180MOQ: 1 Piece
-
PID Digital Pressure ControllerUS$ 90 - 180MOQ: 1 Piece
Specifications
Voltage/Current OutputAnti- jamming, High precision
Lower/ Upper limit alarm set
Digital Pressure and Temperature instrumet

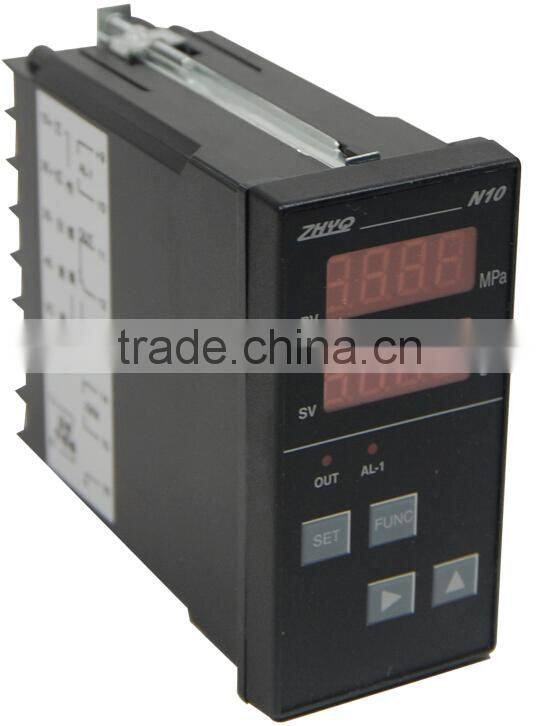

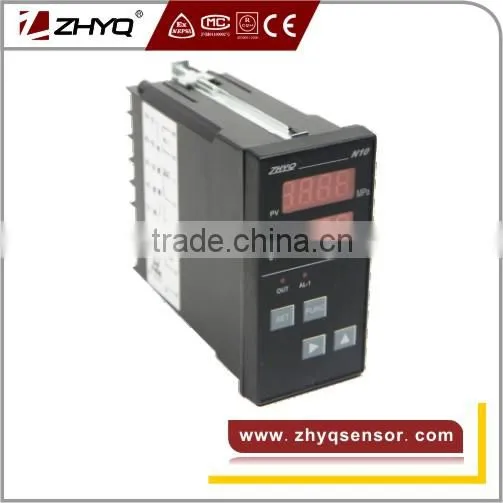

panel Digital Pressure and Temperature indicator (N10)
Discription
This series Panel Digital pressure temperature indicator ( N10) is the new developed product of our company. It has much advanced technology in the world ,such as the technology in electron, singlechip, computer erasure, anti-jamming and so on. The temperature indicator have the strong point of high precision of measure and control, anti-jamming, small in volume, light in height and save power and completed function and reliable task. It can be set upper limit and lower limit alarm and has the indicator light on alarm,relay touch output control peripheral equipment, high precision of voltage output module, current output module and relay output control modult for user to choose .
This indicator can matching with our PT124B-11XT/12XT .
Application
The digital pressure temperature indicator can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry; AND also can be compoundwith resistance strain guage press sensor of other manufactory .
Specification
Name |
panel Digital Pressure and Temperature indicator |
Pressure Range: |
0001-9999Mpa (radix point alterable) |
| Pressure signal Input: | 2mV/V ;3.3mV/V (Optional) |
| Temperature signal input : | K,J,E thermocouple optional |
| Output control: | the pressure or electric current output with full singal rule |
| Display: | double four digits high brightness green and ren radiation numeral pipe |
| Display exculpation rate : | 0001 |
The precision of metre : |
0.2%FS+-1bit |
Display of indicator light: |
adjust indicator light,OUT output indicator light,AL1,AL2 alarm indicator light |
| Sampling speed: | 20 times/second |
| Sensor opeiating voltage: | 9V high precision DC |
| Main alarm output: | upper limit alarm has relay output (220V 1A) upper limit alarm display (out) |
| Calibration display : | display 80% of full ranges (the sensor should be no load) CAE light |
| Temperature& humidity of work: | 0-55’C, ≥80%RH |
| Power demand : | 85-265VAC 50Hz-60Hz |
Exterior: |
48mm×96mm×100 mm (W x H x D) |
Itself weight: |
200g |
Panel Dimensions
Remarks : this indicator standard input is 2mV/V , output is 2 relay alarms , is you need special input or output (4-20mA ,0-5V ,0-10V) , when order it , please mention it .
Order Guide :with "* "are required , with "---"is optional ,
Remarks the pressure range when order instrument and pressure transmitter. It could not modify the pressure range for the indicator and transducer by customer. The transducer must match with the digital transmitter supplier by ZHYQ.
Maintenance
The operating temperature of this digital pressure temperature indicator is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.
Price, Package and Service
1, T/T, Western Union, MoneyGram
2, Any questions from you about our pressure indicator are welcome and will be replied in 24 hours.
3, all our pressure indicator are 7 days replacement and 12 months repair free of charge for quality problem.
4, All goods will be fully checked by our QC.
5, Shipment: stock .
6. Package: 1 pcs / inner box , including manual .
