Product Details
Place of Origin: | Shanghai, China | Brand Name: | ZHYQ | Model Number: | N90 |
Product Description
Specifications
1/4 DIN panel mount pressure relays1.two relay alarm
2.anti-jamming, high precision
3.CE&ISO9000 certified
4.no MOQ
Pressure controllers pressure relays
Description

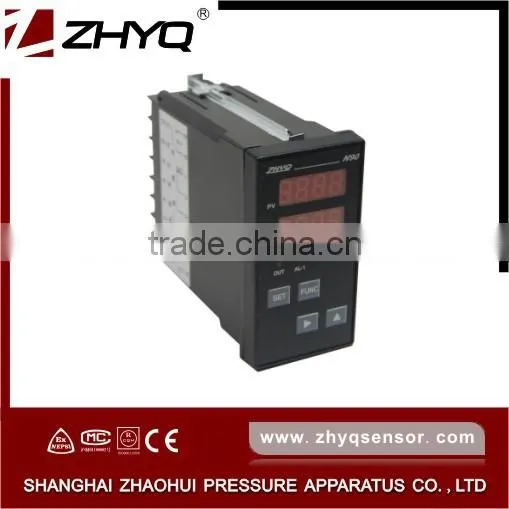

N80 1/4'' DIN pressure indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power. This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.
.
Specification
(1) | Display | Dual 4-digit Green and Red LEDs |
(2) | Resolution | 0.2% FSO ± 1 pressure relays |
(3) | LEDs | Out, Alarm-1, Alarm-2, CALibration |
(4) | Input Sensibility | 2.5mv/V or 3.3 mv/V (automatic selection) |
(5) | Sampling Speed | 20 per second |
(6) | Excitation Voltage | +9 VDC (output to transducer) |
(7) | All Output Relays | Relay 220V 1A pressure relays |
(8) | Retransmission | 4~~20 mA standard current loop |
(9) | Communication | RS-485 MODBUS( PY500 Only) |
(10) | Alarm Range | 0001 – 9999 PSI or Bar (configurable) |
(11) | Temperature | 0 - 55°C pressure relays |
(12) | Humidity | <= 80% RH |
(13) | Calibration | 80% FSO (Full Scale Output) |
(14) | Power Supply | 110/220VAC or +24VDC (designated while purchasing) |
(15) | Size | N70: 96mm x 96mm x 100 mm (W x H x D) N80: 96mm×48mm×100 mm (W x H x D) N90: 48mm×96mm×100 mm (W x H x D) |
(16) | Panel Cutout | N70: 92mm x 92mm N80: 92mm×44mm N90: 44mm×92mm |
(17) | Weight | 400(Maximum) grams pressure relays |
Maintenance
1.Meter can operate in the environment of 0-55°C,relative humidity <=80%RH,no dust and no corrosive gas.
2.free repair for pressure indicator quality warranty since the date of ex-factory. If the damage by customer or the date has exceeded the warranty period, then we will charge appropriately.
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the pressure indicator itself.
3. What terms of payment are available?
TT, Western Union and Money gram.
4. How about the usual delivery time?
We will send goods to you within 7 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
Company profile
We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 13 years. Our main products contain melt pressure transmitter, pressure transmitter, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentation. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites and etc.
With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2008) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa, etc.
Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!
