Instrument used in measuring pressure

Specifications

4-digit pressure indicator
1.small size, light weight
2.1/8 DIN or 1/4 DIN
3.panel mount
4.CE&ISO9000 certified

Instrument used in measuring pressure



Description

N70/N80/N90 pressure indicator is a 1/8 DIN or 1/4 DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power. This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.



Feature

small size, light weight

low power

panel mount

dual 4-digit indicator



Specification

(1)	Display	Dual 4-digit Green and Red LEDs
(2)	Resolution	0.2% FSO ± 1
(3)	LEDs	Out, Alarm-1, Alarm-2, calibration
(4)	Input Sensibility	2.5mv/V or 3.3 mv/V (automatic selection)
(5)	Sampling Speed	20 per second
(6)	Excitation Voltage	+9 VDC (output to transducer)
(7)	All Output Relays	Relay 220V 1A
(8)	Retransmission	4~20 mA standard current loop
(9)	Communication	RS-485 MODBUS( PY500 Only)
(10)	Alarm Range	0001 – 9999 PSI or Bar (configurable)
(11)	Temperature	0 - 55°C
(12)	Humidity	<= 80% RH
(13)	Calibration	80% FSO (Full Scale Output)
(14)	Power Supply	110/220VAC or +24VDC (designated while purchasing)
(15)	Size	N70: 96mm x 96mm x 100 mm (W x H x D) N80: 96mm×48mm×100 mm (W x H x D) N90: 48mm×96mm×100 mm (W x H x D)
(16)	Panel Cutout	N70: 92mm x 92mm N80: 92mm×44mm N90: 44mm×92mm
(17)	Weight	400(Maximum) grams



Dimensions

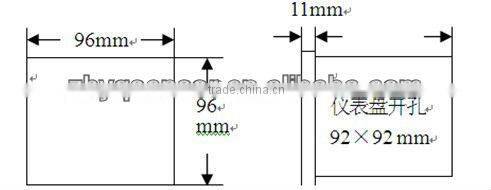

                                                                                   N70

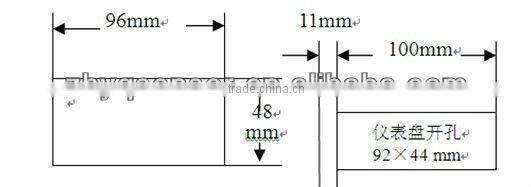

                                                                                    N80

                                                                                     N90



Maintenance

1.Meter can operate in the environment of 0-55°C,relative humidity <=80%RH,no dust and no corrosive gas.

2.free repair for quality warranty since the date of ex-factory. If the damage by customer or the date has exceeded the warranty period, then we will charge appropriately.



FAQs

1. What's your MOQ?

 We have no limits about MOQ, we can sell product to you even you just want 1 piece.



2. How long is the warranty?

 We offer 12 months warranty for any quality problems of the product itself.



3. What terms of payment are available?

TT, Western Union and Money gram.



4. How about the usual delivery time?

We will send goods to you within 15 working days.



5. What detailed information do we need to provide if we want to purchase an order?

Pressure range, output, accuracy, pressure connection and other related parameters.



6. Does quantity affects price?

Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
