Specifications
Digital pressure indicatorSpecial for marine
Peak value record
User friendly interface

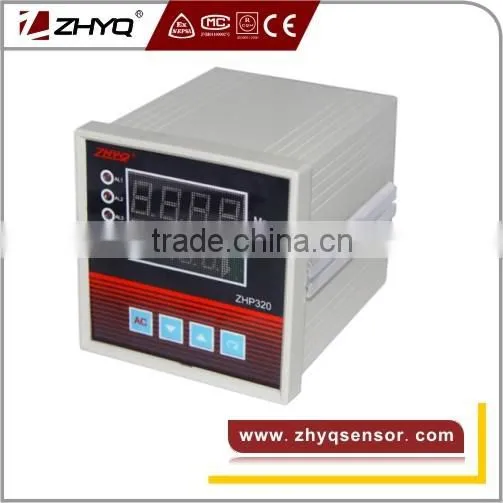

Digital pressure indicator for marine
Model: ZHP320
Digital pressure indicator ZHP 320 is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power. This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQs melt pressure transducer also.
(1) |
Display |
Dual 4-digit Green and Red LEDs |
(2) |
Resolution |
0.2% FSO ± 1 |
(3) |
LEDs |
Out, Alarm-1, Alarm-2, CALibration |
(4) |
Input Sensibility |
2.5mv/V or 3.3 mv/V (automatic selection) |
(5) |
Sampling Speed |
20 per second |
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
(7) |
|
|
(8) |
All Output Relays |
Relay 220V 1A |
(9) |
Retransmission |
4~~20 mA standard current loop |
(10) |
Communication |
RS-485 MODBUS( PY500 Only) |
(11) |
Alarm Range |
0001 9999 PSI or Bar (configurable) |
(12) |
Temperature |
0 - 55°C |
(13) |
Humidity |
<= 80% RH |
(14) |
Calibration |
80% FSO (Full Scale Output) |
(15) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
(16) |
Size |
PY500H: 96mm×48mm×100 mm (W x H x D) PY500: 96mm x 96mm x 100 mm (W x H x D) |
(17) |
Panel Cutout |
PY500H: 92mm x 46mm (W x H) PY500: 92mm x 92mm (W x H) |
(18) |
Weight |
400(Maximum) grams |
Price, Package and Service
1, Our quotation is always valid for you if there is no world market unrest.
2, Receiving your new inquiry, the infos of products & the best price will be provided you asap.
3, 7 days replacement and 12 months repair free of charge for quality problem.
4, Port: Shanghai.
5, Payment: T/T.
6, OEM available
7, Delivery time is 7-10 working days.
8, All goods will be fully checked by our QC.
9, Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
