Specifications
Dual 4-digit Green and Red LED;Input 2.5mV/V or 3.33mV/V; 4-20mA, 0-10V, 0-5V;
Output 4-20mA, 0-10V, 0-5V;
Description

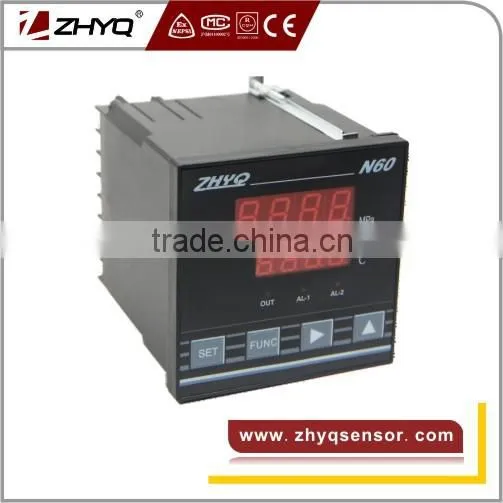

N60 digital indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power. This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQs melt pressure transducer also.
Specification
(1) |
Display |
Dual 4-digit Green and Red LEDs |
(2) |
Resolution |
0.2% FSO ± 1 |
(3) |
LEDs |
Out, Alarm-1, Alarm-2, CALibration |
(4) |
Input Sensibility |
2.5mv/V or 3.3 mv/V (automatic selection) |
(5) |
Sampling Speed |
20 per second |
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
(7) |
All Output Relays |
Relay 220V 1A |
(8) |
Retransmission |
4~~20 mA standard current loop |
(9) |
Communication |
RS-485 MODBUS( PY500 Only) |
(10) |
Alarm Range |
0001 9999 PSI or Bar (configurable) |
(11) |
Temperature |
0 - 55°C |
(12) |
Humidity |
<= 80% RH |
(13) |
Calibration |
80% FSO (Full Scale Output) |
(14) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
(15) |
Size |
96mm x 96mm x 100 mm (W x H x D) |
(16) |
Panel Cutout |
92mm x 92mm (W x H) |
(17) |
Weight |
400(Maximum) grams |
Price, Package and Service
1, Price : FOB SHANGHAI
2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

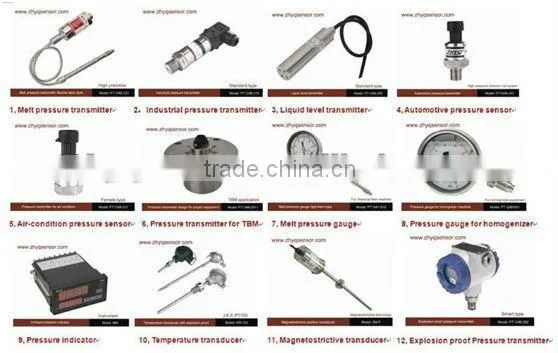

Our catalogue
