Description

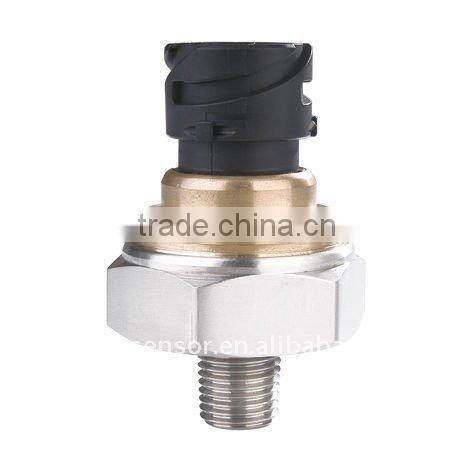

PT124B-235 is refrigeration & HAVC system pressure transmitter . this series is pressure transmitter for refrigeration & HAVC system , This pressure transmitter adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and this pressure transmitter special valve needle design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling.
Feature
Superior long term stability
A wide range of temperature compensation
Low power consumption
Excellent repeatability/hysteresis
Special design for customer
Many OEM options
Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring
Specification
Name | refrigeration & HAVC system pressure transmitter |
Model | PT124B-235 |
Range | 0….1bar to 0….100bar ` |
Accuracy | 0.5%FS ; 1%FS; 1.5%FS |
Linearity | 0.02%FS |
Reliability | 0.05%FS |
Output | 4-20mA, 0-5V, 0.5-4.5V,1-5V |
Input Voltage | 24(12-36V)DC;5VDC |
Operating Temperature | -20°C~120°C |
Temperature Compensation | -10~65°C(Standard Compensation) |
Over Pressure | 150%FS |
Case material | 304SS,316SS,Brass optional |
Electric connection | Packard connector |
Process connection | 1/4NPT,1/8-27NPT,7/16-20UNF (Optional) |
Dimension
Wiring code
Signal Output | 4-20mA (2 Wires) | 0-5V, 0.5-4.5V,1-5V (3 wires) | ||
Wiring Code | 1 | Input (Red) | 1 | Input (Red) |
2 | Output (Black) | 2 | common point (Black) | |
3 | None | 3 | Output (Blue) | |
Remarks: Above wiring connector is the standard type, if you need the special wiring, please contact with the company at first. | ||||
Order guide with * are required, with --- is optional
Model | Range | Output | Process Connection | Electric Connection | Other Requirement |
PT124B-235 | * | * | * | * | --- |
Example: PT124B-235-10bar-0.5-4.5V-7/16F-20UNF | |||||
Our company
Shanghai Zhaohui Pressure Apparatus Co., Ltd (ZHYQ) is the leading manufacturer which specializes in the design and construction of various transducer, transmitter and automation control products in China.
Founded in 1999, ZHYQ has actively brought in advanced production equipment and manufacturing process at home and abroad, developed and produced the transducers more than 80 series and 500 models successfully, which include industrial pressure transducer/transmitter, project equipment pressure transmitter, melt pressure transducer/ transmitter, melt pressure gauge, level transmitter, temperature transducer, tension transducer/ transmitter, burst Plug, intelligent digital indicator, and all kinds of sensor chips and etc.
ZHYQ insists on the development strategy with High-tech, High Quality, High level service, Creating world name brand, focuses on the challenge and stress attended by the customers, offers the competitive products and service and creates the economic value for the customers persistently.
Our factory
1. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before ship to our clients.
2. How fast can you delivery goods?
always 7-10 working days since order confirmed , if need goods urgently, we can arrange expedited production.
3. What’s your MOQ?
We have no MOQ limits, 1 piece for test purpose at first is acceptable.
4. How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem
5. can you accept OEM brand ?
Yes, we can accept the OEM brand without extra charge .
6. Can you offer free samples?
Yes, we can offer free samples, however you should pay for the samples at first, and then we will return the cost when you release bulk order.
7. How long your quotation valid ?
our quotation valid for 6 months .
8. What trade terms , payment mode and payment terms can you accept?
Trade terms : Ex- Works, FOB, CNF
Payment mode: T/T, Western Union, PayPal, Money Gram
Payment terms: 100% payment before shipment
9. What express ways you can offer, can we use our own courier?
We can send goods to you by DHL, TNT, UPS, SF, EMS for freight prepard , also can use your own courier account to do the freight collect , just for your convenience.
