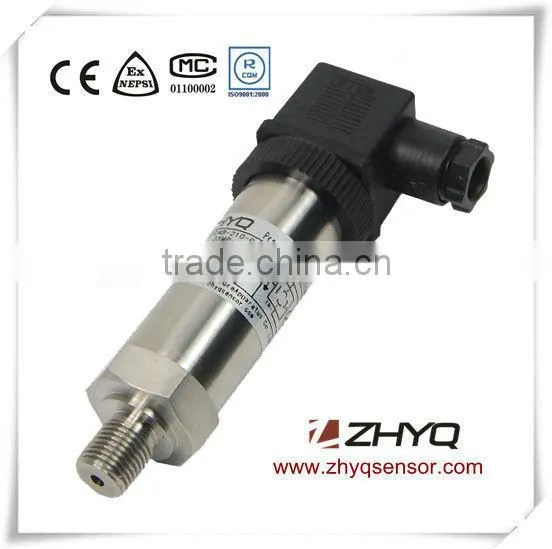

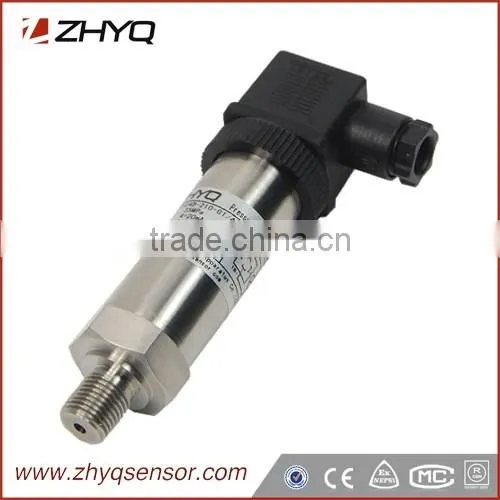

Help CenterStandard 4-20mA Strain Gauge Pressure Transmitter
Related Products
-
Clamp Mounting Flush Diaphragm Pressure Transmitter for Food MachineryUS$ 35 - 120MOQ: 1 Piece -
High Accuracy 4-20mA Diffused Silicon Pressure TransmitterUS$ 35 - 85MOQ: 1 Piece
-
4-20mA Explosion Proof Pressure Transmitter for Coal Mine ApplicationUS$ 35 - 85MOQ: 1 Piece
-
Flush Diaphragm 4-20mA Pressure Transmitter for High Density LiquidUS$ 35 - 75MOQ: 1 Piece
-
Standard Mv/v Output Strain Gauge China Pressure TransmitterUS$ 25 - 50MOQ: 1 Piece
Description
PT124B-210 series of pressure transmitters is the standard type , adopt strain gauge sensor chip technology , which suitable high pressure range , has been carefully designed to cover the majority of industrial applications with instruments readily available from stock. Compact design and robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment.
Feature
Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
various dimension design
Application
Petrochemical industry
Health and Medical
Food & Beverage Processing
Hydraulic pressure
Auto-controlling house
Constant pressure water supply
Liquid pressure measuring and controlling in automatization fields.
Specification
Name |
Standard 4-20mA strain gauge pressure transmitter |
Model |
PT124B-210 |
Range: |
0-50bar~6000bar |
Accuracy: |
0.5%FS; 1%FS |
Nonlinearity: |
0.2%FS |
Reliability: |
0.2%FS |
Output: |
4-20mA,0-10V, 0-5V, 1-5V,0.5-4.5V |
Input voltage: |
24VDC ( 4-20mA,0-10V, 0-5V ,1-5V output ) 5V ( 0.5-4.5 V output ) |
Operate Temperature: |
-20~80°C |
Compensated temperature: |
0~75°C |
Overload pressure: |
150%FS |
Medium material: |
stainless steel (SS304 or SS316) |
Electric connector: |
Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional |
Process connector: |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Housing Shell Diameter: |
22mm, 23mm , 26mm , 38mm optional |
Dimension
Remarks:
The standard accuracy is 0.5%, and size diameter is 26mm ,if you need special ( 22mm, 23mm ,26mm, ,38mm),when order ,please mention it , and we will send you the drawing to confirm .
Order Guide with * are required, with --- is optional
Model |
Range (bar) |
Output |
Screw Thread |
Electric connection |
Accuracy |
Diameter (mm) |
Other requirement |
PT124B-210 |
* |
* |
* |
* |
* |
* |
--- |
Example: PT124B-210-60Bar-4/20mA-G1/2-Hirschmann-0.5%-26 | |||||||
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
