Product Description

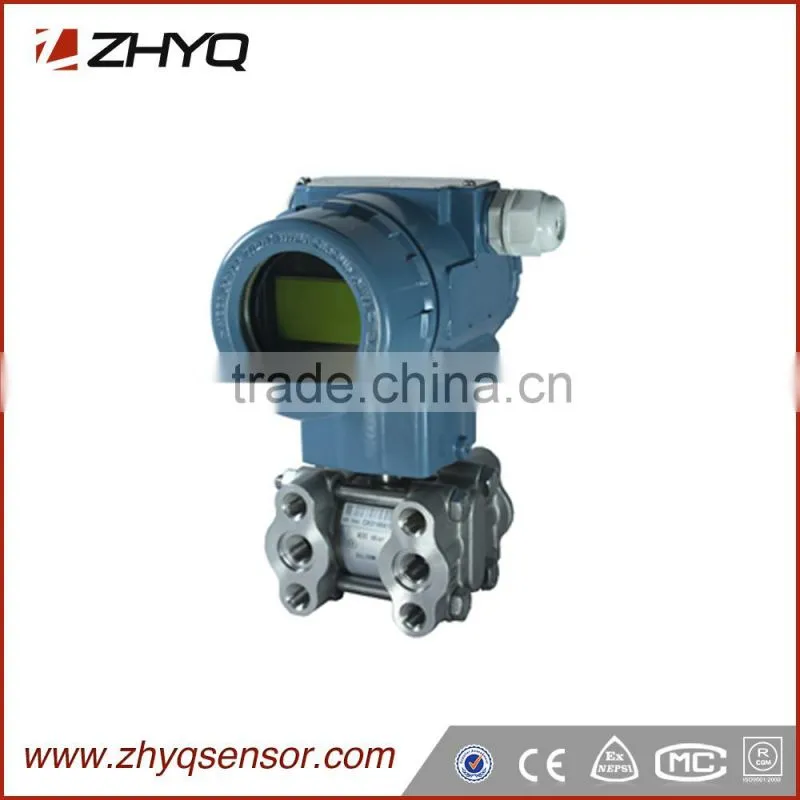

The Smart 4-20mA(HART) gauge/ absolute pressure transmitter PT124B-3051G and PT124B-3051A adopts modularity design, consist of pressure transducer module with integrated circuit adapter unit and precision AD conversion module and high intelligent Micro processing module. They are can be used to measure level, density, pressure of liquid, gas or steam, then convert it to 4-20mA CHART electrical signal output. And also feature remote setup and monitoring through communications with 375 terminal or Modem.
Feature
Adopts global leading high precision silicon transducer technology
Accuracy +/-0.075%
Advanced static pressure performance, error less than +/-0.1%/10MPa
Internal integrated high sensitivity temperature transducer, with perfect thermal drift
Fast response time
Product Parameter
Medium |
Gas, steam, liquid |
Measurement range (Non migration) |
0-0.1KPa-2MPa |
Accuracy |
+/-0.075%, +/-0.1% |
Wetted parts material |
SS316L, Hastelloy C |
Output |
2-wire 4-20mA, HART communication optional, linear output or square root output available |
Ambient temperature limited |
-40~85℃ -20~65℃ (with LCD display, fluorine rubber Oring)
|
Protection grade |
IP67 |
Electrical connector |
M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable |
Process connector |
1/4NPT female and 7/16 female on the cover flanges |
Mounting position effect |
Rotation in diaphragm plane has no effect. Tilting up to 90°will cause zero shift up to 0.4KPa, which can be corrected by the zero adjustment. |
Profile
Smart 4-20mA differential pressure transmitter
Electrical connector
Process connector
Factory Show
Product Application
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
Technical Team
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
