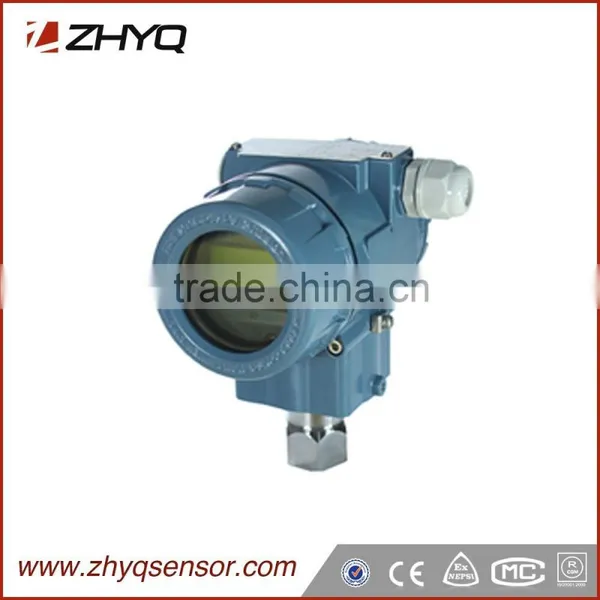

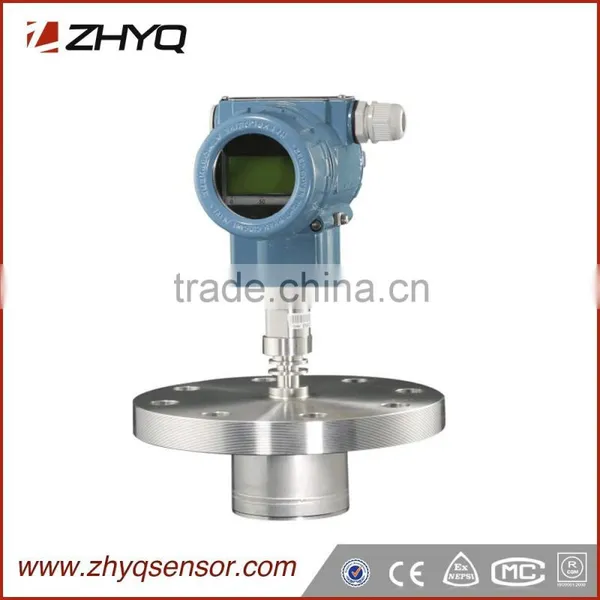

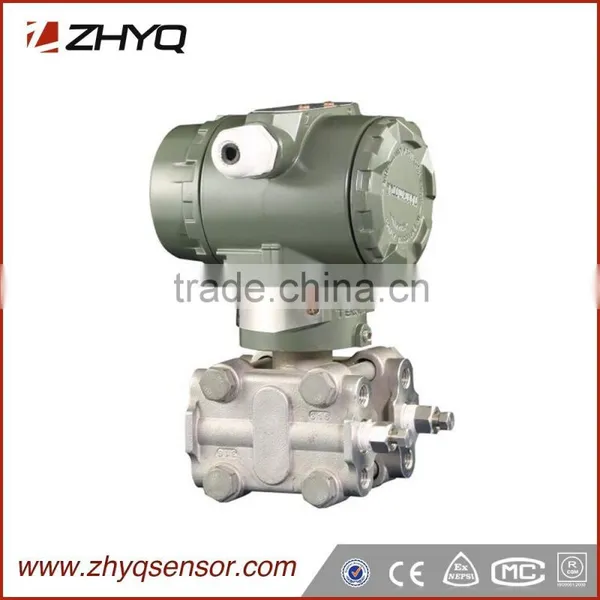

Help CenterPT124B-3051DR Smart Differential Remote Pressure Transmitter
Related Products
-
PT124B-3051DG(DA) Smart Differential Pressure Transmitter With 4-20mA Hart Protecol, Low Cost Pressure TransmitterUS$ 300 - 495MOQ: 1 Piece -
PT124B-3051C Differential Pressure TransmitterUS$ 300 - 495MOQ: 1 Piece
-
PT124B-3051DG(DA) Differential Gauge/absolute Pressure TransmitterUS$ 300 - 495MOQ: 1 Piece
-
PT124B-3051MD Micro Differential Pressure TransmitterUS$ 300 - 495MOQ: 1 Piece
-
PT124B-3051G(A) Gauge/absolute Pressure TransmitterUS$ 300 - 495MOQ: 1 Piece
Product Description

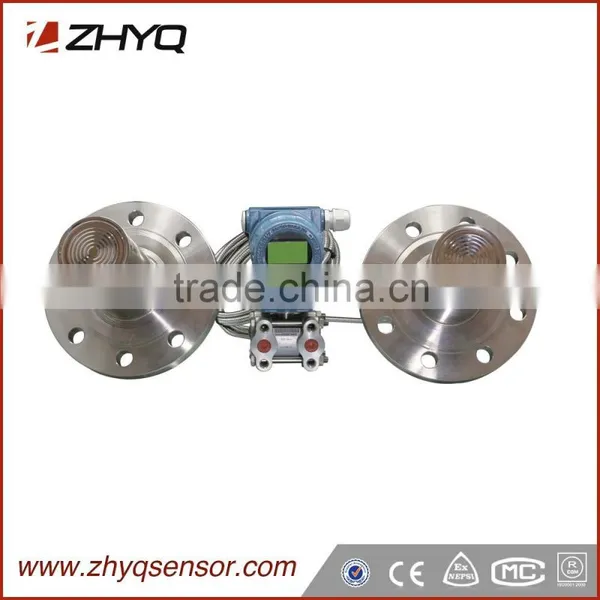

The diaphragm seal of PT124B-3051DR smart differential remote pressure transmitter is used to prevent medium from entering directly into the pressure-sensing assembly of the pressure transmitter. It is connected to the transmitter using capillary filled with fill fluid, such as silicon oil. The model PT124B-3051DR can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mA DC HART signal corresponding to the measured pressure differential. The model PT124B-3051DR also features remote setup and monitoring though communication with the model RST375 TERMINAL or RSM100 Modem. PT124B-3051DR with span ranges (non migration) is 0 to 1KPa to 2MPa, and the rated pressure of the liquid level flange is 1.6/4MPa, 6.4MPa, 10MPa, 150psi, 300psi or 600psi.
Feature
Adopts global leading high precision silicon transducer technology, strong anti-jamming performance
Accuracy +/-0.075%
Advanced stability and static pressure performance, error less than +/-0.1%/10MPa
Internal integrated high sensitivity temperature transducer, with perfect thermal drift
Fast response time
Product Parameter
Measurement parameter |
Differential pressure, liquid level |
Measurement range (Non migration) |
0-1KPa-2MPa |
Accuracy |
+/-0.1% |
Wetted parts material |
SS316L, Hastelloy C, tantalum |
Output |
2-wire 4-20mA, HART communication optional, linear output or square root output available |
Ambient temperature limited |
Lowest: depending on the filled liquid Highest: 85℃ -20~65℃ (with LCD display, fluorine rubber O-ring) |
Process medium temperature limited |
-30~400℃ |
Protection grade |
IP67 |
Electrical connector |
M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable |
Process connector |
7/16 female at the low pressure, compatible with ANSI or DIN at high pressure. Directly install. |
Mounting position effect |
The body and fixed on any position. The optimum state of the flange axle should be vertical, the position deviation may cause correctable zero shift. The electronic case can rotate 360 degree; the set screw can fix it at any position. For the double flange type remote transmitter, should keep the capillary parts and flange at the same ambient condition. The minimum bend radius is 75mm, forbid twining or twisting together. |
Profile
Electrical connector
Process connector
Factory Show
Product Application
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
Technical Team
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
Quality Control
Customer Photo
Packaging Process
Our Service
FAQ
